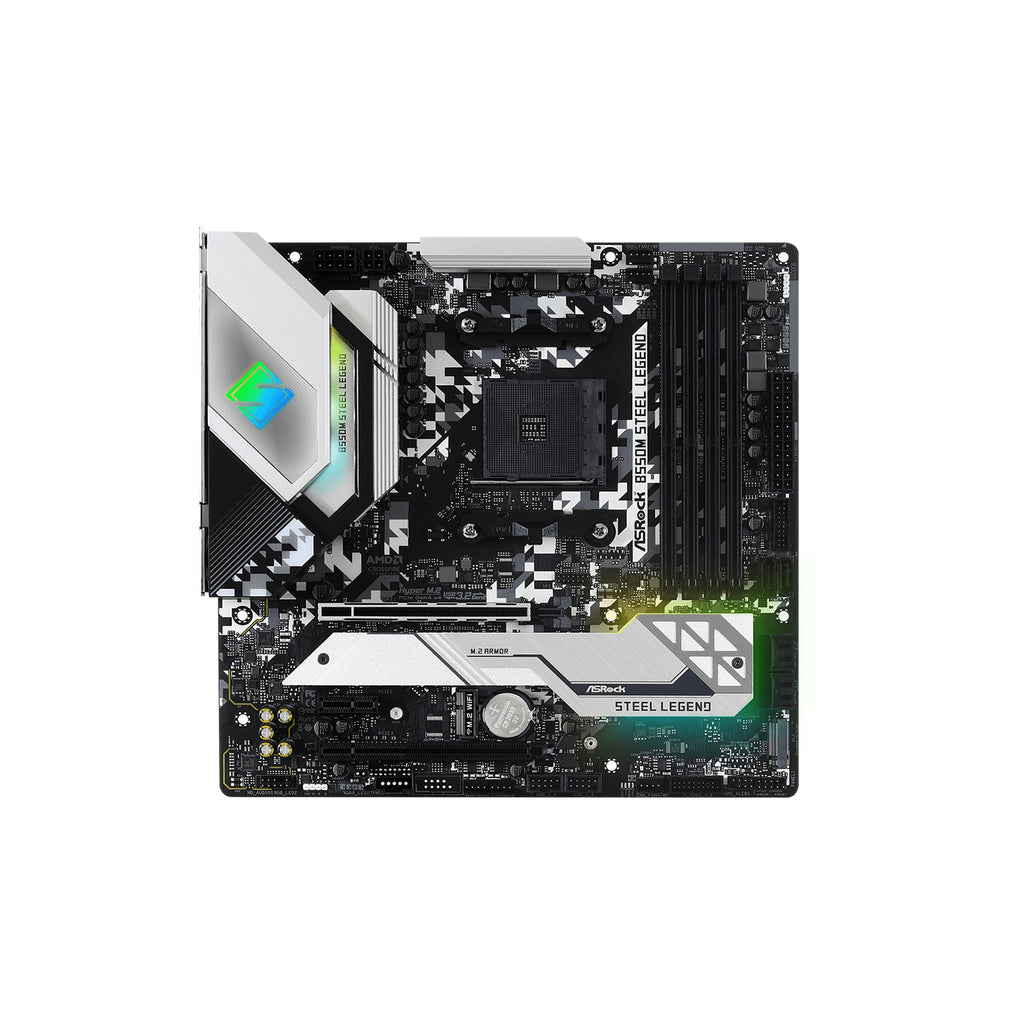

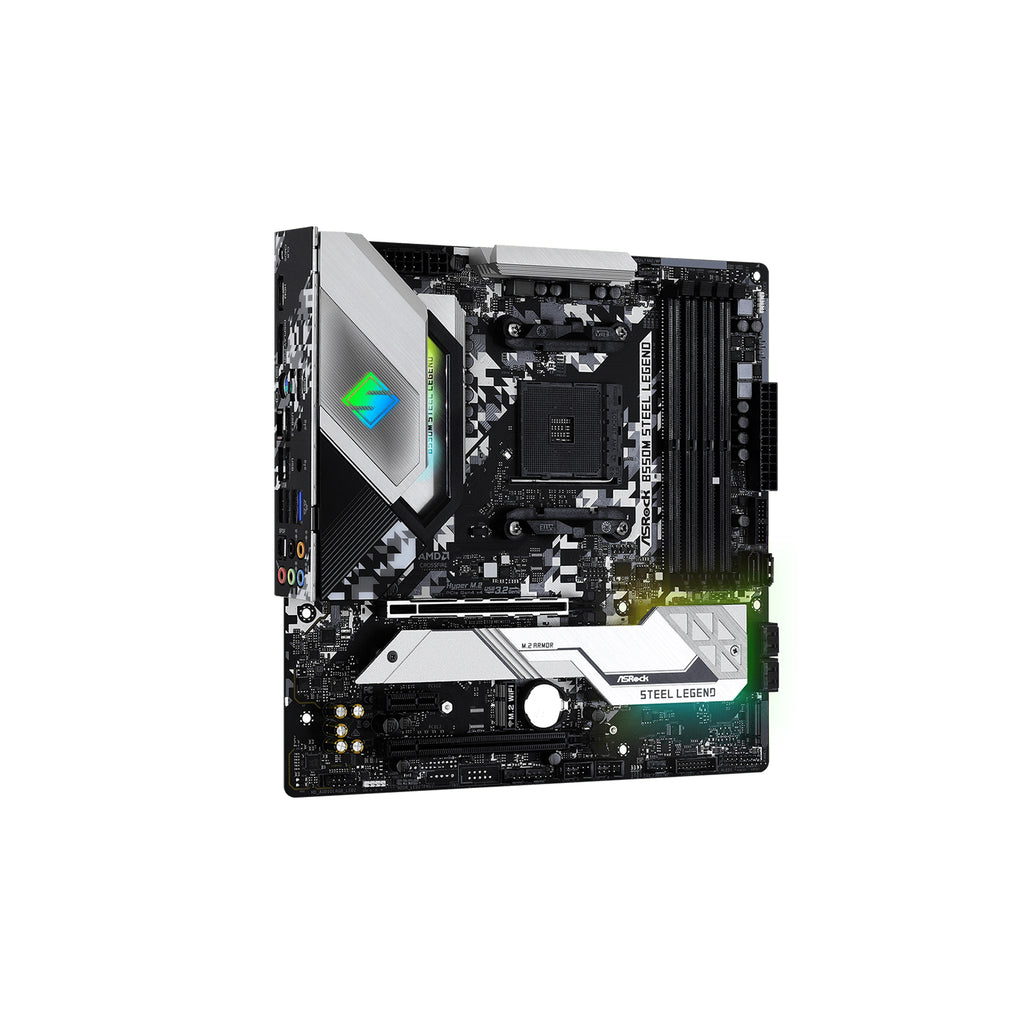

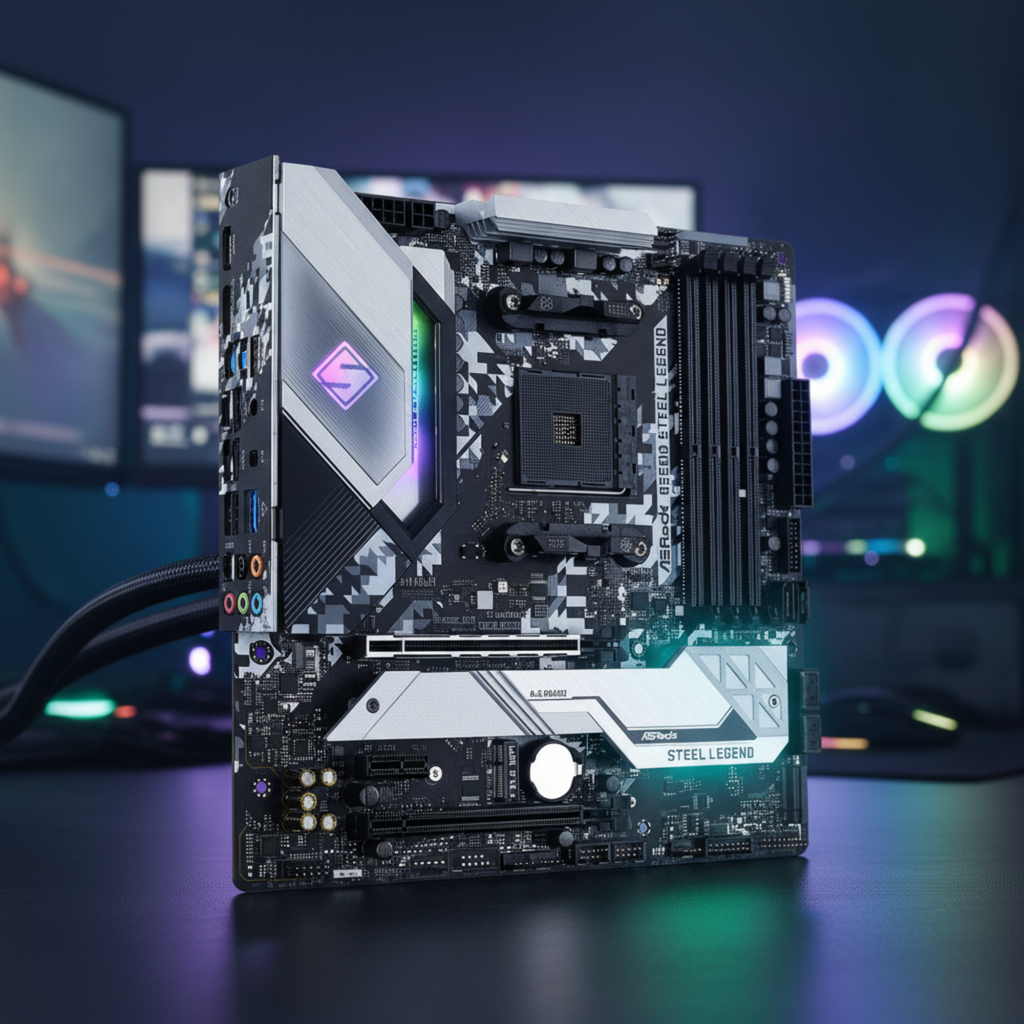

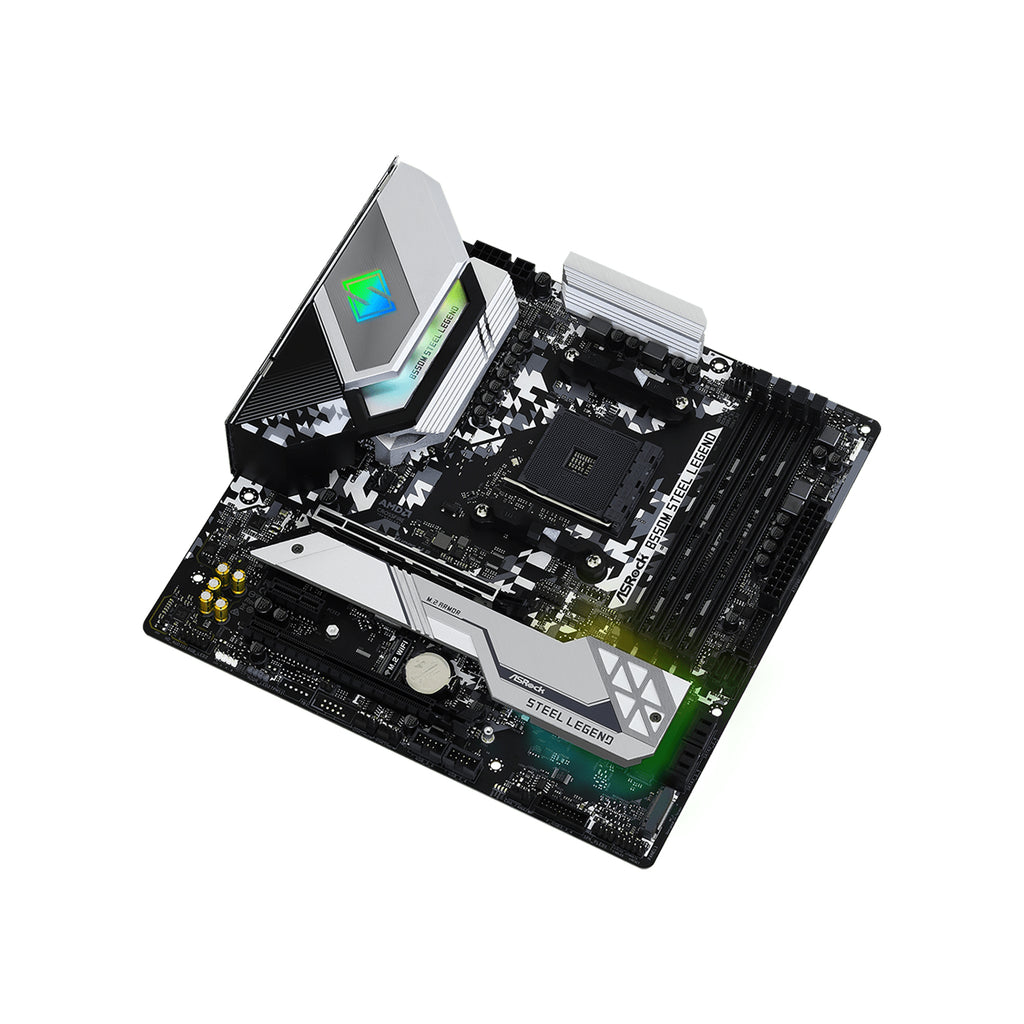

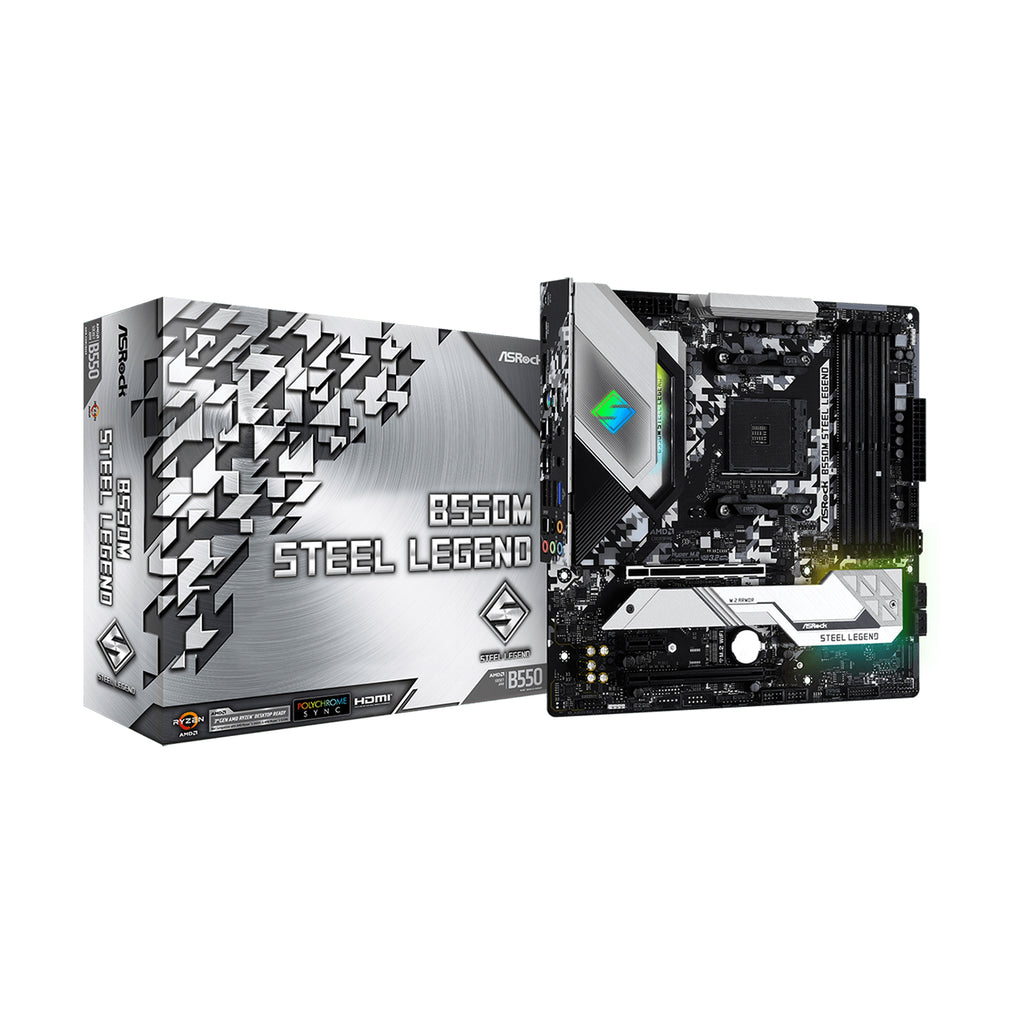

ASRock B550M Steel Legend Micro-ATX motherboard AMD AM4 DDR4 PCIe 4.0 gaming motherboard

ASRock B550M Steel Legend Micro-ATX Motherboard AMD AM4 DDR4 PCIe 4.0 Gaming PC Board

₱8,039.00 PHP ₱9,129.00 PHP

ASRock B550M Steel Legend Micro-ATX Motherboard AMD AM4 DDR4 PCIe 4.0 Gaming PC Board

Name: ASRock B550M Steel Legend Micro-ATX Motherboard AMD AM4 DDR4 PCIe 4.0 Gaming PC Board
Brand: ASROCK
SKU: Asrock MB-05
Price: 8039.00 PHP
Availability: InStock

₱8,039.00 PHP ₱9,129.00 PHP

1 left

About This Item

• Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors*
• 10 Power Phase Design, Dr. MOS
• Supports DDR4 4733+ (OC)
• 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1, 1 x M.2 Key E for WiFi
• Graphics Output Options: HDMI, DisplayPort
• AMD CrossFireX™
• 7.1 CH HD Audio (Realtek ALC1220/ALC1200 Audio Codec), Nahimic Audio
• 6 x SATA3, 1 x Hyper M.2 (PCIe Gen4x4), 1 x M.2 (PCIe Gen3x2 & SATA3)
• 2 x USB 3.2 Gen2 (Rear Type A+C), 8 x USB 3.2 Gen1 (4 Front, 4 Rear)
• Dragon 2.5G LAN

Our goal is for every customer to be totally satisfied with their purchase. If this isn't the case, let us know and we'll do our best to work with you to make it right.

3-Year Warranty

We will work quickly to ship your order as soon as possible. Once your order has been shipped, you will receive an email with further information. Delivery times vary depending on your location.

Recommended Accessories

Category	Feature	Specification
Unique Features	ASRock USB 3.2 Gen2	1 x Type-A (10 Gb/s) and 1 x Type-C (10 Gb/s)
	Super Alloy	XXL Aluminum Alloy Heatsink; Premium 60A Power Choke; 50A Dr.MOS; Nichicon 12K Black Caps; I/O Armor; Matte Black PCB; 2oz Copper PCB
	Steel Slot Gen4	Reinforced Gen4 PCIe x16 slot for heavy graphics cards
	Hyper M.2	PCIe Gen4x4 (64 Gb/s) support
	Diagnostics	ASRock POST Status Checker (PSC)
	Protection	Full Spike Protection (USB, Audio, LAN); 2.5G LAN
CPU	Socket	AMD AM4 (Ryzen 3000, 3000 G, 4000 G, 5000, and 5000 G-Series)
	Design	Digi Power design; 10 Power Phase design
Memory	Slots	4 x DDR4 DIMM (Dual Channel); Max 128GB
	Speed (Vermeer/Matisse)	DDR4 4533+(OC) down to 2133
	Speed (Cezanne/Renoir)	DDR4 4733+(OC) down to 2133
	Features	15μ Gold Contact in DIMM Slots; XMP Support; ECC (with PRO CPUs)
Graphics	Ports	HDMI 2.1 (4K@60Hz); DisplayPort 1.4 (5K@120Hz)
	Features	Supports HDR (High Dynamic Range) and HDCP 2.3
Audio	System	7.1 CH HD Audio (Realtek ALC1220/ALC1200); Nahimic Audio
	Premium	Premium Blu-ray Audio support; Gold Audio Jacks
LAN	Interface	2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)
Slots	PCIe Slots	1 x PCIe Gen4x16 (PCIE1); 1 x PCIe Gen3x4 (PCIE3); 1 x PCIe 3.0 x1
	M.2 Slot	1 x M.2 Socket (Key E) for WiFi/BT module
Storage	SATA	6 x SATA3 6.0 Gb/s (RAID 0, 1, 10)
	M.2	1 x Hyper M.2 (Gen4x4); 1 x M.2 (SATA3 6.0 Gb/s & Gen3x2)
Internal Headers	Connectors	1 x SPI TPM; 2 x RGB (12V); 2 x Addressable LED (5V)
	Power	24-pin ATX; 8-pin 12V; 4-pin 12V (Hi-Density)
	Cooling	1 x CPU Fan; 1 x CPU/Water Pump Fan (2A); 4 x Chassis/Water Pump Fans (2A)

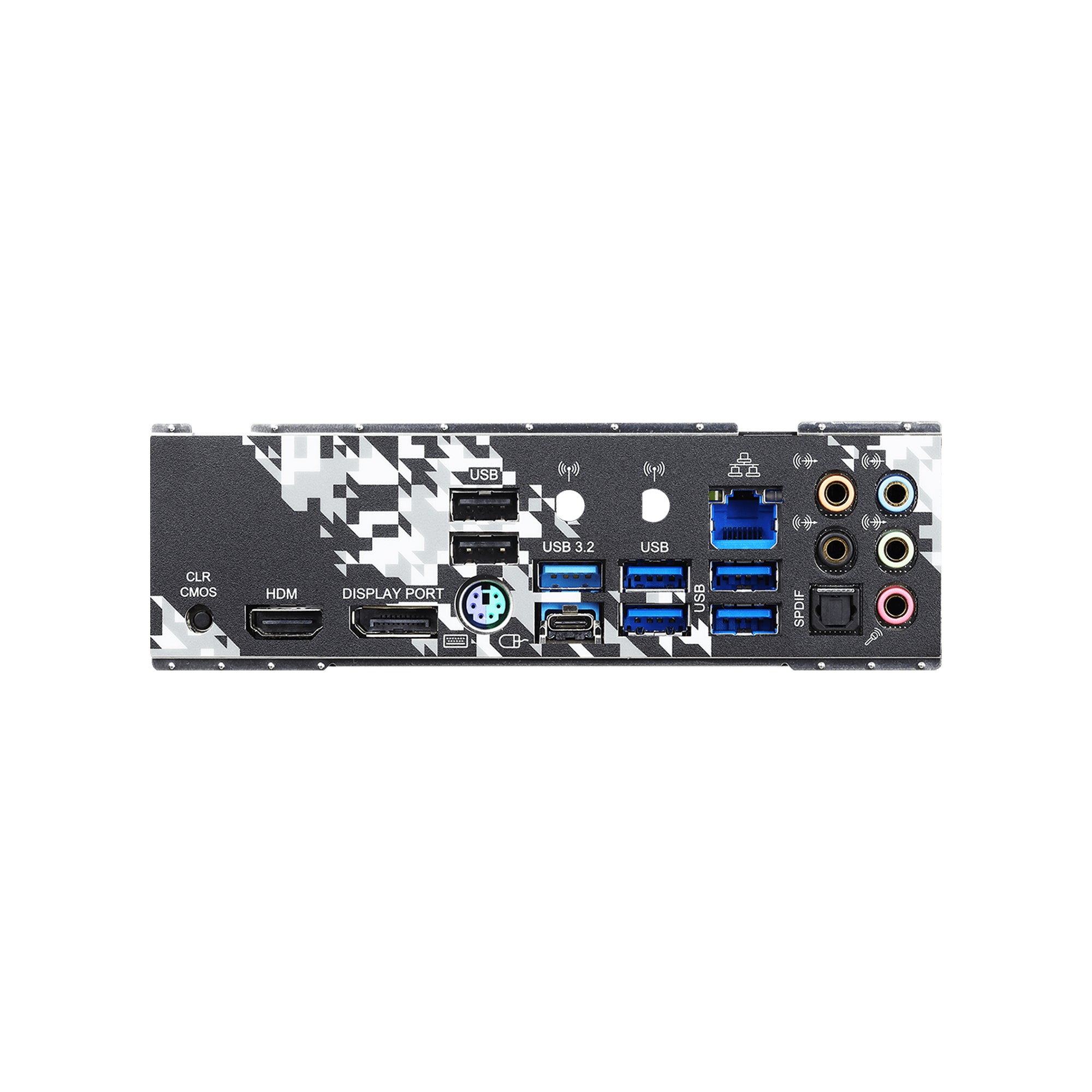

Rear Panel I/O	Ports	PS/2; HDMI; DP; Optical SPDIF; USB 3.2 Gen2 (A+C); 4x USB 3.2 Gen1; 2x USB 2.0; 2.5G LAN; Clear CMOS; Audio Jacks
Physical	Form Factor	Micro ATX (9.6-in x 9.6-in, 24.4 cm x 24.4 cm)
