| CPU |
Intel® Socket 1200for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors; Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**; **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types; Supports Intel® 14nm CPU |
| Chipset |
Intel® Z490 |
| Memory |
4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4700(O.C)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *; OptiMem III; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP) |
| Graphic |
1 x HDMI 1.4b; Integrated Graphics Processor |
| Multi-GPU Support |
Supports NVIDIA® 2-Way SLI® Technology; Supports AMD 3-Way CrossFireX™ Technology; Supports AMD 2-Way CrossFireX Technology |
| Expansion Slots |
2 x PCIe 3.0 x16 (x16 or dual x8) *1; 1 x PCIe 3.0 x16 (x4 mode) *2; 3 x PCIe 3.0 x1 |
| Storage |
1 x M.2_1 socket 3 (SATA & PCIE 3.0 x 4 mode)*3; 1 x M.2_2 socket 3 (PCIE 3.0 x 4 mode)*4; 1 x M.2_3 socket 3 (SATA & PCIE 3.0 x 4 mode); Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports; Intel® Optane™ Memory Ready; Support Raid 0, 1, 5, 10 |
| LAN |
Intel® I219-V 1Gb Ethernet; Marvell® AQtion AQC111C 5Gb Ethernet; ASUS LANGuard |
| Wireless Data |
Intel® Wi-Fi 6 AX201; 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax); up to 2.4Gbps max data rate; Supports dual band frequency 2.4/5 GHz; HT20/HT40/HT80/HT160 |
| Bluetooth |
Bluetooth v5.1* |
| Audio |
ROG SupremeFX7.1 Surround Sound High Definition Audio CODEC S1220*6; ESS™ ES9023 DAC + RC4580 OP AMP; Premium Japanese audio capacitors; SupremeFX Shielding™ Technology; Gold-plated jacks; Optical S/PDIF out |
| USB (Rear) |
4 x USB 3.2 Gen 2 (3 + Type-A +1 + USB Type-C®); 4 x USB 3.2 Gen 1 (4 x Type-A); 2 x USB 2.0 (2 x Type-A) |
| USB (Front) |
1 x USB 3.2 Gen 2 front panel connector; 2 x USB 3.2 Gen 1 (supports 2 ports); 4 x USB 2.0 (supports 4 ports) |
| Back I/O Ports |

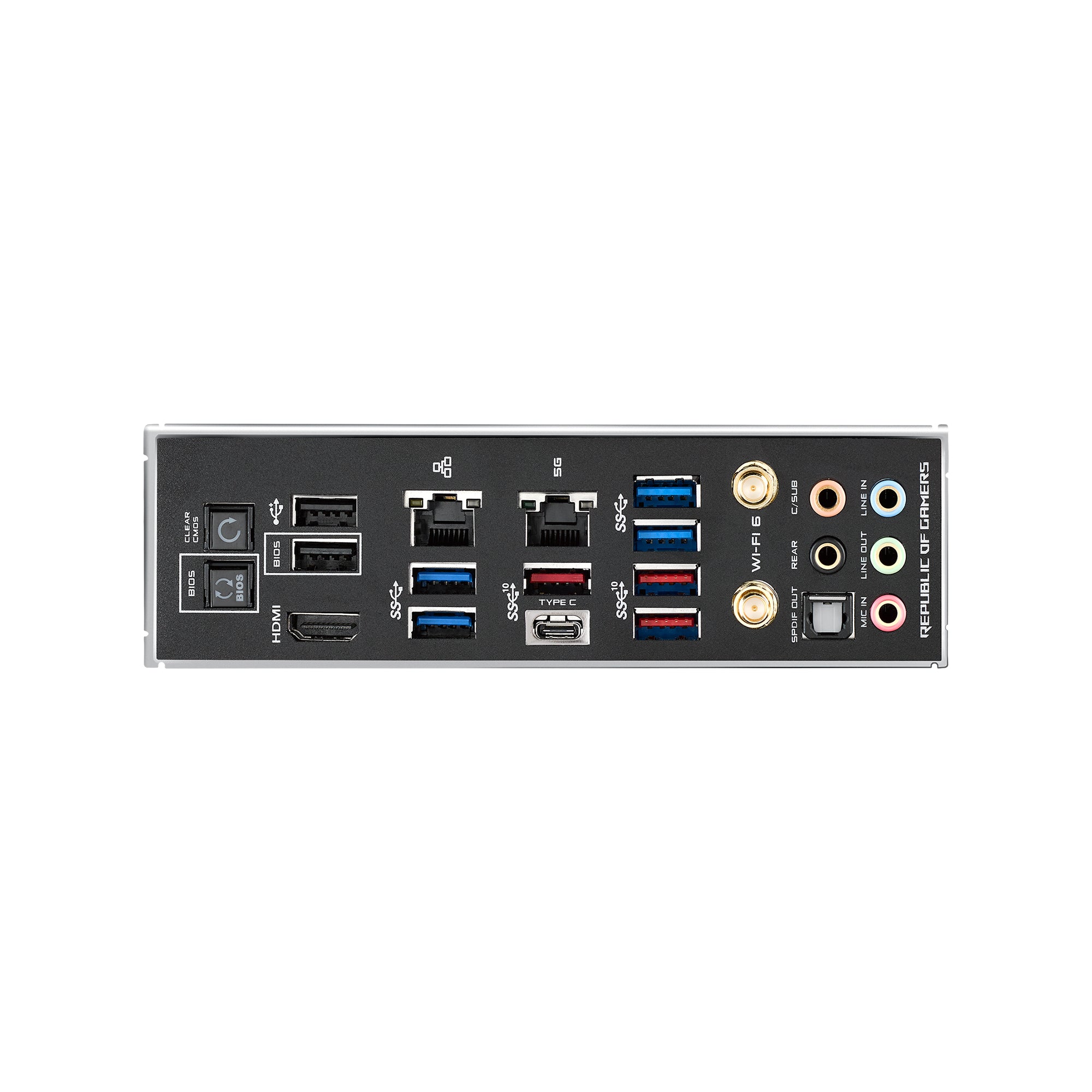

5Gb Ethernet; 1Gb Ethernet; 4 x USB 3.2 Gen 2; 4 x USB 3.2 Gen 1; 2 x USB 2.0; HDMI; Wi-Fi Module; BIOS FlashBack™; Clear CMOS; 5 x Gold-plated audio jacks; Optical S/PDIF out |
| Internal I/O |
3 x M.2 Socket 3; FlexKey; USB 3.2 Gen 1 TypeC™; Thunderbolt header; H_AMP fan; W_IN/OUT/FLOW headers; Start/ReTry buttons; W_PUMP+; AIO_PUMP; 2 x Addressable Gen 2; 2 x Aura RGB |
| Special Features |
ROG Extreme OC kit; Extreme Engine Digi+; ASUS Q-Design (Q-Code, Q-Connector, Q-DIMM, Q-LED, Q-Slot); Aluminum M.2 heatsink; Pre-mounted I/O shield; SafeSlot; AURA Sync |
| Software |
Armoury Crate (Aura Creator, Aura Sync); AI Suite 3 (5-way Optimization); RAMCache III; GameFirst VI; Sonic Studio III; Sonic Radar III; DTS® Sound Unbound; BullGuard (1-year) |
| BIOS |
256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability |
WOL by PME, PXE |
| Accessories |
2 x M.2 SSD screw package(s); 2 x M.2 Rubber Package(s); 1 ROG key chain; 1 x MOS Cooling kit (fan bracket and 40mm x 40mm fan); Addressable LED extension cable; 1 x ROG logo plate sticker; 1 x ROG big sticker; 1 x Q-Connector; 1 x Wi-Fi Antenna(s); 1 x Extension Cable for RGB strips (80 cm); 1 x ROG Thank you card; 4 x SATA 6Gb/s cable(s); User´s manual; 1 x Supporting DVD |
| OS |
Windows® 10 64-bit |
| Form Factor |
ATX Form Factor; 12 inch x 9.5 inch ( 30.5 cm x 24.4 cm ) |
| Notes |
*1 PCIe bifurcation support; *2 PCIEX16_3 shares bandwidth with M.2_2; *3 M.2_1 SATA mode disables SATA6G_2; *4 M.2_2 x4 mode disables PCIEX16_3; *5 M.2_3 disables SATA6G_56; *6 32-Bit/192kHz not for 7.1 |
