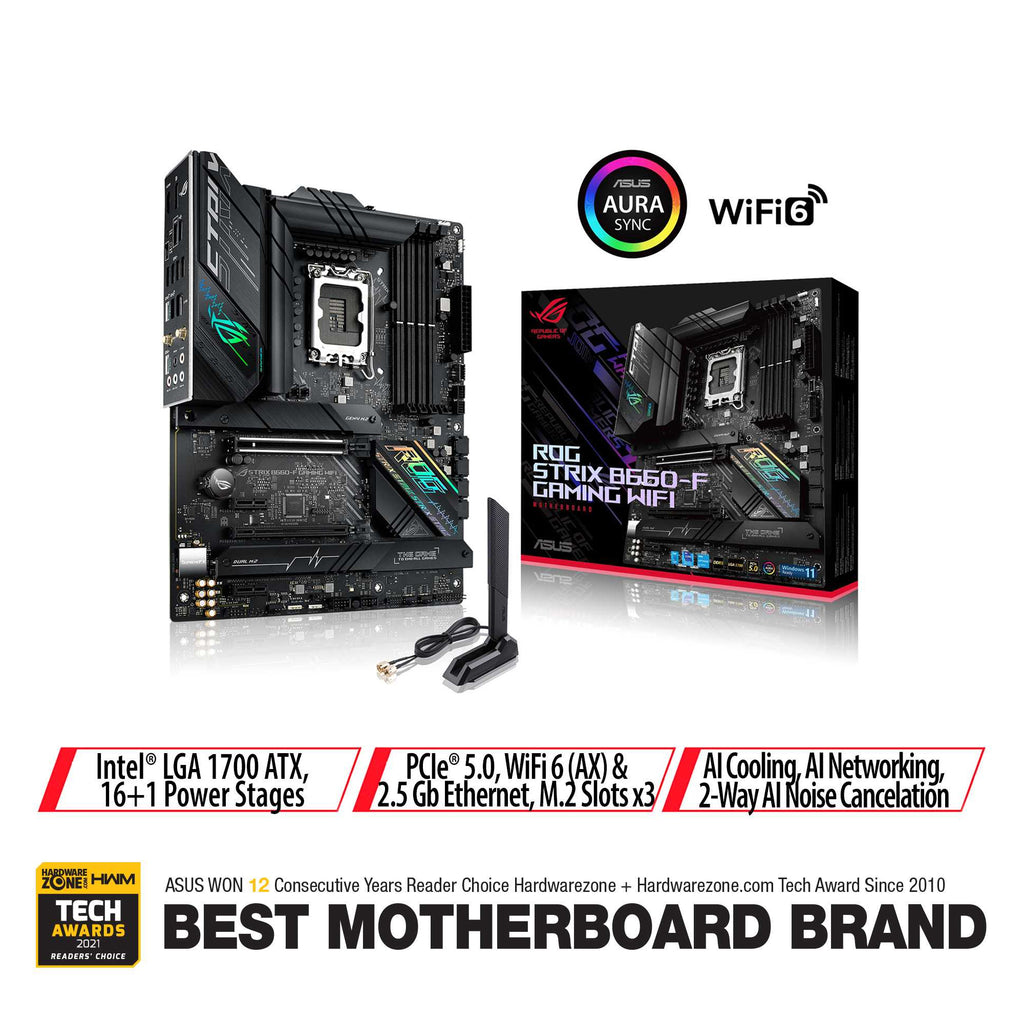

ASUS ROG Strix B660-F Gaming WiFi ATX Motherboard

₱13,499.00 PHP ₱14,999.00 PHP

ASUS ROG Strix B660-F Gaming WiFi ATX Motherboard

Name: ASUS ROG Strix B660-F Gaming WiFi ATX Motherboard
Brand: ASUS
SKU: ASUS-138C
Price: 13499.00 PHP
Availability: OutOfStock

₱13,499.00 PHP ₱14,999.00 PHP

Out of stock

About This Item

• Intel® LGA 1700 Socket: Ready for 14th, 13th, and 12th Gen Intel® Core™ processors, plus Pentium® Gold and Celiac® models.

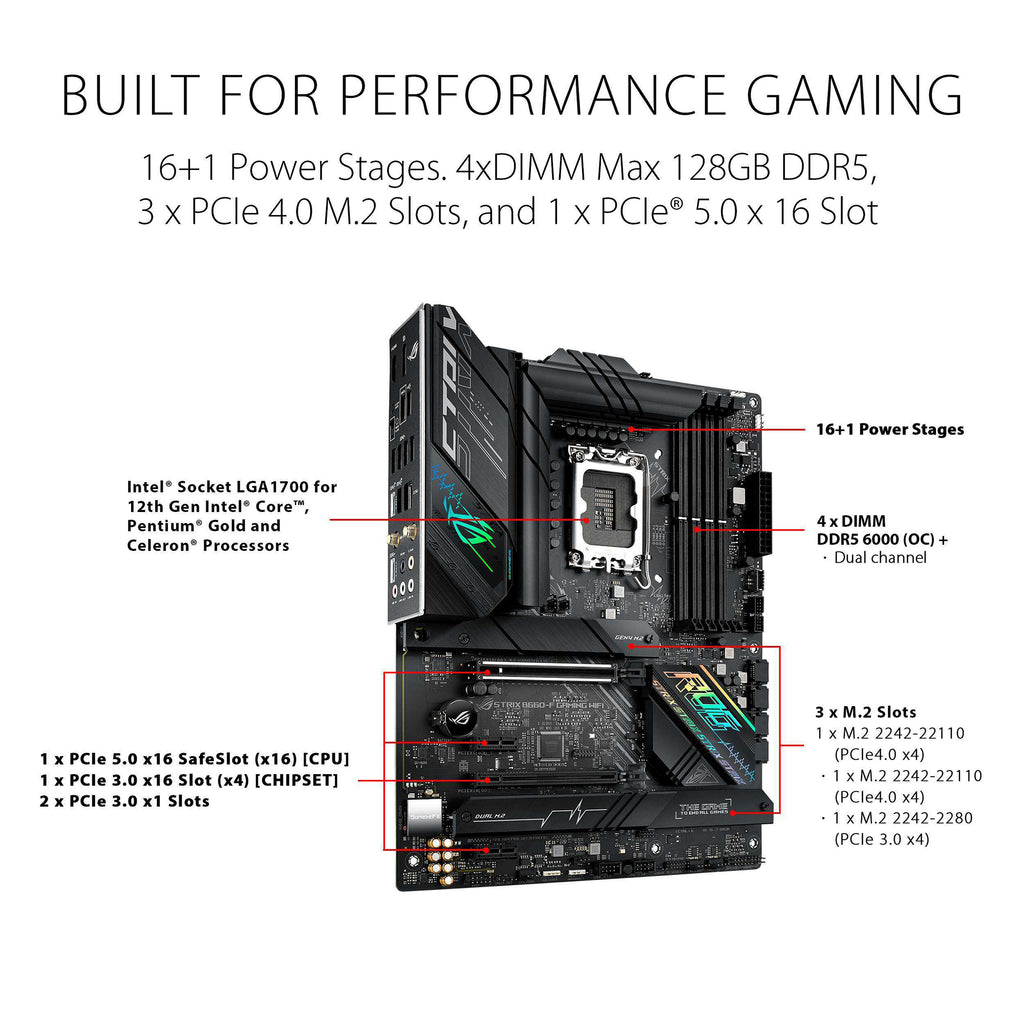

• Optimal Power Solution: 16+1 power stages with ProCool power connectors, high-quality alloy chokes, and durable capacitors to support multi-core performance.

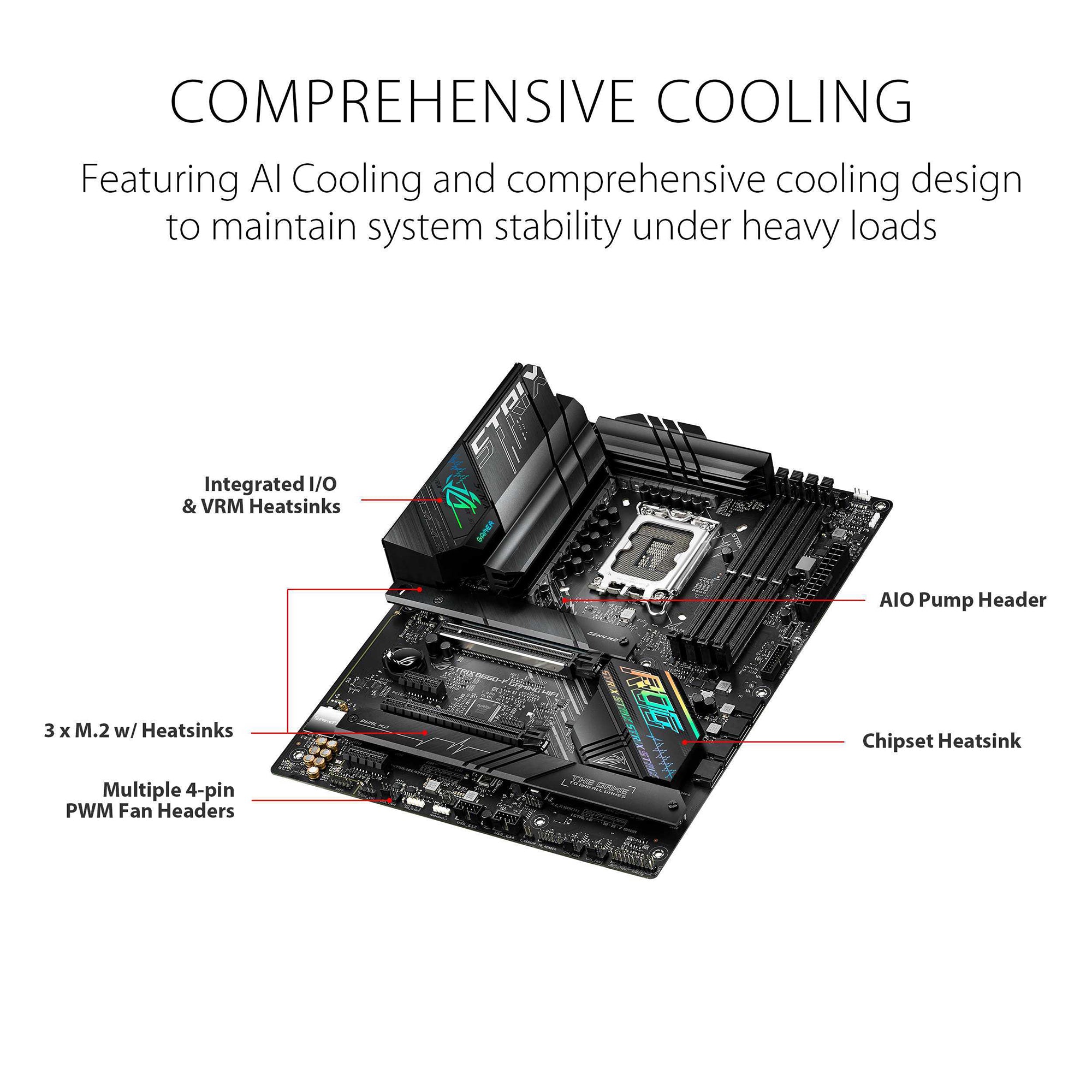

• Optimized Thermal Design: Integrated I/O cover and VRM heatsinks with high-conductivity pads, three onboard M.2 heatsinks, and M.2 backplates.
• High-Performance Networking: On-board Intel® WiFi 6 (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard for lightning-fast connectivity.
• Best Gaming Connectivity: Supports HDMI® 2.1 and DisplayPort™ 1.4 output, triple M.2 slots, and ultra-fast USB 3.2 Gen 2x2 Type-C®.
• Intelligent Control: ASUS-exclusive AI Cooling, AI Networking, and Two-Way AI Noise Cancelation to simplify setup and improve system performance.
• DIY-Friendly Design: Features M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack™ button, and a dedicated Clr CMOS button.

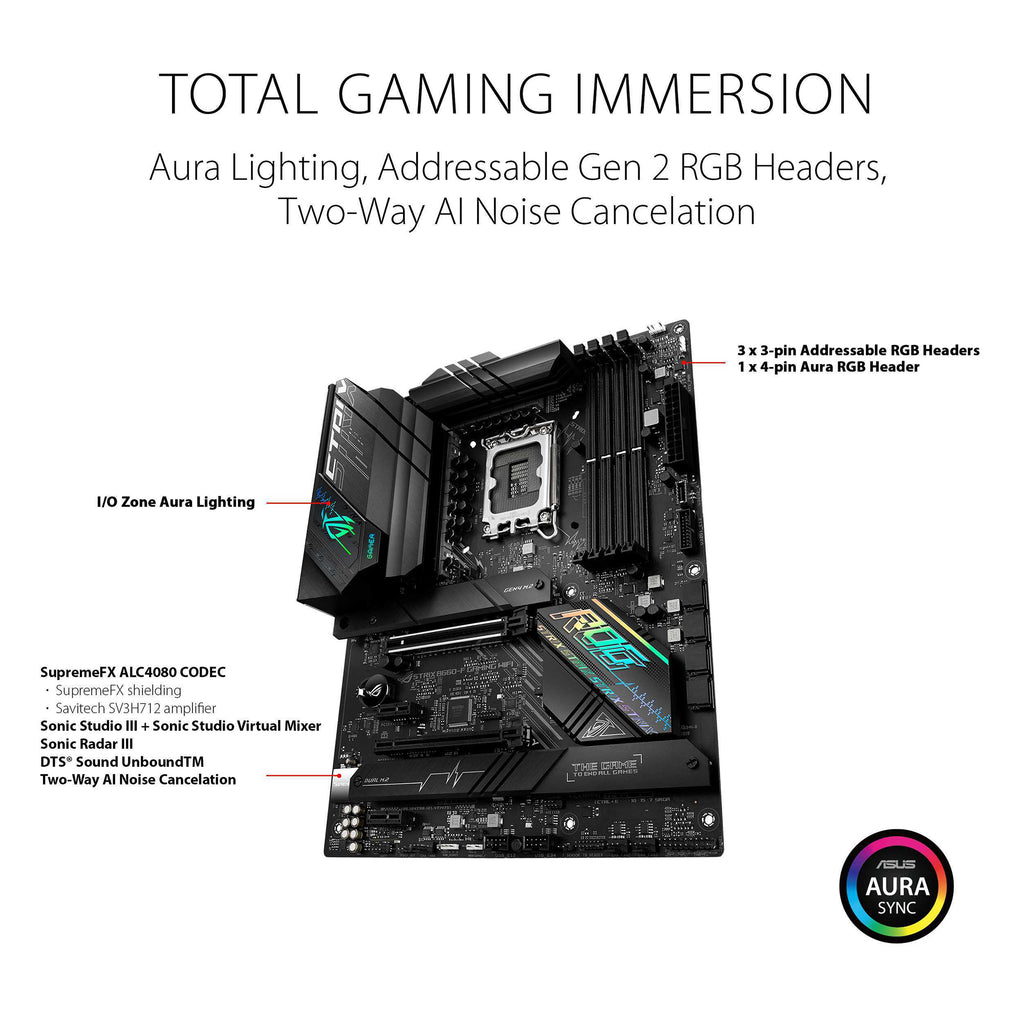

• Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including one standard RGB header and three addressable Gen 2 RGB headers.
• Industry-Leading Gaming Audio: ALC4080 codec with Savitech SV3H712 amplifier, DTS® Sound Unbound™, and Sonic Studio III for immersive sound.
• Renowned Software: Bundled with AIDA64 Extreme (60-day free trial) and an intuitive UEFI BIOS dashboard with integrated MemTest86.

Our goal is for every customer to be totally satisfied with their purchase. If this isn't the case, let us know and we'll do our best to work with you to make it right.

3-Year Warranty

We will work quickly to ship your order as soon as possible. Once your order has been shipped, you will receive an email with further information. Delivery times vary depending on your location.

Recommended Accessories

Category	Specification
CPU	Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors; Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*
Chipset	Intel® B660 Chipset
Memory	4 x DIMM, Max. 196GB, DDR5 6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP); OptiMem II
Graphics	1 x DisplayPort (Support 8K@60Hz as specified in DP 1.4); 1 x HDMI® port* (Support 4K@60Hz as specified in HDMI 2.1)
Expansion Slots	1 x PCIe 5.0 x16 slot (supports x16 mode); Intel® B660 Chipset: 1 x PCIe 3.0 x16 slot (supports x4 mode)**, 2 x PCIe 3.0 x1 slots
Storage	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*; Intel® Core™ Processors: M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode); Intel® B660 Chipset: M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4)
Ethernet	1 x Intel® 2.5Gb Ethernet; ASUS LANGuard
Wireless & BT	Wi-Fi 6; 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax); Supports 2.4/5GHz frequency band; Bluetooth v5.2
USB (Rear)	1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®); 1 x USB 3.2 Gen 2 ports (1 x Type-A); 5 x USB 3.2 Gen 1 ports (4 x Type-A, 1 x USB Type-C®); 2 x USB 2.0 ports (2 x Type-A)
USB (Front)	1 x USB 3.2 Gen 2 connector (supports USB Type-C®); 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio	ROG SupremeFX 7.1 Surround Sound ALC4080; Impedance sense; 120 dB SNR playback / 113 dB SNR recording; Up to 32-Bit/384 kHz playback; Savitech SV3H712 AMP; Premium capacitors; Audio cover

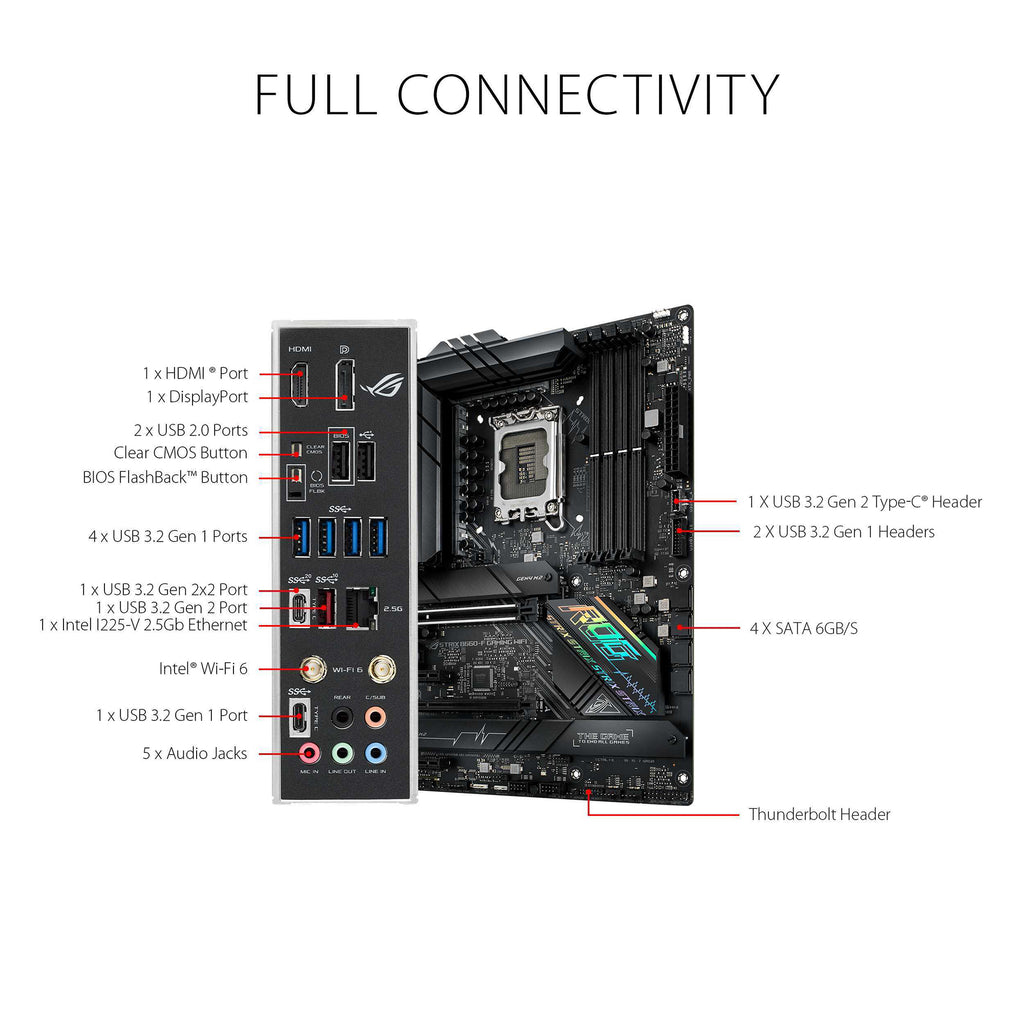

Back Panel I/O	1 x USB 3.2 Gen 2x2 (Type-C®); 1 x USB 3.2 Gen 2 (Type-A); 5 x USB 3.2 Gen 1; 2 x USB 2.0; 1 x DisplayPort; 1 x HDMI®; 1 x Wi-Fi Module; 1 x Intel® I225-V 2.5Gb Ethernet; 5 x Audio jacks; 1 x BIOS FlashBack™; 1 x Clear CMOS
Internal I/O	1 x CPU Fan; 1 x CPU OPT Fan; 1 x AIO Pump; 4 x Chassis Fan; 1 x 24-pin Main Power; 1 x 8-pin +12V; 1 x 4-pin +12V; 3 x M.2 slots (Key M); 4 x SATA 6Gb/s; 3 x Addressable Gen 2; 1 x AURA RGB; 1 x Thunderbolt™ header
Special Features	Extreme Engine Digi+ (5K Black Metallic Capacitors); ASUS Q-Design (M.2 Q-Latch, Q-DIMM, Q-LED, Q-Slot); ASUS Thermal Solution (M.2 heatsink backplate, M.2 heatsink); ASUS EZ DIY (BIOS FlashBack™, Clear CMOS, Pre-mounted I/O shield, SafeSlot, SafeDIMM)
Software	GameFirst VI; ROG CPU-Z; Sonic Studio III; Sonic Radar III; DTS® Sound Unbound; Armoury Crate (AURA Creator, AURA Sync, Fan Xpert 4); AI Suite 3; MyAsus; MemTest86
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	4 x SATA 6Gb/s cables; 1 x ASUS Wi-Fi moving antennas; Cable ties pack; M.2 Rubber Package; M.2 Q-Latch packages; ROG key chain; ROG Strix stickers/thank you card; Support DVD; User manual
OS	Windows® 10 64-bit, Windows® 11 64-bit
Form Factor	ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Note	*** PCIEX16(G3) shares bandwidth with PCIEX1(G3)_1 and PCIEX1(G3)_2. When either PCIEX1(G3) slot is enabled, PCIEX16(G3) runs at x2 mode.

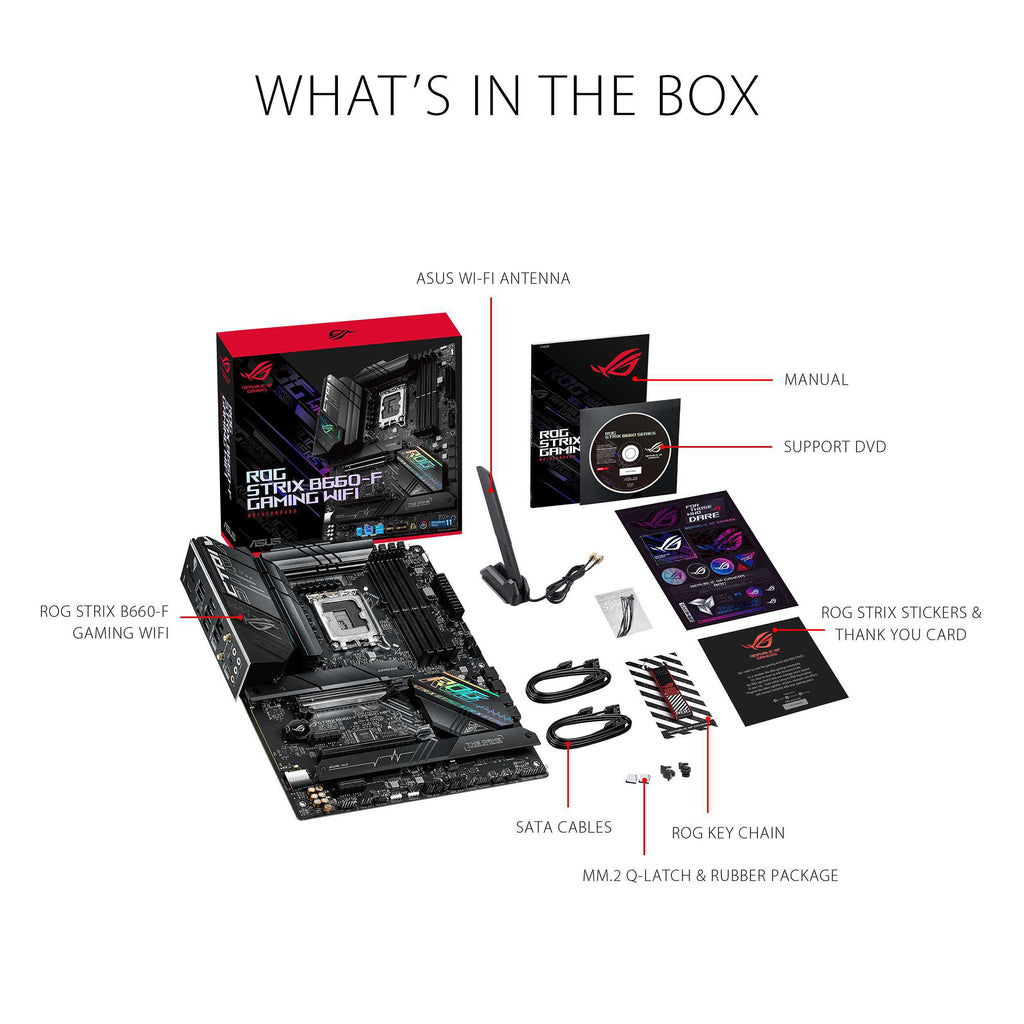

• 4 x SATA 6Gb/s Cables
• 1 x ASUS Wi-Fi Moving Antennas
• 1 x Cable Ties Pack
• 1 x M.2 Rubber Package
• 1 x M.2 Q-Latch Package
• 1 x M.2 Q-Latch Package (for M.2 Backplate)
• 1 x ROG Key Chain
• 1 x ROG Strix Stickers
• 1 x ROG Strix Thank You Card
• 1 x Support DVD (Installation Media)
• 1 x User Manual (Documentation)
