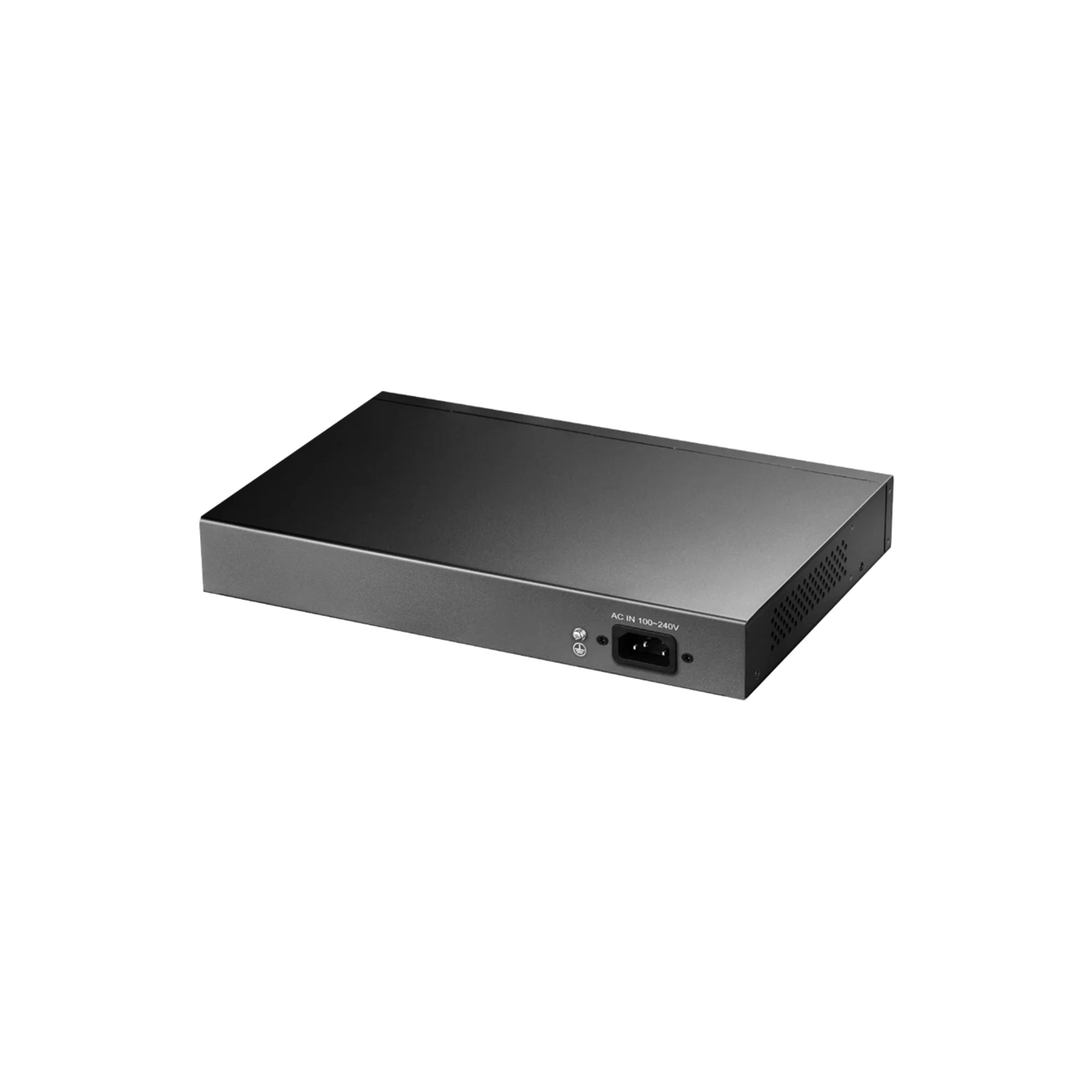

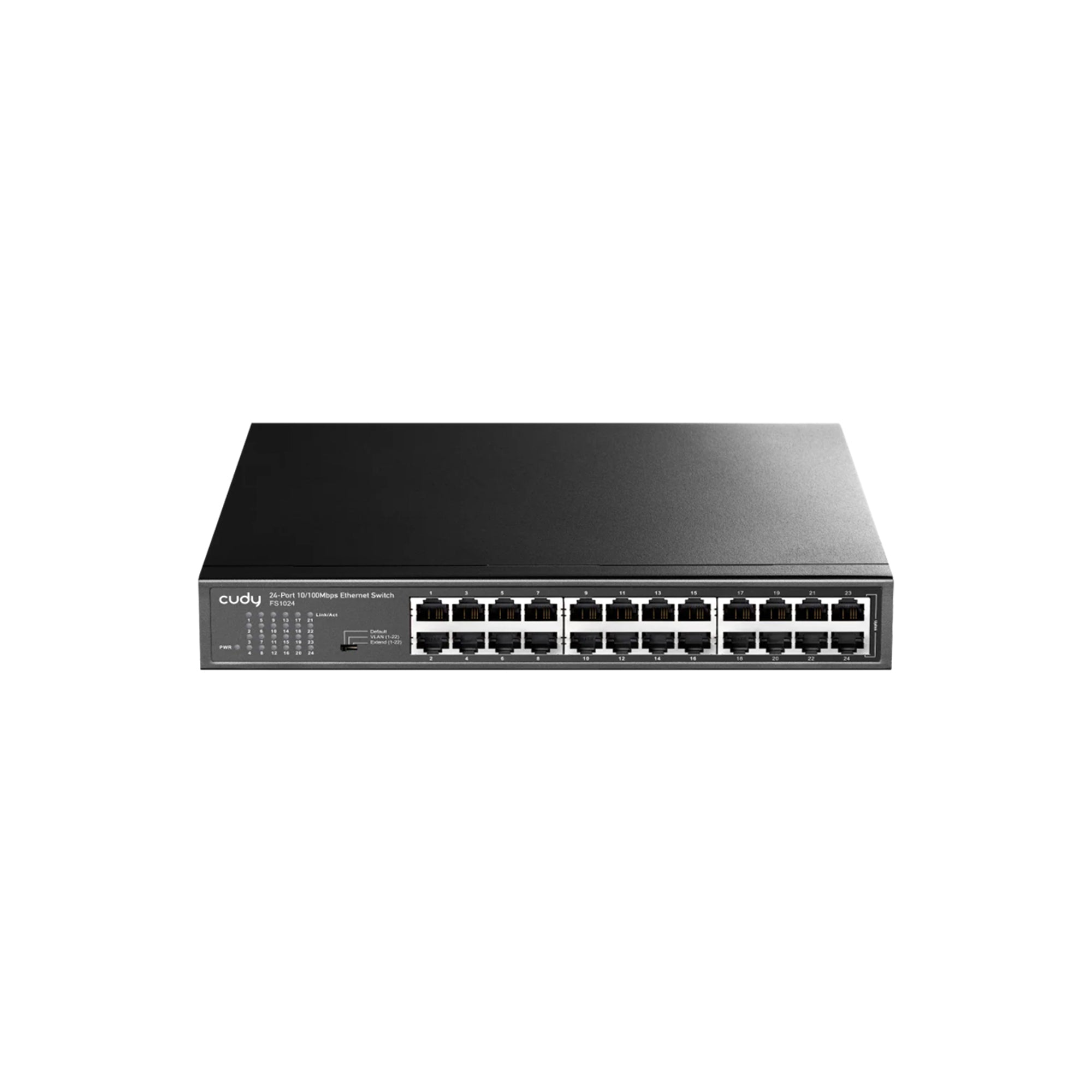

CUDY FS1024 24-Port 10/100 Mbps Ethernet Switch – Rackmount Fast Ethernet LAN Switch for Office, CCTV & Network Expansion

Name: CUDY FS1024 24-Port 10/100 Mbps Ethernet Switch – Rackmount Fast Ethernet LAN Switch for Office, CCTV & Network Expansion
Brand: CUDY
SKU: Cudy-S_006
Price: 1791.00 PHP
Availability: InStock

₱1,791.00 PHP ₱2,239.00 PHP

1 left

About This Item

A 24-FE switch with VLAN/Extend functions, and a fanless cooling system.

• 24× Fast Ethernet Ports
• Default/VLAN/Extend Modes
• Extend for 250 meters Transmission
• VLAN for Clients Isolation
• 270×182×44 mm (10.63×7.17×1.73'')

Our goal is for every customer to be totally satisfied with their purchase. If this isn't the case, let us know and we'll do our best to work with you to make it right.

1-Year Warranty

We will work quickly to ship your order as soon as possible. Once your order has been shipped, you will receive an email with further information. Delivery times vary depending on your location.

Recommended Accessories

Category	Component	Specification
Interfaces	RJ45 Ports	24× 10/100 Mbps (Shielded)
	Hardware Modes	VLAN, Default, Extend (via DIP Switch)
	LEDs	Power, Link/ACT (for each of the 24 ports)
Performance	Switching Capacity	4.8 Gbps
	Forwarding Rate	3.57 Mpps
	MAC Address Table	8,192 entries
	Jumbo Frame	2 KB
	Packet Buffer	2 Mbit
Special Modes	VLAN Mode	Ports 1–22 isolated from each other; only talk to uplink
	Extend Mode	Ports 1–22 capped at 10 Mbps for 250m transmission
Power	Input / Method	AC Inlet (Internal Power Supply) / 90-260V
	Consumption	Max: 3.0W; Idle: 1.6W
Reliability	Surge Protection	Level 4 Surge (4kV) on RJ45 and Power
	ESD Protection	Contact: 6kV; Air: 8kV
	Grounding	3-Prong Plug + Dedicated Grounding Point
Mechanical	Dimensions	270 × 182 × 44 mm (1U Height)
	Weight	997 g (approx. 1.0 kg)
	Casing / Install	Metal; Desktop or Rackmount via Brackets
