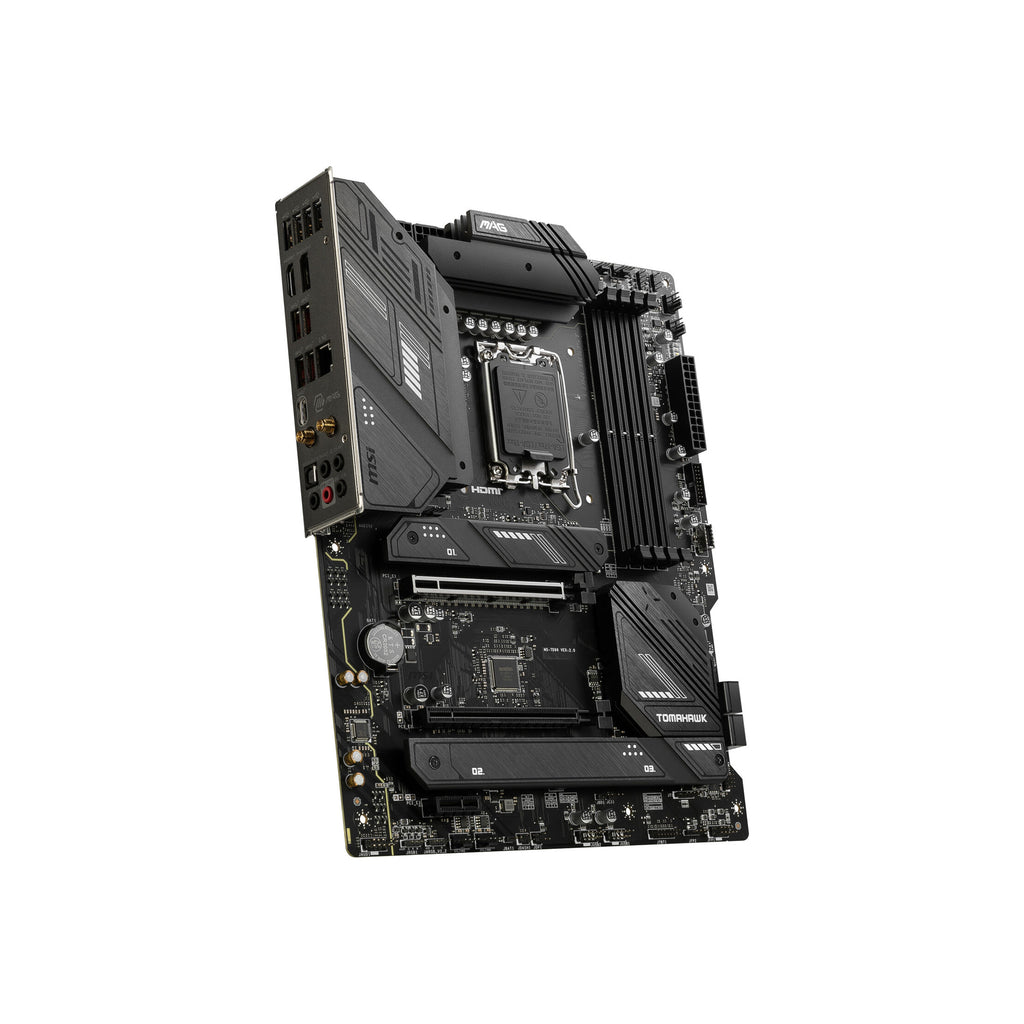

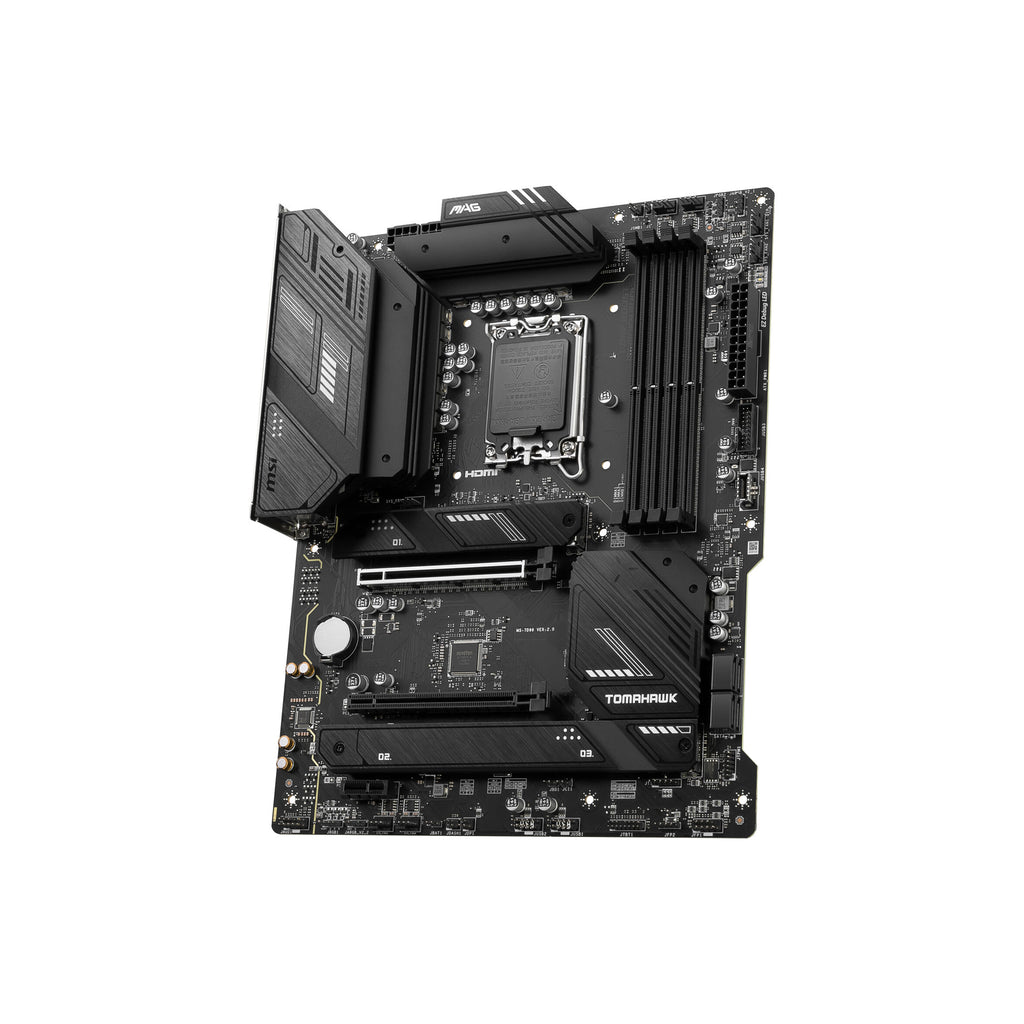

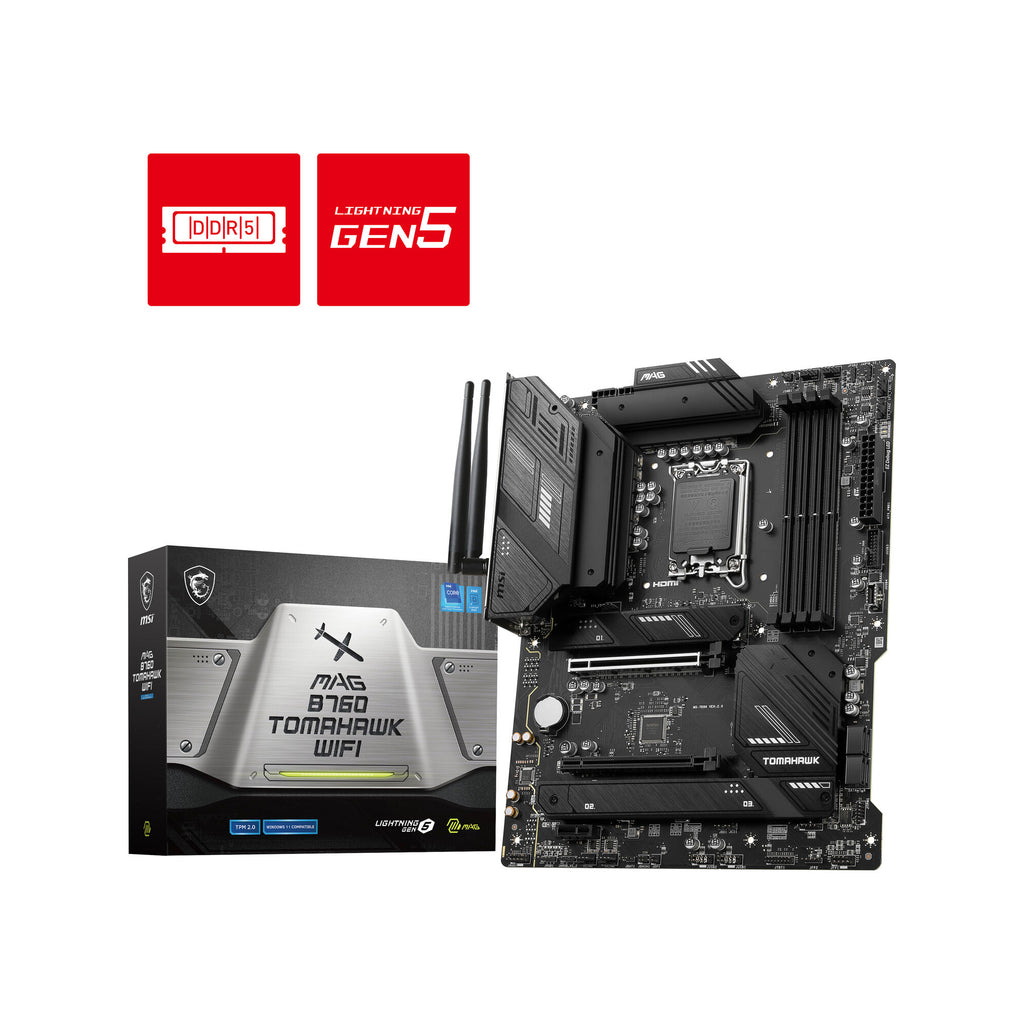

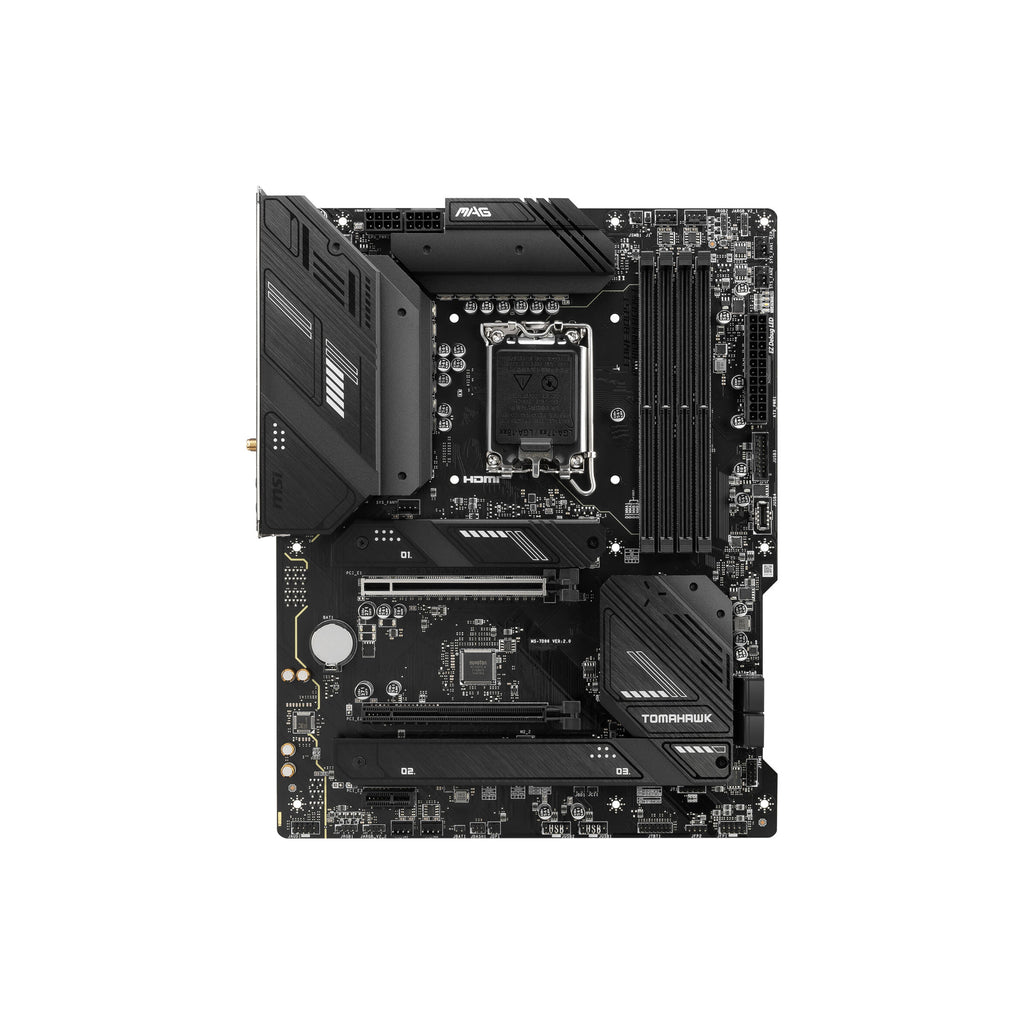

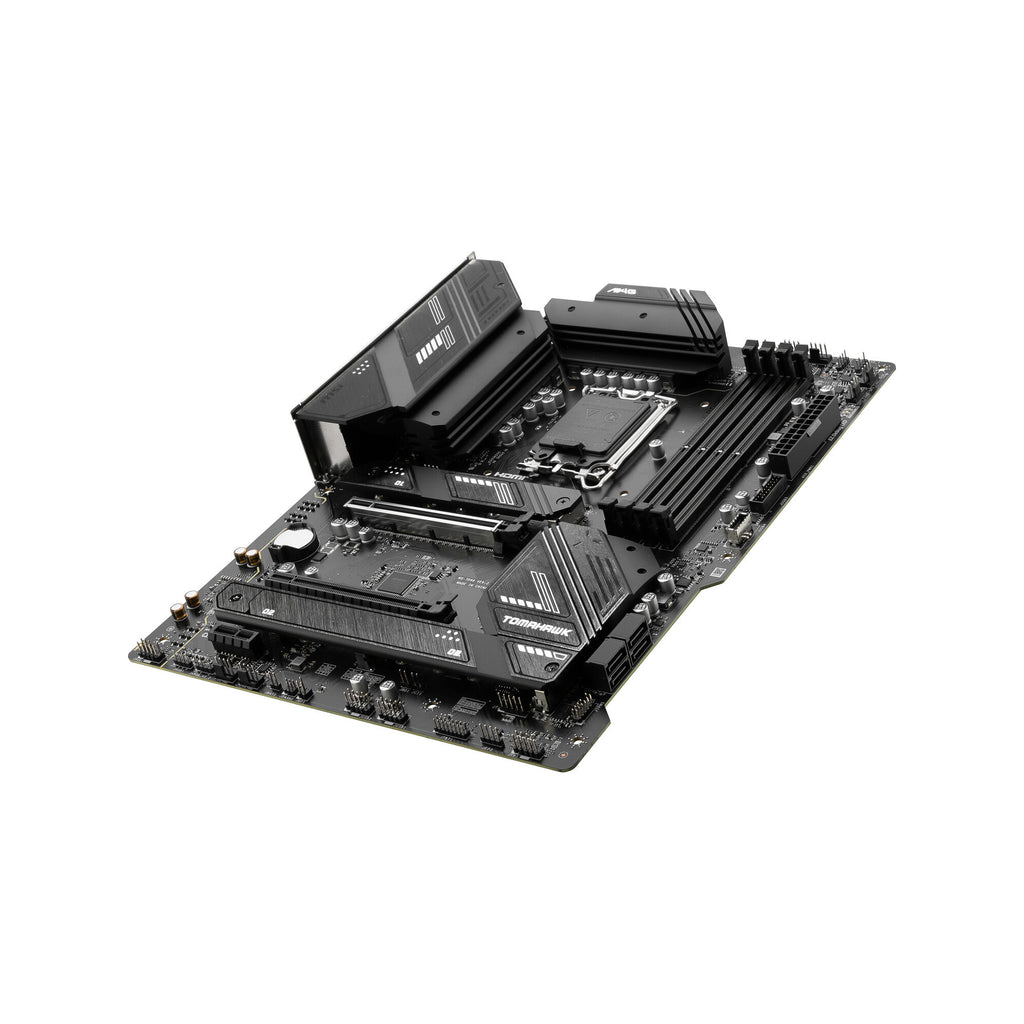

MSI MAG B760 Tomahawk WiFi ATX Gaming Motherboard

Name: MSI MAG B760 Tomahawk WiFi ATX Gaming Motherboard
Brand: MSI
SKU: MSI MB-44D
Price: 14269.00 PHP
Availability: OutOfStock

₱14,269.00 PHP ₱15,849.00 PHP

Out of stock

About This Item

• Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
• Supports DDR5 Memory, up to 7000+(OC) MHz
• Enhanced Power Design: 12+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
• Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
• Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
• AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
• High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material

Our goal is for every customer to be totally satisfied with their purchase. If this isn't the case, let us know and we'll do our best to work with you to make it right.

3-Year Warranty

We will work quickly to ship your order as soon as possible. Once your order has been shipped, you will receive an email with further information. Delivery times vary depending on your location.

Recommended Accessories

Feature	Specification
Chipset	INTEL B760
CPU	Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA	1700
Memory	4x DDR5, Maximum Memory Capacity 256GB
Memory Support	7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency	• 1DPC 1R Max speed up to 7000+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz
Memory Details	Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel® Extreme Memory Profile
Onboard Graphics	1x HDMI™ (Support HDMI™ 2.1 with HDR, max 4K 60Hz); 1x DisplayPort (Support DP 1.4, max 8K 60Hz)
Slot	2x PCI-E x16 slot (Supports x16/x4); 1x PCI-E x1 slot
PCI_E Gen	PCI_E1 Gen PCIe 5.0 up to x16 (CPU); PCI_E2 Gen PCIe 3.0 up to x4 (Chipset); PCI_E3 Gen PCIe 4.0 up to x1 (Chipset)
Audio	Realtek® ALC897 Codec; 7.1-Channel High Performance Audio; Supports S/PDIF output
Storage	3x M.2 (M.2_1 PCIe 4.0 x4; M.2_2 PCIe 4.0 x4; M.2_3 PCIe 4.0 x4 / SATA mode); 4x SATA 6G
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	4x USB 2.0 (Rear); 4x USB 2.0 (Front); 2x USB 5Gbps Type A (Front); 4x USB 10Gbps Type A (Rear); 1x USB 10Gbps Type C (Front); 1x USB 20Gbps Type C (Rear)
LAN	Realtek® 2.5Gbps LAN
Internal IO	1x ATX_PWR; 2x CPU_PWR; 1x CPU Fan; 1x Pump Fan; 5x System Fan; 2x JFP; 1x JCI; 1x JAUD; 1x JDASH; 2x JARGB_V2; 2x JRGB; 1x TPM pin header; 4x USB 2.0; 2x USB 5Gbps Type A; 1x USB 10Gbps Type C
WIRELESS LAN & BLUETOOTH	Intel® Wi-Fi 6E (2.4GHz / 5GHz / 6GHz up to 2.4Gbps); Supports MU-MIMO TX/RX; Supports Bluetooth® 5.3
LED FEATURE	4x EZ Debug LED

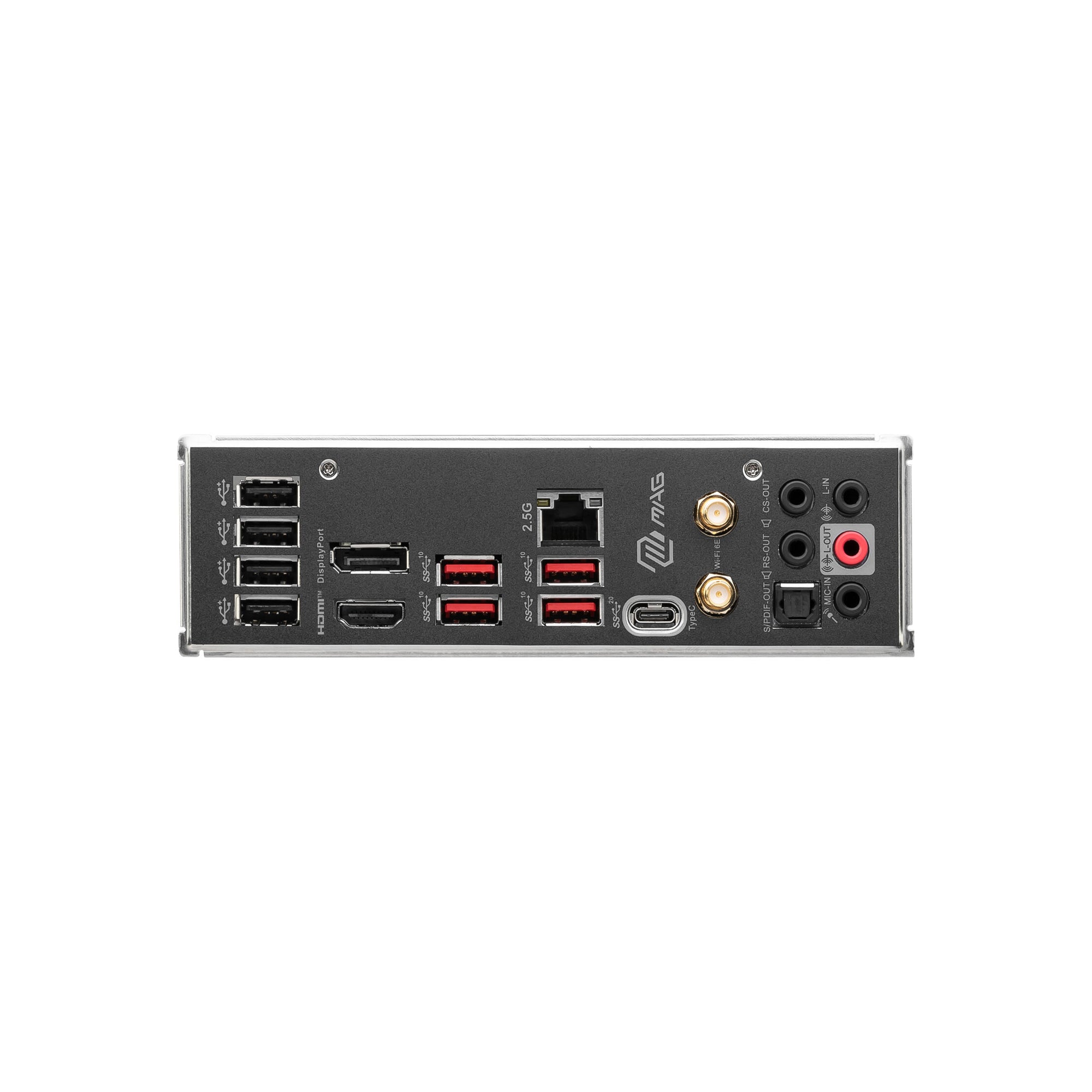

BACK PANEL PORTS	USB 2.0; DisplayPort 1.4; USB 3.2 Gen 2 10Gbps Type-A; 2.5G LAN Port; Wi-Fi / Bluetooth Antenna; HD Audio Connectors; HDMI™ 2.1 Port; USB 3.2 Gen 2x2 20Gbps Type-C; Optical S/PDIF OUT
