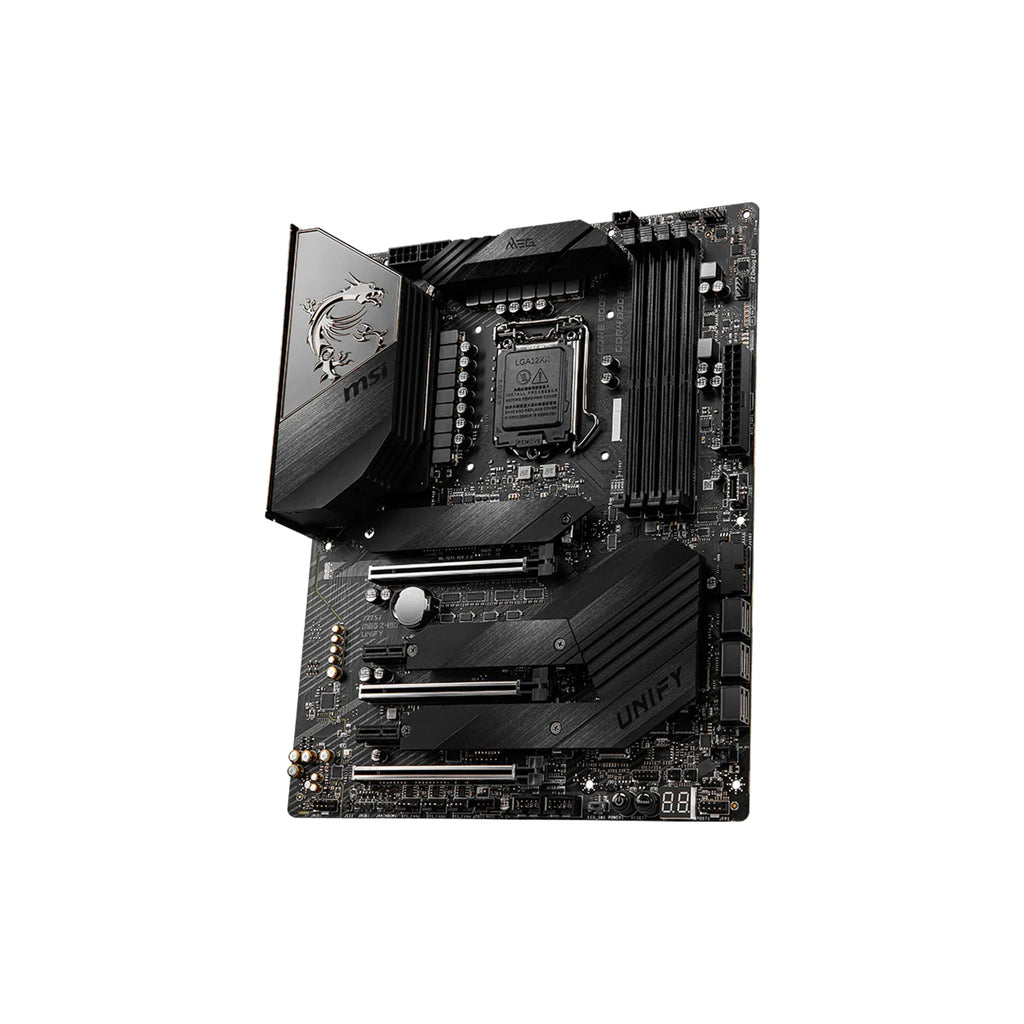

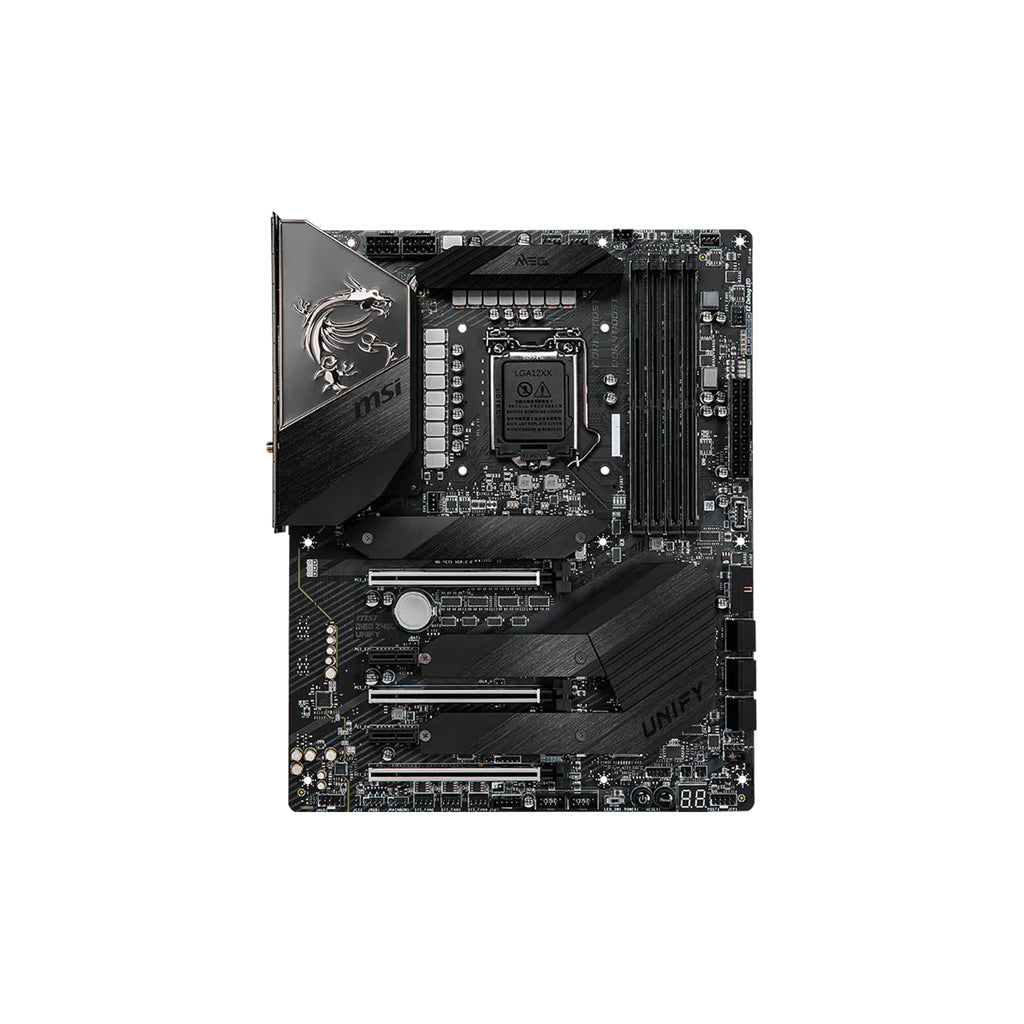

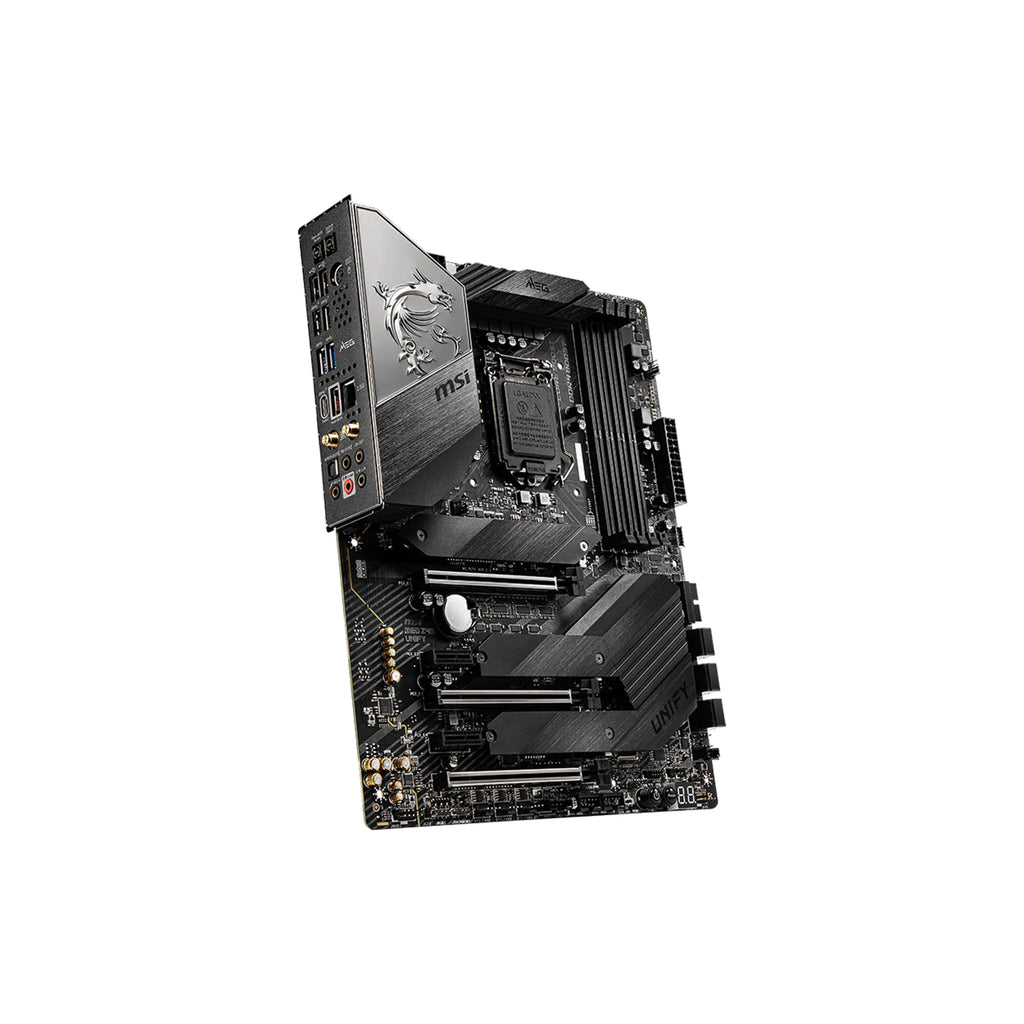

MSI MEG Z490 Unify ATX Gaming Motherboard

Name: MSI MEG Z490 Unify ATX Gaming Motherboard
Brand: MSI
SKU: MSI MB-30B
Price: 12179.00 PHP
Availability: OutOfStock

₱12,179.00 PHP ₱13,529.00 PHP

Out of stock

About This Item

• Extreme Power Design: ISL digital PWM, 16+1 phases with 90A SPS and dual CPU power connectors to unleash your true power.
• Aluminum Cover: Fully aluminum IO cover provide the maximum surface of heat dissipation, ready for breaking the world record!
• M.2 SHIELD FROZR: Onboard M.2 thermal solution to keep M.2 SSDs safe while preventing throttling, making them run cooler & faster.
• WIFI 6: The latest wireless solution supports MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
• Triple Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
• Frozr Heatsink Design: Designed with double ball bearings to provide best performance for enthusiast gamers and prosumers.
• Outstanding Cooling Solution: Aluminum Cover design, VRM Heat-pipe, 7W/mK thermal pads, M.2 Shield Frozr, and Aluminum Backplate ensure extreme performance with low temp.
• 2.5G LAN: Onboard 2.5G LAN with LAN manager, delivering the best online gaming experience.
• Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.
• Smart Button: Reset Computer, Safe Boot, Turbo Fan, and EZ LED control functions with just one click.

Our goal is for every customer to be totally satisfied with their purchase. If this isn't the case, let us know and we'll do our best to work with you to make it right.

3-Year Warranty

We will work quickly to ship your order as soon as possible. Once your order has been shipped, you will receive an email with further information. Delivery times vary depending on your location.

Recommended Accessories

Feature	Specification
Socket	1200
Chipset	Intel® Z490
Memory Channel	Dual
DIMM Slots	4
Max Memory (GB)	128
PCI-E x16 Slots	3
PCI-E Gen	Gen3
PCI-E x1 Slots	2
SATAIII Ports	6
M.2 Slot	3
RAID Support	0/1/5/10
USB 3.2 (Front)	1 (Gen2, Type-C), 2 (Gen1, Type-A)

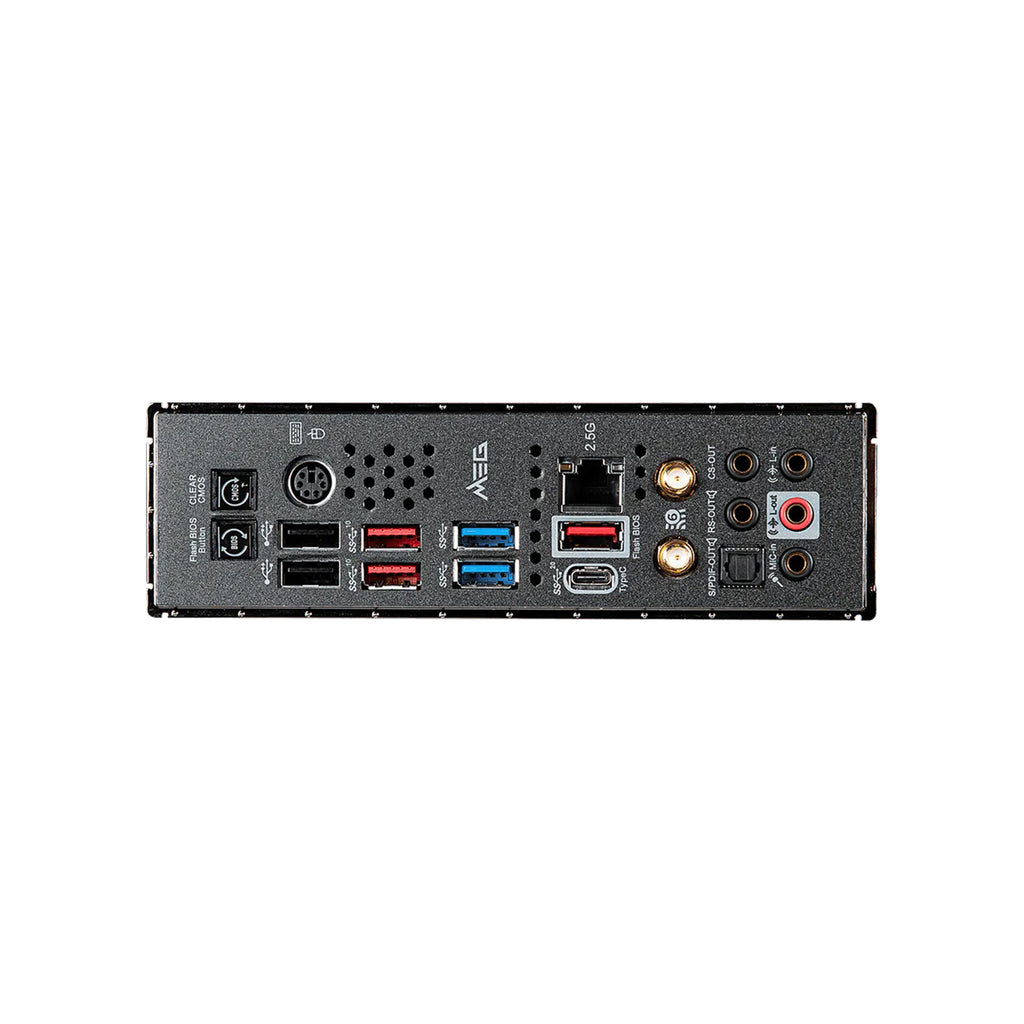

USB 3.2 (Rear)	1 (Gen2x2, Type-C), 3 (Gen2, Type-A), 2 (Gen1, Type-A)
USB 2.0 (Front)	4
USB 2.0 (Rear)	2
Audio Ports (Rear)	4
Audio Codec	Realtek® ALC1220 + ESS SABRE9018Q2C combo DAC
DirectX Version	12
SLI Support	Yes
CrossFire Support	Yes
CPU Support	Intel® 10th/11th Gen Core (64-bit Windows 10)
Form Factor	ATX

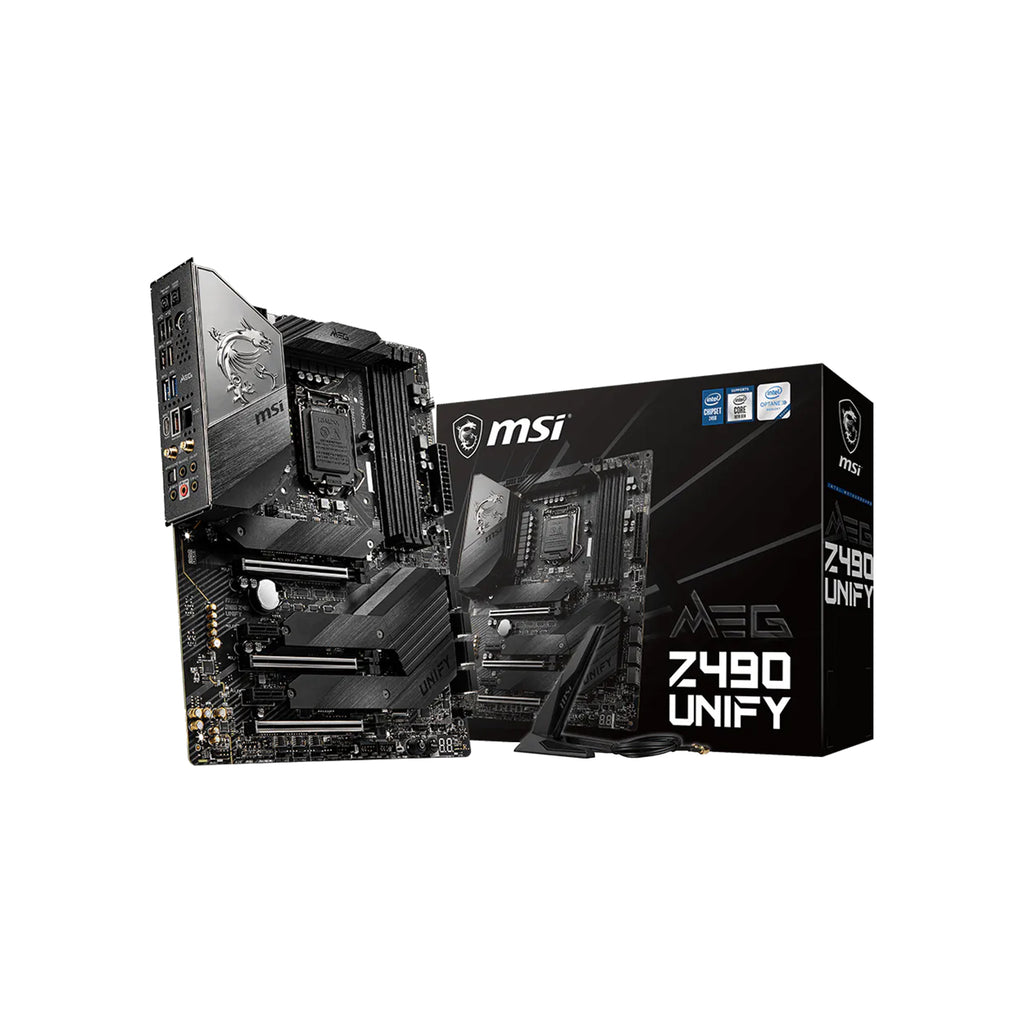

• Motherboard: MEG Z490 UNIFY (with pre-installed I/O shield)
• Storage: 4x SATA 6Gb/s cables
• Networking: 1x Wi-Fi antenna set
• Installation: 3x M.2 screws/standoffs
• Cables & Connectors:
- 1x RGB LED extension cable (12V)
- 1x Rainbow LED extension cable (3-pin, 5V)
- 1x Corsair LED extension cable
• Documentation & Media:
- User Manual
- Quick Installation Guide
- Driver/Software DVD
• Accessories:
- Cable labels/tags
- MSI Case Badge
- Product catalog
- Registration card
