| WIRELESS |
|
| Standards and Protocols |
Wi-Fi 6IEEE 802.11ax/ac/n/a 5 GHzIEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds |
AX54005 GHz: 4804 Mbps (802.11ax, HE160)2.4 GHz: 574 Mbps (802.11ax) |
| WiFi Range |
3 Bedroom Houses6× Fixed High-Performance Antennas: Multiple antennas form a signal-boosting array to cover more directions and large areas |
| Beamforming |
Concentrates wireless signal strength towards clients to expand WiFi range |
| High-Power FEM |
Improves transmission power to strengthen signal coverage |
| Streams / MIMO |
4T4R: Multiple streams in the same band strengthen fault tolerance in transmission6 Streams4×4 MU-MIMO: Simultaneously communicates with multiple MU-MIMO clients |
| WiFi Capacity |
HighDual-Band: Allocate devices to different bands for optimal performance |
| OFDMA |
Simultaneously communicates with multiple Wi-Fi 6 clients |
| Airtime Fairness |
Improves network efficiency by limiting excessive occupation |
| DFS |
Access an extra band to reduce congestion |
| Working Modes |
Router ModeAccess Point Mode |
| SECURITY |
|
| Network Security |
SPI FirewallAccess ControlIP & MAC BindingApplication Layer Gateway |
| HomeShield Security |
Real-Time IoT ProtectionMalicious Site BlockerIntrusion Prevention SystemDDoS Attack PreventionHome Network Scanner |
| Guest Network |
1× 5 GHz Guest Network1× 2.4 GHz Guest Network |
| VPN Server |
OpenVPNPPTP |
| VPN Client |
Open VPN ClientPPTP VPN ClientL2TP VPN Client |
| WiFi Encryption |
WPAWPA2WPA3WPA/WPA2-Enterprise (802.1x) |
| HARDWARE |
|
| Processor |
1 GHz Dual-Core CPU |

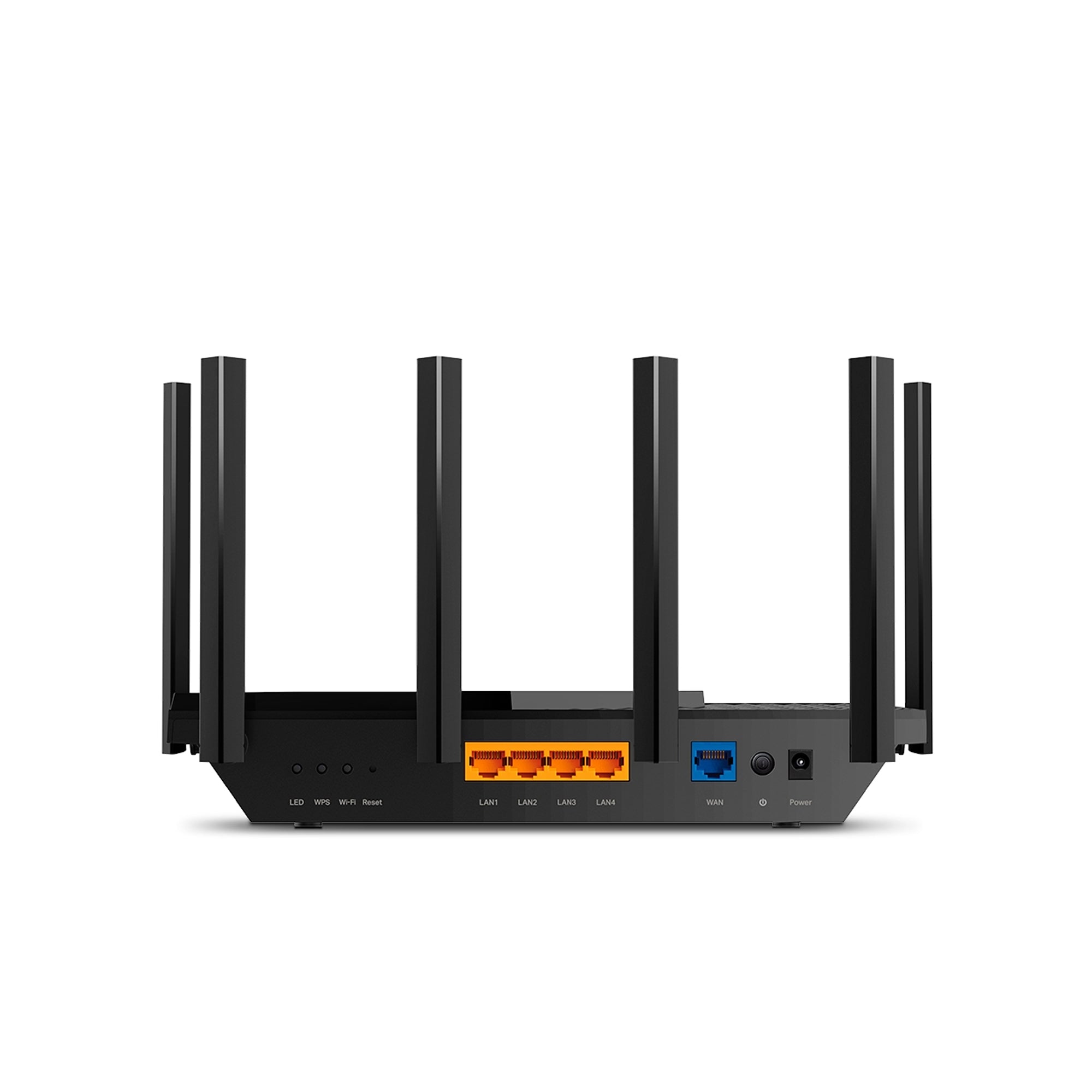

| Ethernet Ports |
1× Gigabit WAN Port4× Gigabit LAN Ports |
| USB Support |
1× USB 3.0 PortSupported Partition Formats: NTFS, exFAT, HFS+, FAT32Supported Functions: Apple Time Machine, FTP Server, Media Server, Samba Server |
| Buttons |
Wi-Fi On/Off ButtonPower On/Off ButtonLED On/Off ButtonWPS ButtonReset Button |
| Power |
12 V ⎓ 2.5 A |
| SOFTWARE |
|
| Protocols |
IPv4IPv6 |
| Service Kits |
HomeShield |
| OneMesh™ |
OneMesh™ Supported: Flexible network coverage with existing TP-Link OneMesh™ devices |
| Parental Controls |
HomeShield Parental ControlsCustom ProfilesProfessional Content Filter LibraryFamily TimeBedtimeOff TimeTime RewardsFamily Online Time RankingPause the InternetWeekly and Monthly Reports |
| WAN Types |
Dynamic IPStatic IPPPPoEPPTPL2TP |
| Quality of Service |
QoS by Device |
| Cloud Service |
Auto Firmware UpgradeTP-Link ID |
| NAT Forwarding |
Port ForwardingPort TriggeringDMZUPnPVirtual Server |
| IPTV |
IGMP ProxyIGMP SnoopingBridgeTag VLAN |
| DHCP |
Address ReservationDHCP Client ListServer |
| DDNS |
TP-LinkNO-IPDynDNS |
| Management Features |
Tether AppWebpage |
| OTHER |
|
| Network Services Enabled by Default |
Web Server: Manage and configure device through web (HTTP/HTTPS) - Port 80/443 TCPDNS: Port 53 TCP & UDPDHCP Server: Port 67 UDPApp management: Ports 20001, 30001 TCP; 20002 UDP |
| System Requirements |
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browserCable or DSL Modem (if needed)Subscription with an internet service provider |
| Certifications |
FCC, CE, RoHS |
| Environment |
Operating Temperature: 0℃~40℃ (32℉ ~104℉)Storage Temperature: -40℃~70℃ (-40℉ ~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing |
| TEST DATA |
|
| WiFi Transmission Power |
CE: <20 dBm (2.4 GHz), <23 dBm (5.15-5.35 GHz), <30 dBm (5.47-5.725 GHz)FCC: <24 dBm (5.25-5.35 & 5.47-5.725 GHz), <30 dBm (2.4 GHz & 5.15-5.25 & 5.725-5.825 GHz) |
| WiFi Reception Sensitivity |
2.4 GHz: 11ac/11ax HE20/HE40 MCS0-11 detailed values5 GHz: 11ac/11ax HE20/40/80/160 MCS0-11 detailed values |
| PHYSICAL |
|
| Dimensions (W×D×H) |
10.7 × 5.8 × 1.9 in (272.5 × 147.2 × 49.2 mm) |
