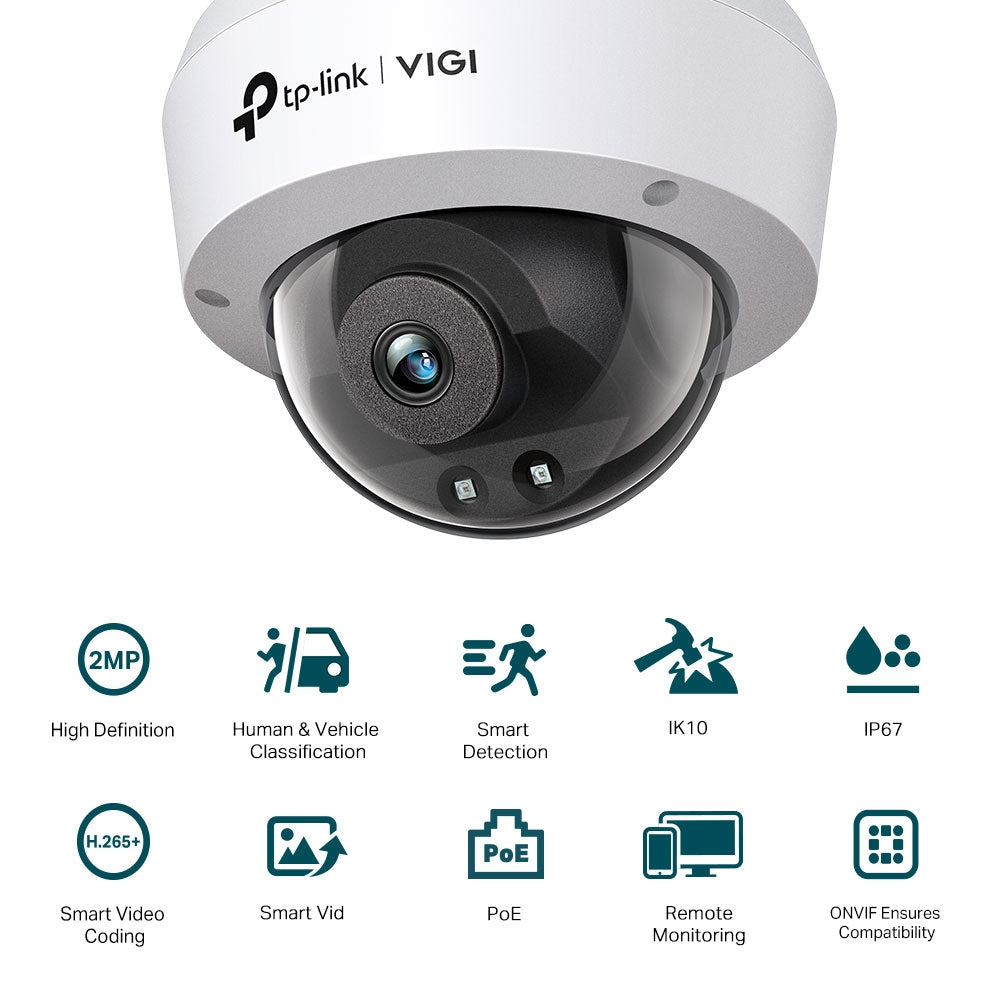

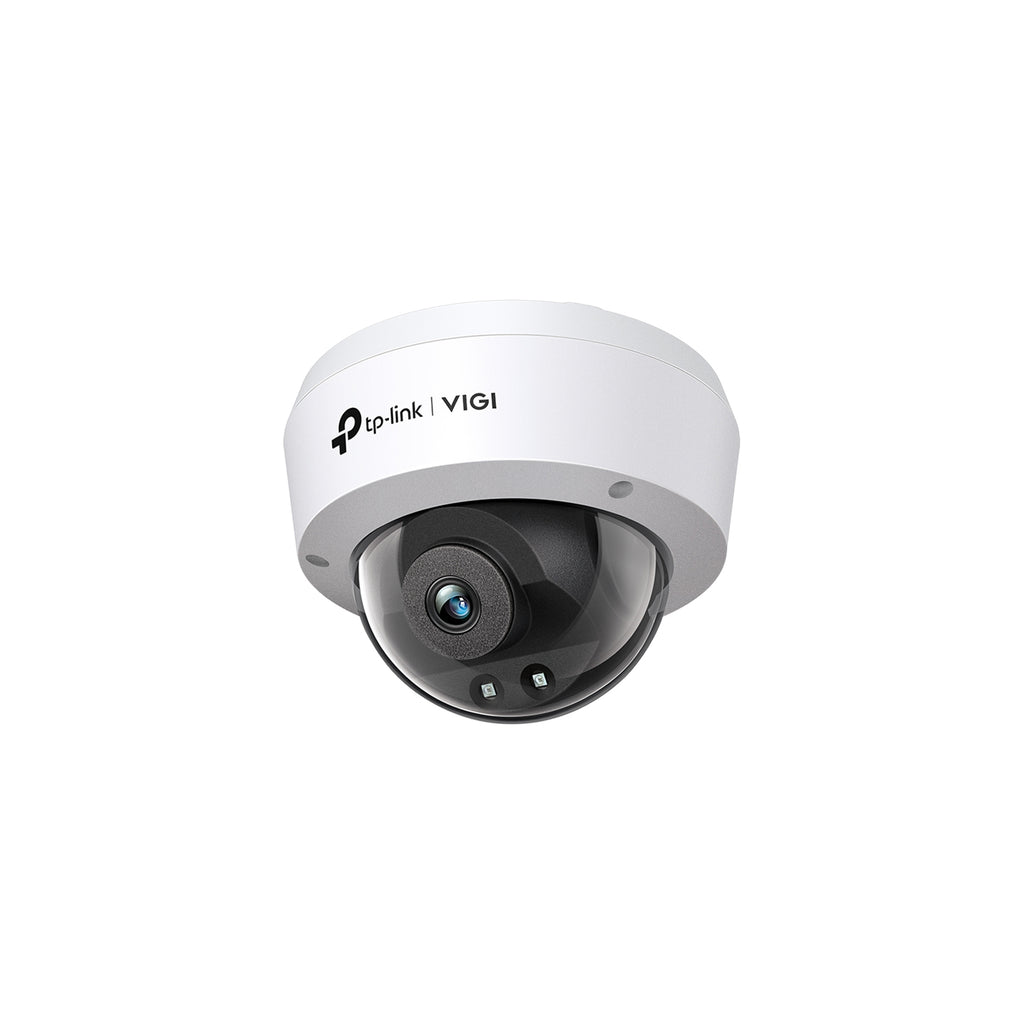

TP-Link VIGI C220I 2MP IR Dome Network Camera
About This Item
Return policy
Our goal is for every customer to be totally satisfied with their purchase. If this isn't the case, let us know and we'll do our best to work with you to make it right.
Warranty
3-Year Warranty
Shipping
We will work quickly to ship your order as soon as possible. Once your order has been shipped, you will receive an email with further information. Delivery times vary depending on your location.
Recommended Accessories
| Category | Feature | Details |
| CAMERA | Image Sensor | 1/3” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s | |
| Minimum Illumination | Color: 0.1 Lux; 0 Lux with IR | |
| Day/Night Mechanism | IR Cut Filter | |
| Digital Noise Reduction | 3D DNR | |
| LENS | Type | Fixed Focal Lens |
| Focal Length | 2.8 mm / 4 mm | |
| Aperture | 2.8 mm: F2.2; 4 mm: F2.0 | |
| FOV (2.8 mm) | Horizontal: 88.2°, Vertical: 48.7°, Diagonal: 106.5° | |
| FOV (4 mm) | Horizontal: 74.6°, Vertical: 41.3°, Diagonal: 88.1° | |
| DORI (2.8 mm) | Detect: 45 m, Observe: 19 m, Recognize: 9 m, Identify: 5 m | |
| DORI (4 mm) | Detect: 60 m, Observe: 25 m, Recognize: 12 m, Identify: 6 m | |
| Angle Adjustment | Pan: 0° to 355°, Tilt: 0° to 75° | |
| ILLUMINATOR | IR LED | Quantity: 2, Range: 30m, Wavelength: 850nm |
| White LED | N/A | |
| VIDEO | Max. Resolution | 2MP (1920 × 1080) |
| Main Stream | 50Hz: up to 25fps; 60Hz: up to 30fps (1920x1080, 1280x960, 1280x720) | |
| Sub-Stream | 50Hz: up to 25fps; 60Hz: up to 30fps (704x576, 640x480, 352x288, 320x240) | |

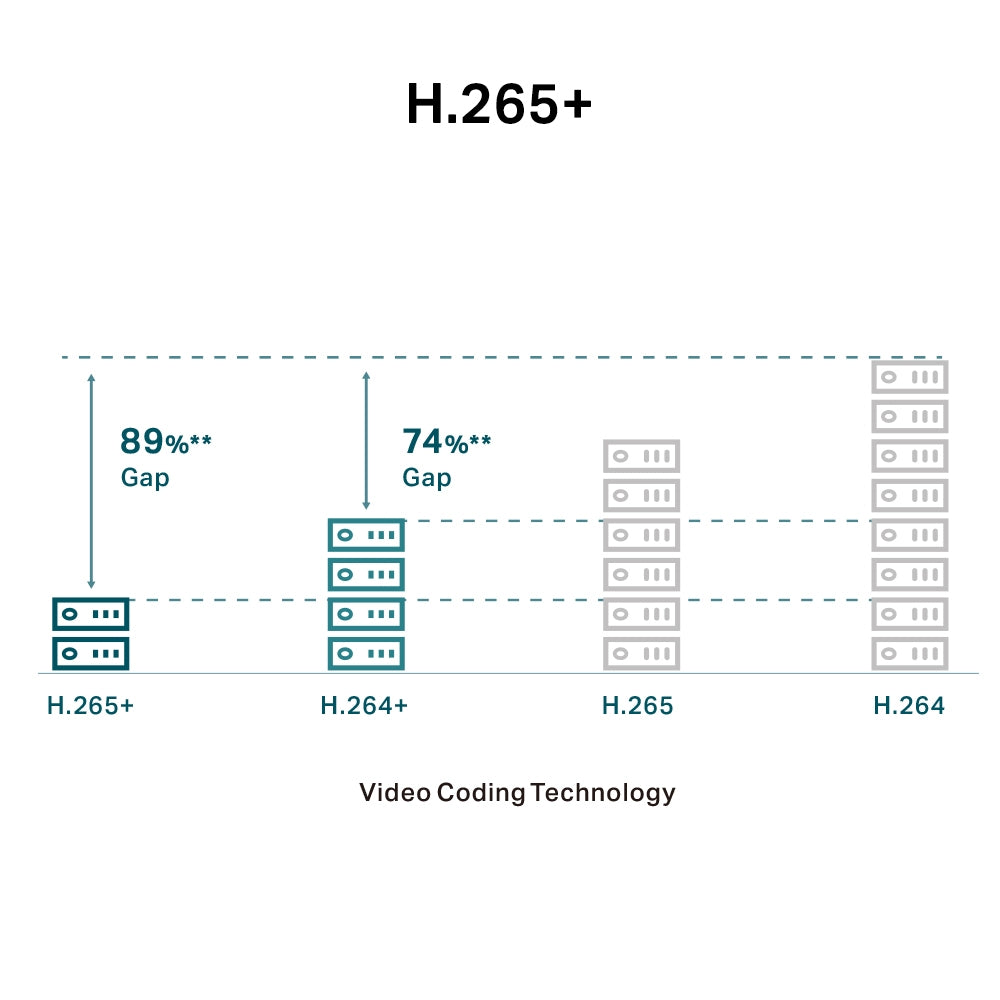

| Video Compression | Main: H.265+/H.265/H.264+/H.264; Sub: H.265/H.264 | |
| Video Bit Rate | 64 Kbps to 4 Mbps | |

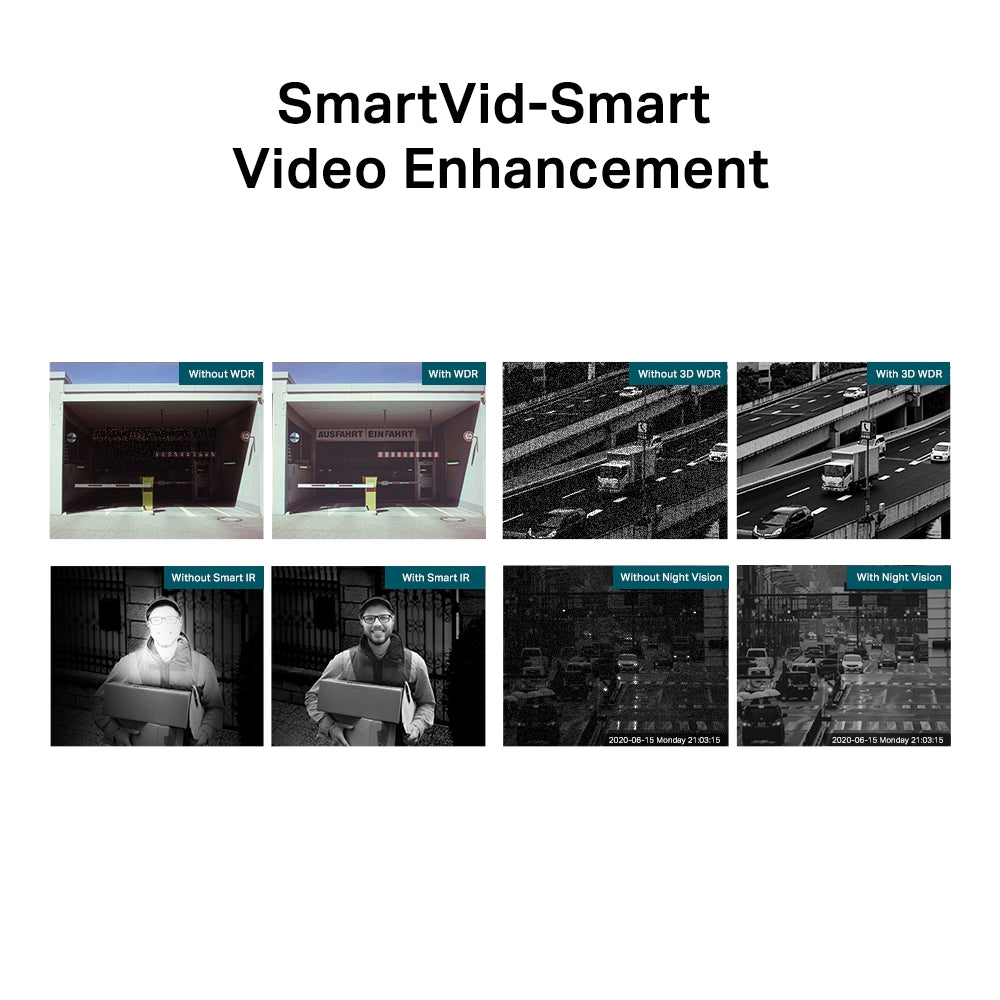

| IMAGE | Enhancement | BLC / 3D DNR / HLC / SmartIR |
| Wide Dynamic Range | DWDR | |
| Privacy Mask | Up to 4 Masks | |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Rotation (90°/270°) | |
| AUDIO | Audio Support | N/A (No Microphone/Speaker/Input/Output) |
| NETWORK | Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| ONVIF / API | Yes; Open Network Video Interface (Profile S) | |
| Client | VIGI App, VIGI Security Manager, VIGI NVR | |
| ALARM/EVENT | Smart Event | Human & Vehicle Classification, Intrusion, Line-Crossing, People/Vehicle Detection, Region Entry/Exit, Object Abandoned/Removal |
| Basic Event | Motion Detection, Video Tampering Detection, Exception (Illegal Login) | |
| Alarm Linkage | Message Push | |
| INTERFACES | Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port |
| Power | PoE Only | |
| On-board Storage | N/A | |
| GENERAL | Operating Temp | -30–60 °C |

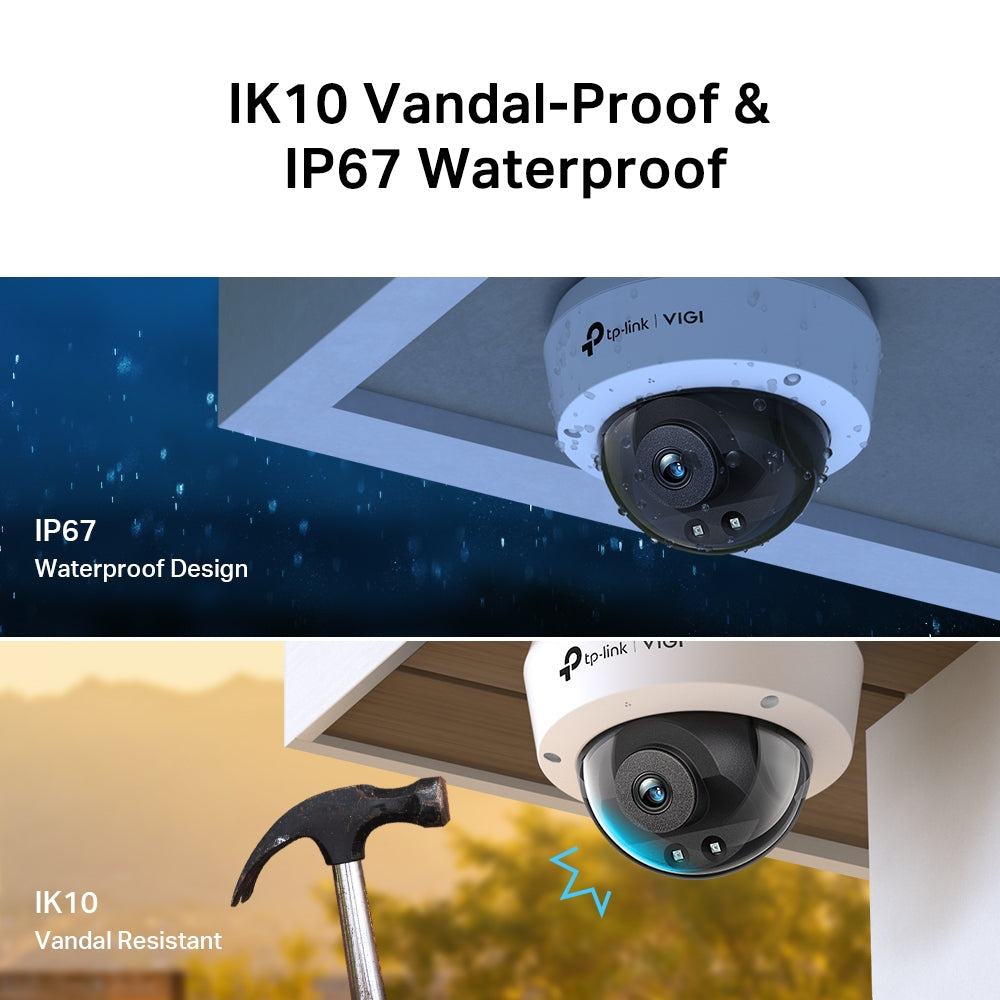

| Protection | IP67 (Weatherproof), IK10 (Vandal Resistant) | |
| Material | Plastic | |
| Dimensions | 115 × 115 × 86 mm | |
| Net Weight | 0.26 Kg | |

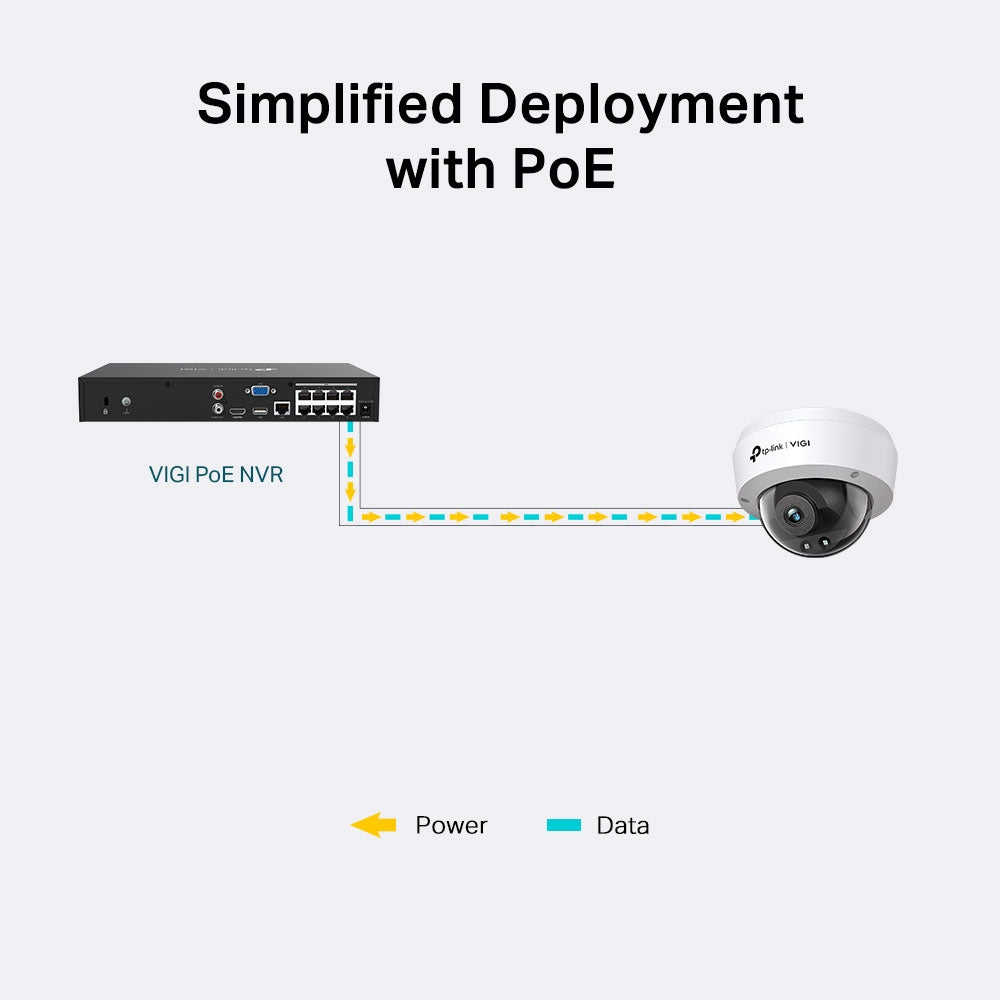

| Power Supply | PoE (802.3af/at, class 0) | |
| Certifications | CE, BSMI, VCCI, ONVIF |
