| CAMERA |
|
| Image Sensor |
1/3” Progressive Scan CMOS |
| Shutter Speed |
1/3 to 1/10000 s |
| Slow Shutter |
Yes |
| Aperture |
2.8 mm: F1.64 mm: F1.66 mm: F1.6 |
| Lens |
Fixed focal lens (2.8 mm / 4 mm / 6 mm) |
| Lens Mount |
M12 |
| Minimum Illumination |
0 lux with IR/white Light |
| Day/Night Mechanism |
IR Cut Filter |
| Day/Night Switch |
Day/Night/Auto/Schedule-Switch |
| Digital Noise Reduction |
3D DNR |
| WDR |
DWDR |
| Weatherproof Rating |
IP66 |
| IR Working Distance |
30 m |
| Illumination Distance |
30 m |
| Viewing Angle |
2.8 mm: Horizontal FOV: 102°, Vertical FOV: 55°, Diagonal FOV: 122°4 mm: Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°6 mm: Horizontal FOV: 50°, Vertical FOV: 27°, Diagonal FOV: 59° |
| LENS |
|
| Type |
Fixed Focal Lens |
| Focal Length |
2.8 mm / 4 mm / 6 mm |
| Aperture |
2.8 mm: F1.64 mm: F1.66 mm: F1.6 |
| FOV |
2.8 mm: Horizontal FOV: 102°, Vertical FOV: 55°, Diagonal FOV: 122°4 mm: Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°6 mm: Horizontal FOV: 50°, Vertical FOV: 27°, Diagonal FOV: 59° |
| Lens Mount |
M12 |
| DORI Distance |
2.8 mm: Detect: 64 m (209 ft), Observe: 27 m (87 ft), Recognize: 13 m (42 ft), Identify: 6 m (21 ft)4 mm: Detect: 80 m (262 ft), Observe: 33 m (109 ft), Recognize: 16 m (52 ft), Identify: 8 m (26 ft)6 mm: Detect: 128 m (420 ft), Observe: 53 m (175 ft), Recognize: 26 m (84 ft), Identify: 13 m (42 ft) |
| Angle Adjustment (Manual) |
Pan: -90° to 90°, Tilt: -90° to 90° |
| ILLUMINATOR |
|
| IR LED |
Quantity: 2, Range: 30 m, Wavelength: 850 nm |
| White LED |
Quantity: 2, Range: 30 m |
| Illuminator On/Off Control |
Auto/Scheduled/Always on/Always off |
| VIDEO |
|
| Max. Resolution |
2560 × 1440 |
| Main Stream |
Frame Rate: 50Hz: 1–25 fps, 60Hz: 1–30 fpsResolution: 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720Note: 90°/270° rotation supports up to 20 fps |
| Sub-Stream |
Frame Rate: 50Hz: 1–25 fps, 60Hz: 1–30 fpsResolution: 640×480, 352×288, 320×240Note: 90°/270° rotation supports up to 20 fps |
| Bit Rate Control |
CBR, VBR |
| Video Compression |
Main Stream: H.265+/H.265/H.264+/H.264Sub-Stream: H.265/H.264 |
| H.264 Type |
Main Profile / High Profile |
| H.264+ |
Main Stream Supported |
| H.265 Type |
Main Profile |
| H.265+ |
Main Stream Supported |
| Video Bit Rate |
Main Stream: 256 Kbps to 4 MbpsSub-Stream: 64 Kbps to 512 Kbps |
| IMAGE |
|
| Image Settings |
Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°) |
| Image Enhancement |
BLC / 3D DNR / Prevent Overexposure to Infrared Light / HLC / SmartIR |
| Wide Dynamic Range |
DWDR |
| SNR |
≥ 52 dB |
| Image Parameters Switch |
Yes |
| Privacy Mask |
Up to 4 Masks |
| ROI |
1 Region |
| OSD Setting |
Yes |
| AUDIO |
|
| Audio Communication |
Two-Way Audio |
| Audio Input |
Yes |
| Audio Output |
Yes |
| Audio Compression |
Yes |
| Audio Sampling Rate |
8 KHz |
| Environment Noise Filtering |
Yes |
| Audio Bit Rate |
64 Kbps (G.711 alaw) |
| NETWORK |
|
| Protocol |
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| ONVIF |
Yes |
| API |
ONVIF |
| Simultaneous Live View |
3 Main Streams & 3 Sub-Streams |
| Client |

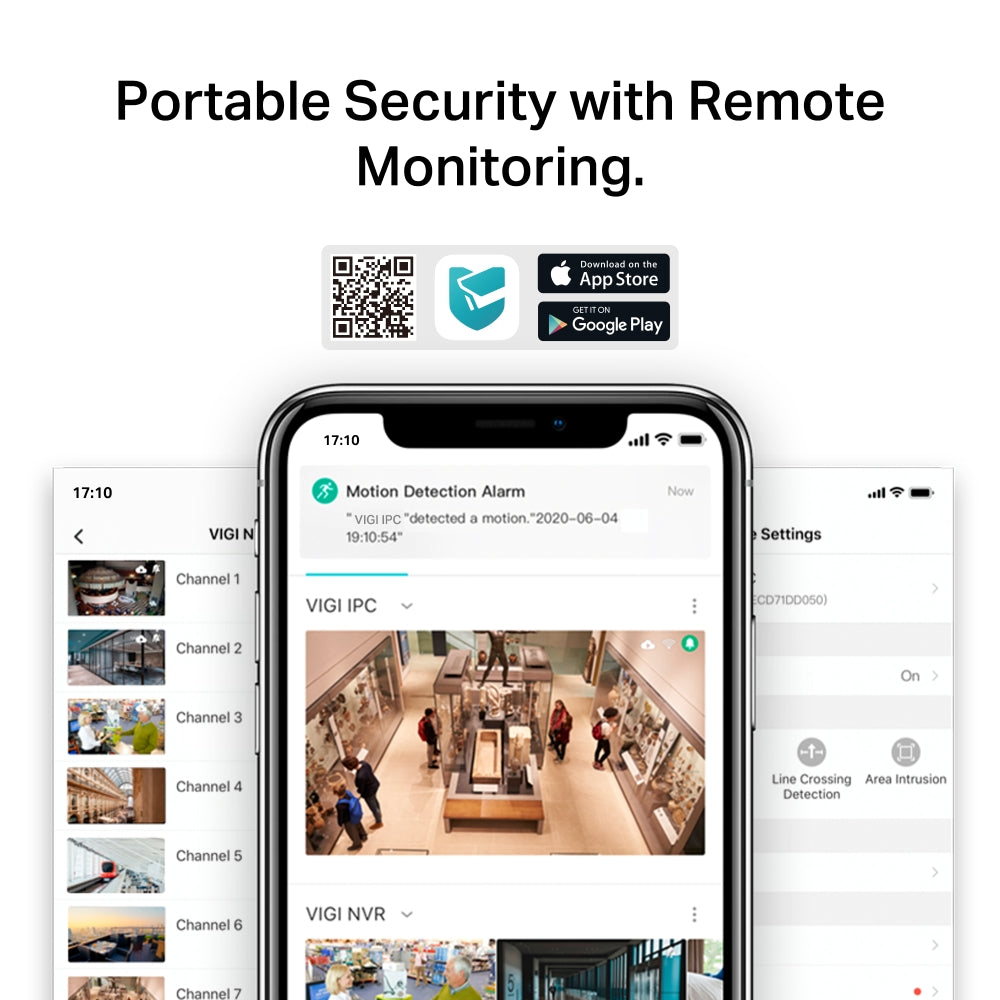

VIGI App, VIGI Security Manager |
| Web Browser |
Google Chrome® 57+, Firefox® 52+, Safari® 11+, Microsoft® Edge 91+ |
| Cloud |
Yes |
| Security |
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| ALARM AND EVENT MANAGEMENT |
|
| Smart Event |
Area Intrusion Detection, Line-Crossing Detection, Human Detection |
| Basic Event |
Motion Detection, Camera Tampering Detection, Exception (illegal login) |
| Alarm Linkage |
Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing |
| Linkage Method |
N/A |
| Output Notification |
Message Push |
| INTERFACES |
|
| Network Interface |
1 RJ45 10/100M Self-Adaptive Ethernet Port |
| Audio Input |
Built-in Microphone |
| Audio Output |
Built-in Speaker |
| Alarm |
N/A |
| Reset Button |
Yes |
| Power |
DC Power Port |
| Slot |
Micro SD card |
| On-board Storage |
Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB |
| Built-in Microphone |
Yes; records within a 5 m (16.4 ft) radius |
| Built-in Speaker |
Yes |
| GENERAL |
|
| Operating Temperature |
-30–60 °C |
| Storage Temperature |
-40–60 °C |
| Operating Humidity |
95% or Less (Non-Condensing) |
| Storage Humidity |
95% or Less (Non-Condensing) |
| Weight |
195 g |
| Package Content |
VIGI Network Camera, Quick Start Guide, Waterproof Cable Attachments, Mounting Accessories (Screws, Drywall Anchors, Hex Key) |
| Dimensions (H × W × D) |
78 × 70 × 174 mm |
| Material |
Plastic |
| General Features |
Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening |
| Power Requirements |
12V DC ±5%, 5.5mm Coaxial Power Plug, PoE (802.3af/at, class 0) |
| Net Weight |
0.28 Kg |
| Gross Weight |
0.42 Kg |
| Max. Power Consumption |
12V DC: Max 7.5 W, PoE: Class 0 |
| Protection |
IP66 |
| Product Dimensions (L × W × H) |
78 × 174 × 70 mm |
| Certifications |
CE, RCM, BSMI, VCCI, RoHS, NTRA, KC |
| VIDEO / IMAGE |
|
| Video Compression |
Main Stream: H.265+/H.265/H.264+//H.264, Sub-Stream: H.265/H.264 |
| Frame Rate & Resolutions |
Main Stream: 1–30 fps, Resolution: 2560×1440, 2304×1296, 2048×1280, 1920×1080Sub-Stream: 1–30 fps, Resolution: 640×480, 352×288, 320×240 |
| Video Streaming |
Main Stream / Sub-Stream |
| Image Settings |
Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software |
| Image Enhancement |
BLC / 3D DNR / Prevent Overexposure to Infrared Light |
| Video Bit Rate |
Main Stream: 256 Kbps to 4 Mbps, Sub-Stream: 64 Kbps to 512 Kbps |
| SMART FEATURE-SET |
|
| Smart Event |
Area Intrusion Detection, Line-Crossing Detection, Human Detection |
| Basic Event |
Motion Detection, Camera Tampering Detection, Exception (illegal login) |
| Linkage Method |
Trigger Notification: ONVIF, HTTPS |
| Region of Interest |
1 Region |
