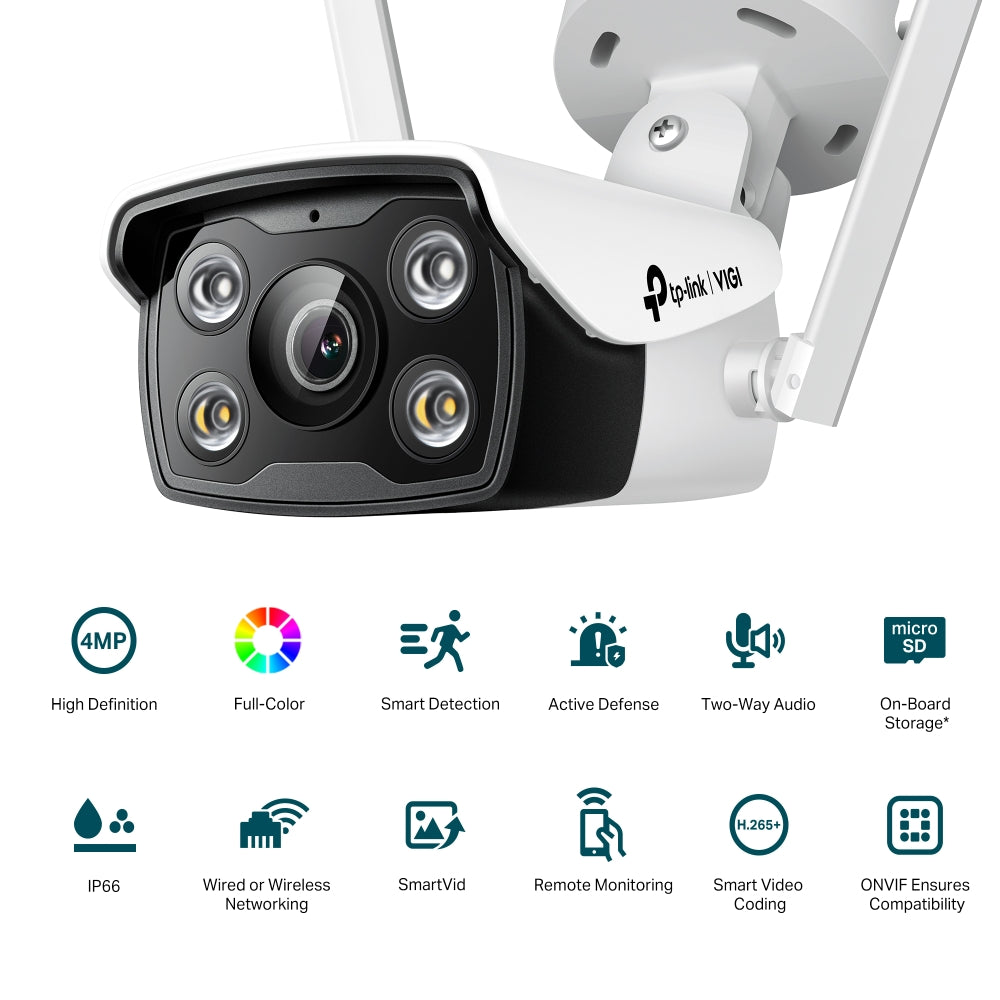

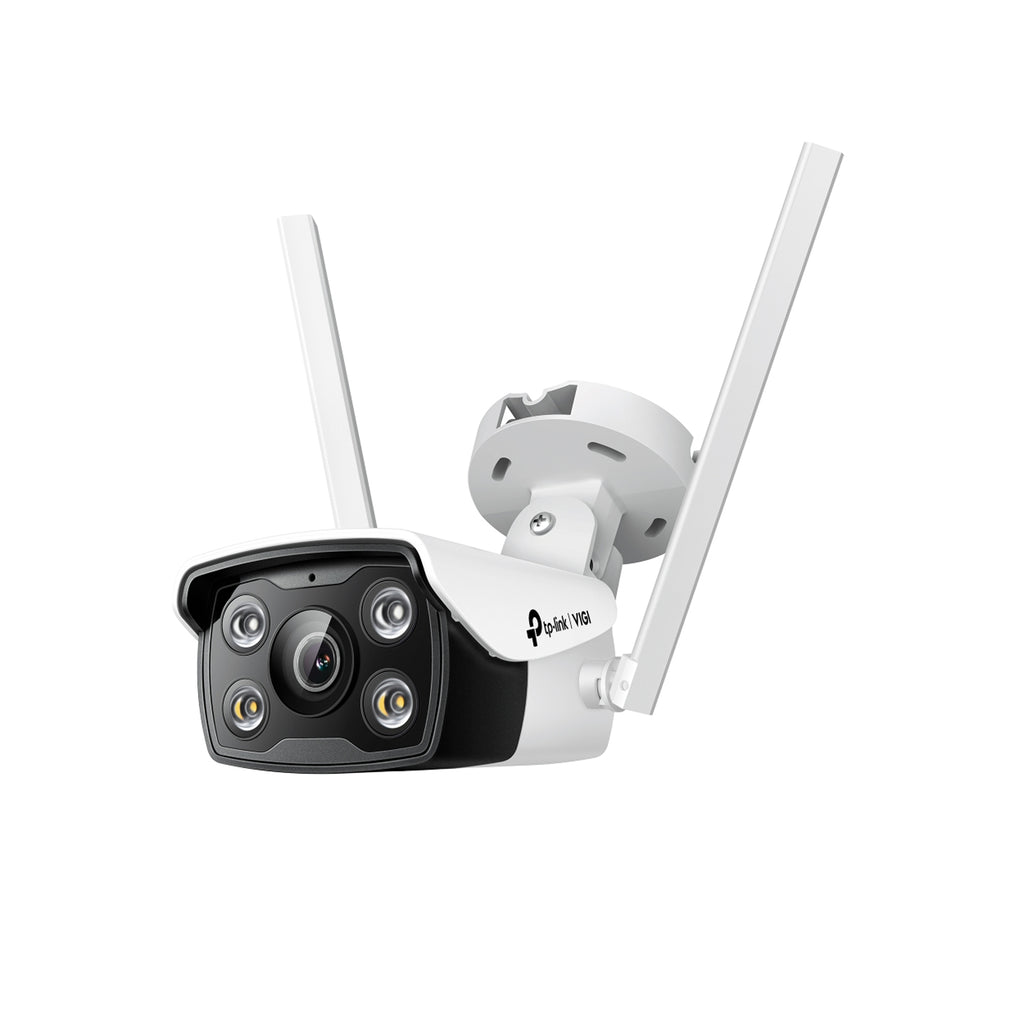

TP-Link VIGI C340-W 4MP Outdoor Full-Color Wi-Fi Bullet Network Camera
About This Item
Return policy
Our goal is for every customer to be totally satisfied with their purchase. If this isn't the case, let us know and we'll do our best to work with you to make it right.
Warranty
3-Year Warranty
Shipping
We will work quickly to ship your order as soon as possible. Once your order has been shipped, you will receive an email with further information. Delivery times vary depending on your location.
Recommended Accessories
| Category | Specification |
|---|---|
| CAMERA | |
| Image Sensor | 1/3” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Lens | Fixed Focal Lens, 4 mm, F1.6 |
| Lens Mount | M12 |
| Minimum Illumination | 0 lux with IR/white light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Day/Night/Auto/Schedule-Switch |
| Digital Noise Reduction | 3D DNR |
| WDR | DWDR |
| Weatherproof Rating | IP66 |
| IR Working Distance | 30 m |
| Illumination Distance | 30 m |
| Viewing Angle | Horizontal: 79°, Vertical: 43°, Diagonal: 93° |
| DORI Distance | Detect: 80 m, Observe: 33 m, Recognize: 16 m, Identify: 8 m |
| Angle Adjustment | Pan: -90° to 90°, Tilt: -90° to 90° |
| ILLUMINATOR | |
| IR LED | Qty 2, 30 m, 850 nm |
| White LED | Qty 2, 30 m |
| Control | Auto/Scheduled/Always on/Always off |
| VIDEO | |
| Max. Resolution | 2560×1440 |
| Main Stream | Frame Rate: 50Hz: 1–25 fps, 60Hz: 1–30 fps; Resolutions: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 |
| Sub-Stream | Frame Rate: 50Hz: 1–25 fps, 60Hz: 1–30 fps; Resolutions: 640x480, 352x288, 320x240 |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main: H.265+/H.265/H.264+/H.264; Sub: H.265/H.264 |
| Video Bit Rate | Main: 256 Kbps–4 Mbps; Sub: 64–512 Kbps |
| IMAGE | |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance adjustable, Rotation 90°/270° |
| Image Enhancement | BLC / 3D DNR / HLC / SmartIR |
| Wide Dynamic Range | DWDR |
| SNR | ≥ 52 dB |
| Privacy Mask | Up to 4 masks |
| ROI | 1 Region |
| OSD | Yes |
| AUDIO | |
| Communication | Two-Way Audio |
| Audio Input | Yes, Built-in Microphone (records up to 5 m radius) |
| Audio Output | Yes, Built-in Speaker |
| Compression | G.711 alaw |
| Sampling Rate | 8 kHz |
| Bit Rate | 64 Kbps |
| Environment Noise Filtering | Yes |
| NETWORK & WIRELESS | |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS |
| Wireless Standard | IEEE 802.11b/g/n, 2.4 GHz |
| Wireless Rate | 11/54/150 Mbps |
| Wireless Security | WPA/WPA2-PSK |
| Wireless Mode | AP, AP Client |
| ONVIF | Yes |
| API | ONVIF |
| Simultaneous Live View | 3 main streams & 3 sub-streams |
| Client | VIGI App, VIGI Security Manager, VIGI NVR, Web |
| Web Browser | Chrome 57+, Firefox 52+, Safari 11+, Edge 91+ |
| Cloud | Yes |
| Security | Password protection, HTTPS, IP filter, Digest Auth |
| ALARM AND EVENTS | |
| Smart Event | Area Intrusion, Line-Crossing, Human Detection |
| Basic Event | Motion Detection, Camera Tampering, Illegal Login |
| Alarm Linkage | Memory Card Recording, Message Push, Audible Warning, White Light Flashing |
| Output Notification | Message Push |
| INTERFACES | |
| Network | 1 × RJ45 10/100M Ethernet |
| Audio Input/Output | Built-in Microphone / Speaker |
| Reset Button | Yes |
| Power | DC Port |
| Storage | MicroSD card, up to 256 GB |
| Antennas | 2 × 2.4 GHz Omni-Directional, 2 dBi |
| GENERAL | |
| Operating Temp | -30–60 °C |
| Storage Temp | -40–60 °C |
| Humidity | ≤ 95% Non-condensing |
| Dimensions (H×W×D) | 80 × 70.6 × 173.4 mm |
| Material | Plastic |
| Net Weight | 0.31 kg |
| Gross Weight | 0.6 kg |
| Max Power Consumption | 12V DC: 7 W |
| Power Supply | 12V DC ±5%, 5.5 mm Coaxial Plug |
| Protection | IP66 |
| Certifications | CE, RCM, BSMI, VCCI, RoHS, NTRA, KC |
| SMART FEATURES | |
| Smart Event | Area Intrusion, Line-Crossing, Human Detection |
| Basic Event | Motion Detection, Camera Tampering, Illegal Login |
| Linkage Method | ONVIF, HTTPS |
| ROI | 1 Region |
