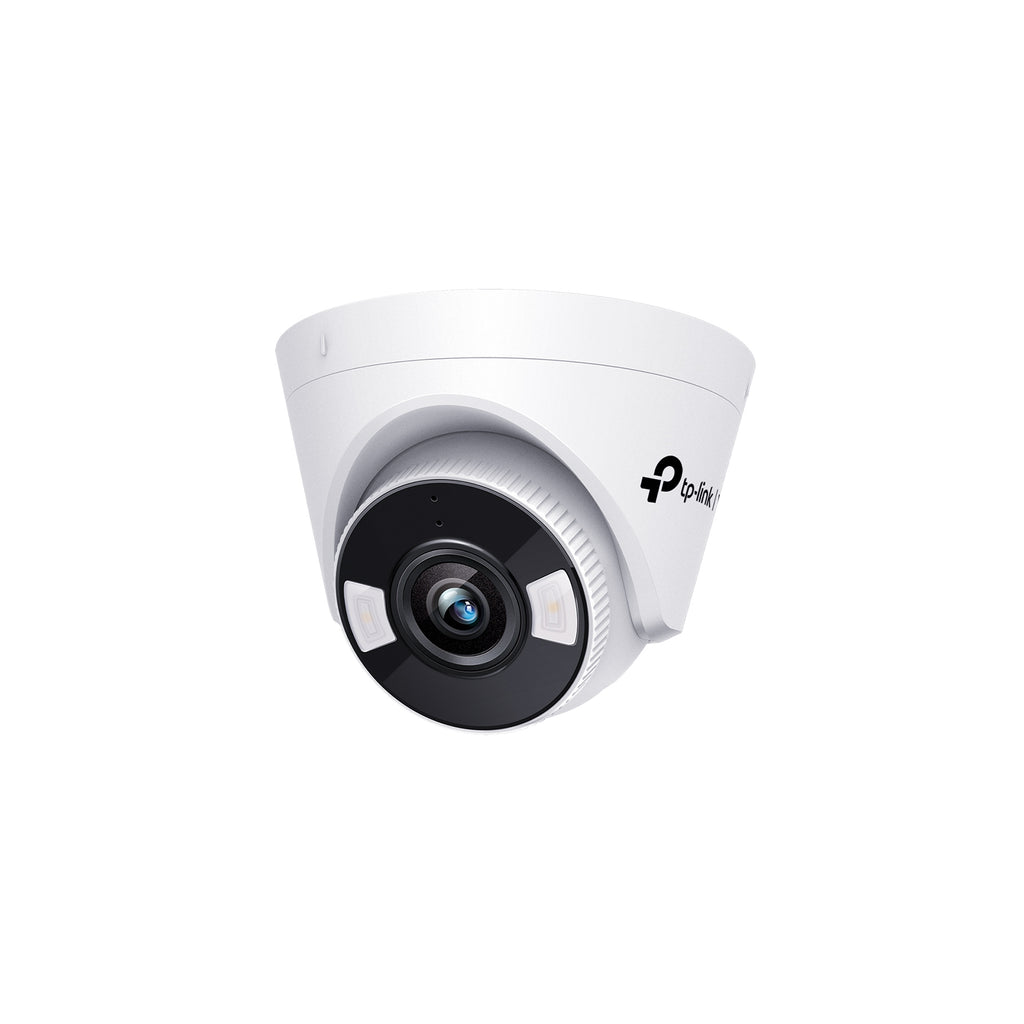

TP-Link VIGI C430 3MP Full-Color Turret Network Camera

₱2,290.00 PHP ₱2,749.00 PHP

1 left

About This Item

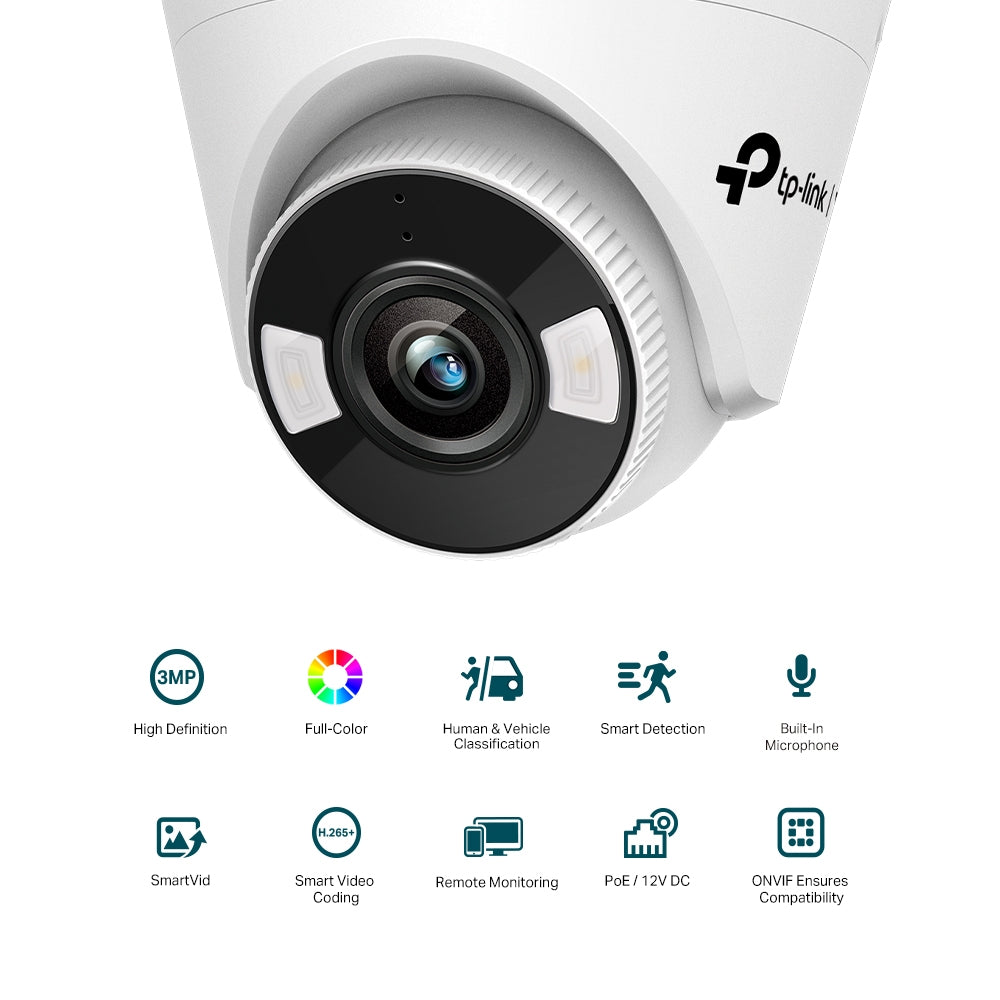

• 3MP Super-High Definition — Captures clear images with 3MP resolution, picking up even subtle details.

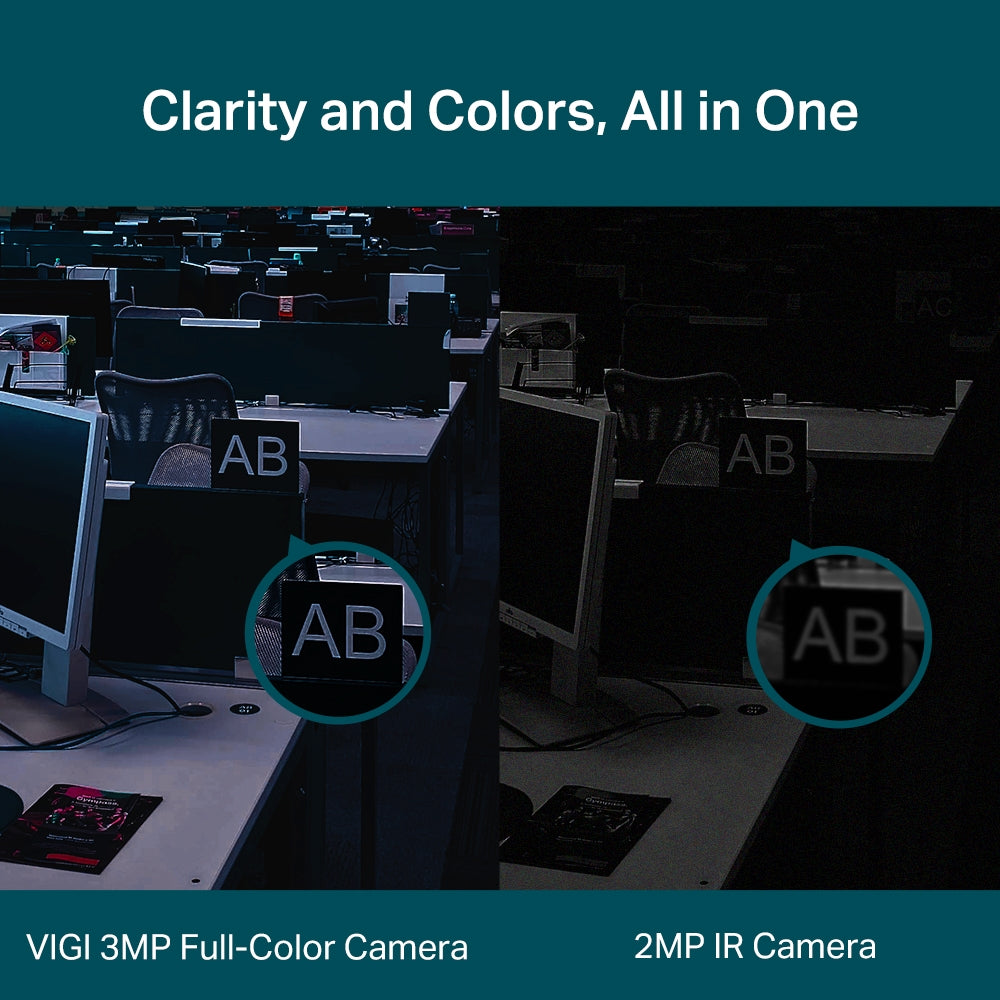

• 24h Full-Color — Records full-color video day and night with a large-aperture lens, high-sensitivity sensor, and supplemental lights.
• Human & Vehicle Classification — Accurately distinguishes people and vehicles from other objects for precise alerts.

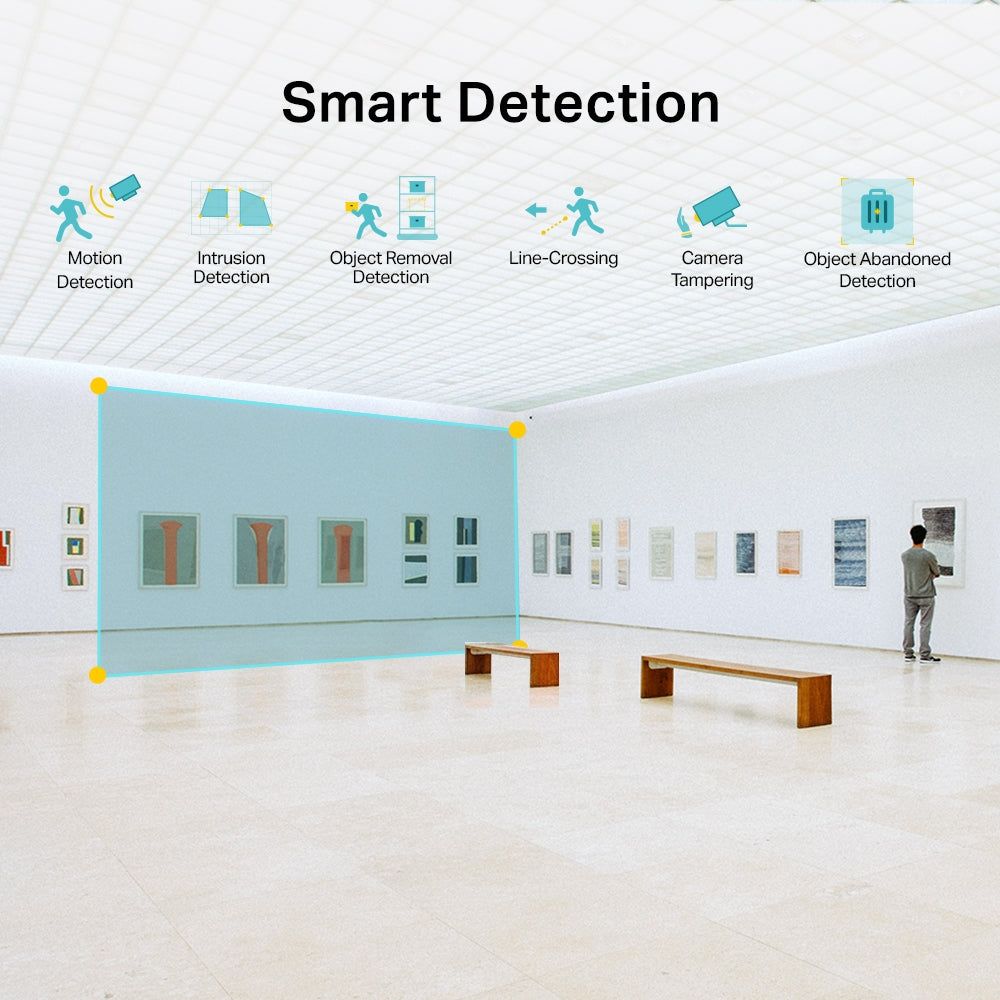

• Smart Detection — Receive notifications when someone crosses a boundary, enters a set area, blocks the camera, or removes/abandons objects.

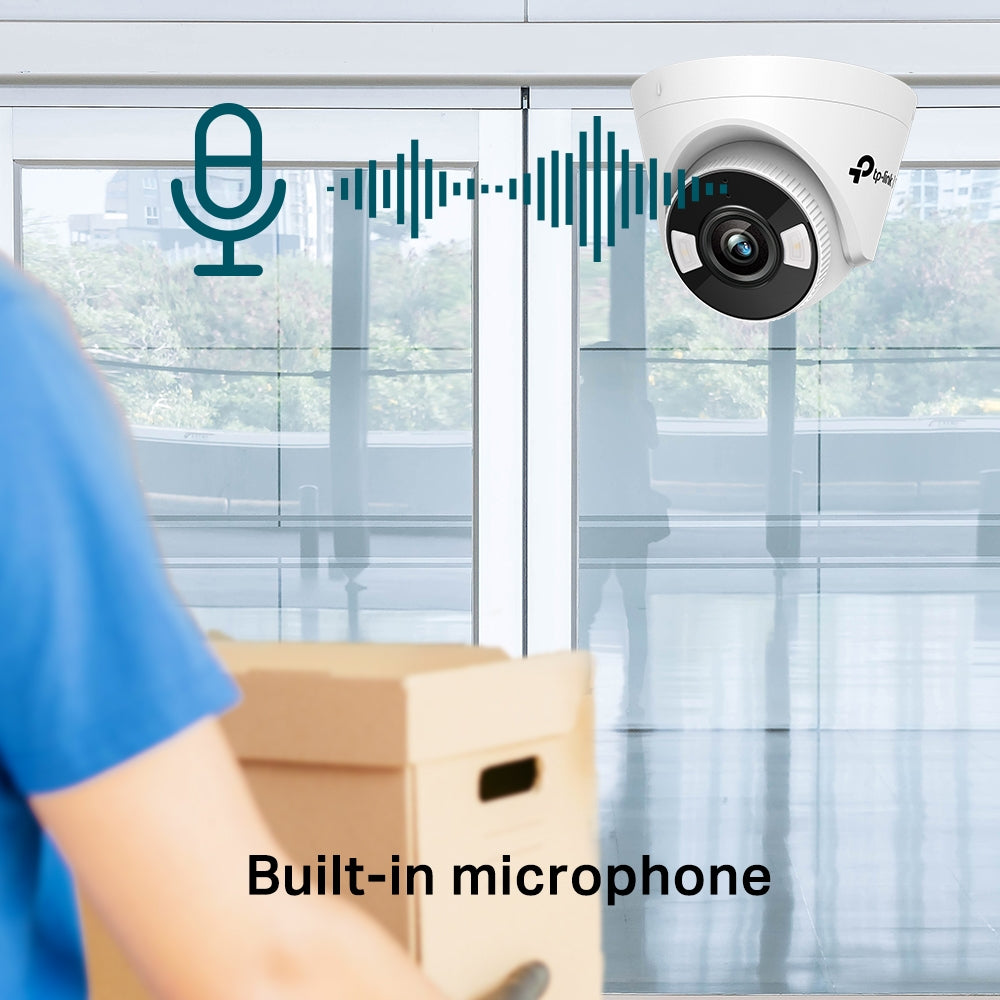

• Built-In Microphone — Records audio within a 15-ft radius of the camera.

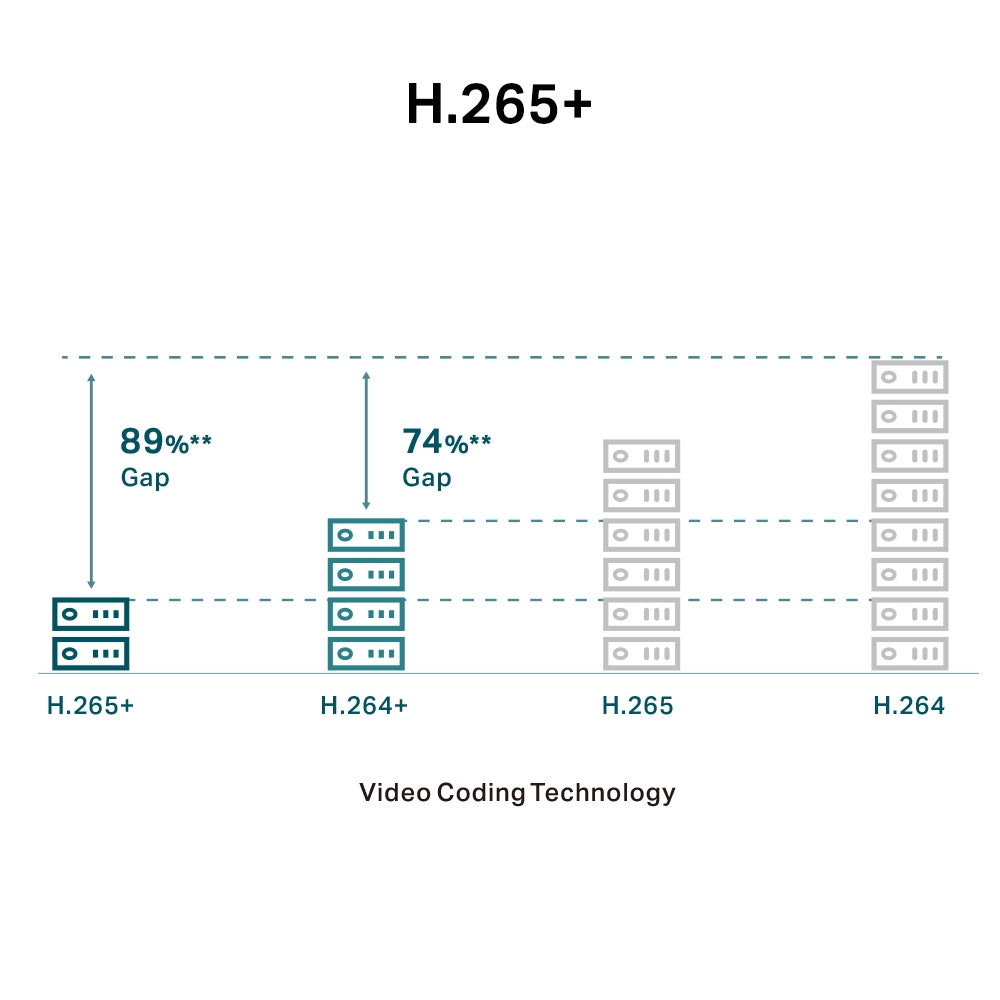

• H.265+ Compression — Transmits high-quality video while reducing bandwidth and storage usage.

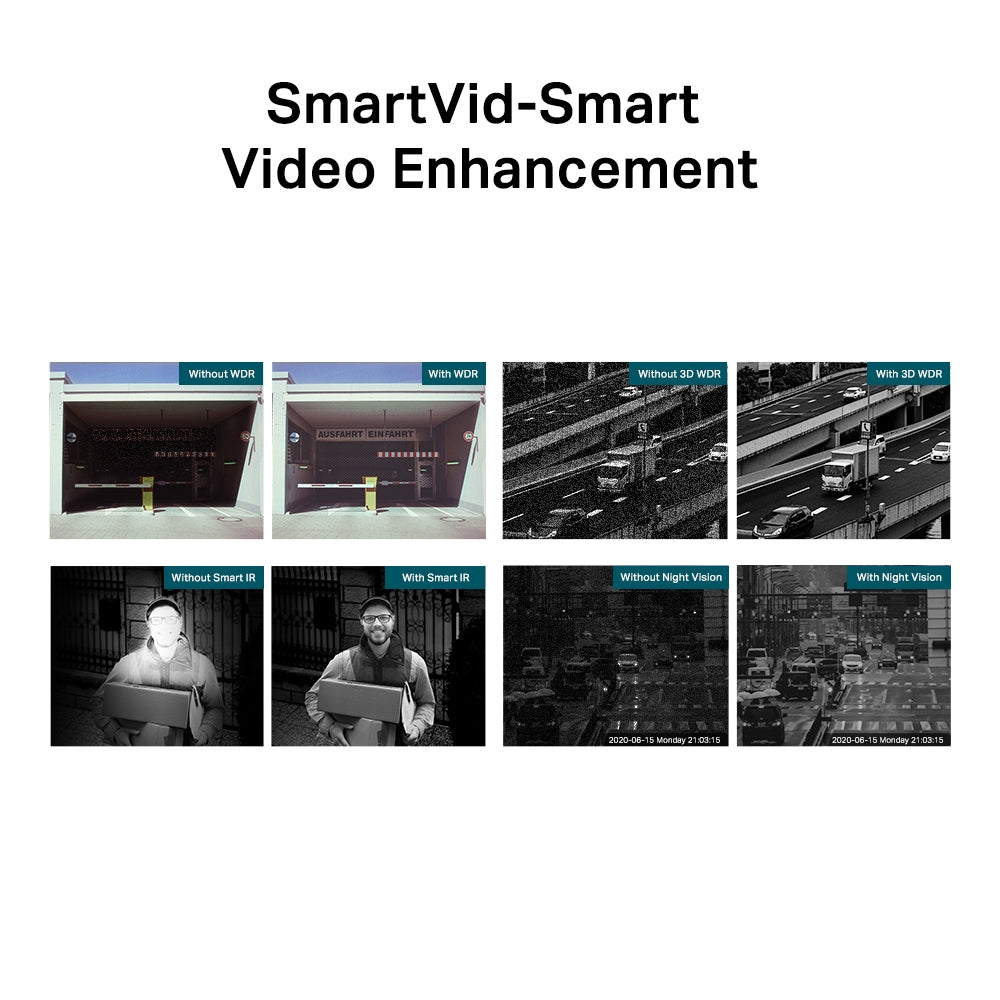

• Smart Video Enhancement — Technologies like Smart IR, WDR, 3D DNR, and Night Vision improve video clarity for effective monitoring.

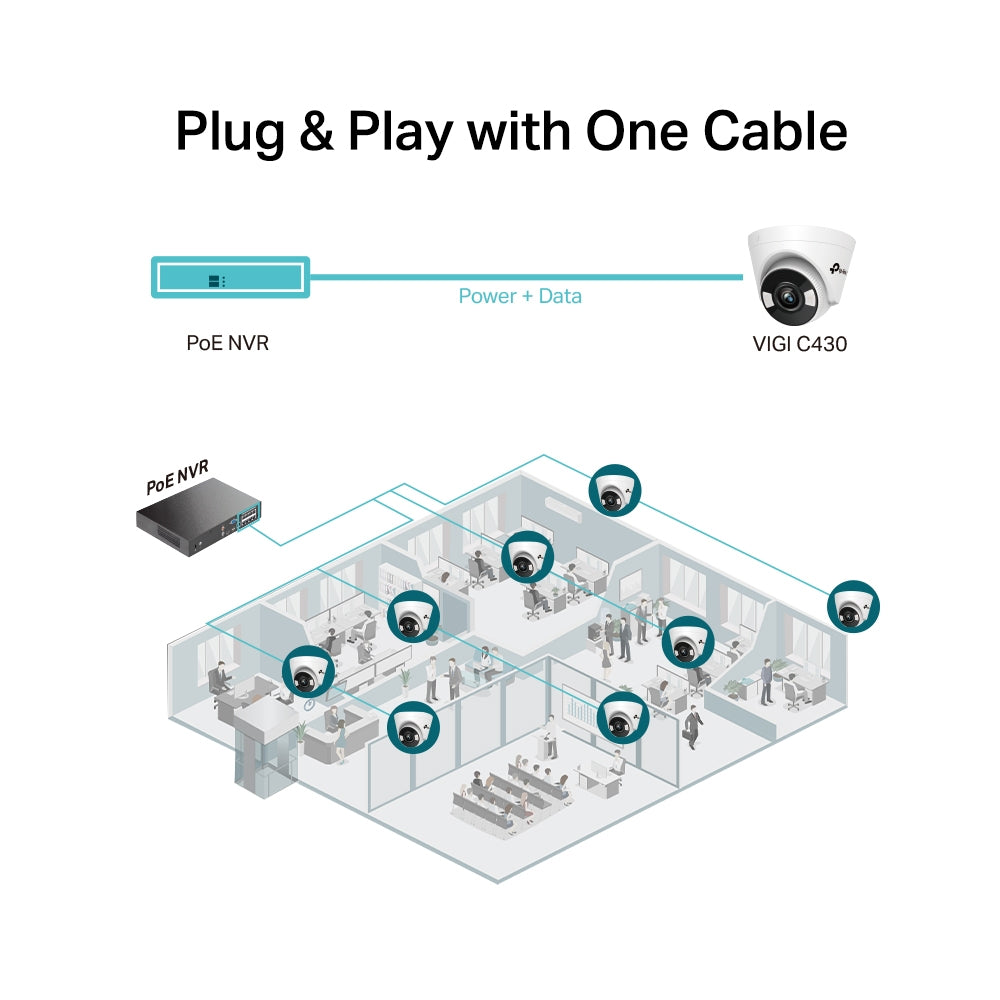

• PoE / 12V DC — Flexible power options make installation and wiring easier.
• Flexible Management — Control your security system via Web UI, NVR UI, VIGI App, or VIGI Security Manager.

Our goal is for every customer to be totally satisfied with their purchase. If this isn't the case, let us know and we'll do our best to work with you to make it right.

3-Year Warranty

We will work quickly to ship your order as soon as possible. Once your order has been shipped, you will receive an email with further information. Delivery times vary depending on your location.

Recommended Accessories

Section	Specification	Details
CAMERA	Image Sensor	1/2.8” Progressive Scan CMOS
	Shutter Speed	1/3 to 1/10000 s
	Slow Shutter	Yes
	Aperture	2.8 mm: F1.6; 4 mm: F1.6
	Lens	2.8 mm / 4 mm
	Lens Mount	M12
	Minimum Illumination	Color: 0.005 Lux; 0 Lux with IR/White Light
	Day/Night Mechanism	IR Cut Filter
	Day/Night Switch	Unified/ Scheduled/ Auto
	Digital Noise Reduction	3D DNR
	WDR	DWDR
	IR Working Distance	30m
	Viewing Angle	2.8mm: 107.5°/57.2°/128.7°(H/V/D); 4mm: 89.1°/45.1°/106.9°(H/V/D)
LENS	Type	Fixed Focal Lens
	Focal Length	2.8/4 mm
	Aperture	2.8 mm: F1.6; 4 mm: F1.6
	FOV	2.8mm: H:107.5°, V:57.2°, D:128.7°; 4mm: H:89.1°, V:45.1°, D:106.9°
	Lens Mount	M12
	DORI Distance	2.8 mm: Detect 52 m / Observe 22 m / Recognize 10 m / Identify 5 m; 4 mm: Detect 70 m / Observe 29 m / Recognize 14 m / Identify 7 m
	Angle Adjustment	Pan: 0° to 360°; Tilt: 0° to 85°; Rotate: 0° to 360°
ILLUMINATOR	IR LED	Quantity: 2; Range: 30m; Wavelength: 850nm
	White LED	Quantity: 2; Range: 30m
	Illuminator On/Off Control	Auto/Scheduled/Always on/Always off
VIDEO	Max. Resolution	2304 × 1296
	Main Stream Frame Rate	1fps, 5fps, 10fps, 15fps, 20fps, 25fps
	Main Stream Resolution	2304x1296, 2048x1280, 1920x1080, 1280x720
	Sub-Stream Frame Rate	1fps, 5fps, 10fps, 15fps, 20fps, 25fps
	Sub-Stream Resolution	704x576, 640x480, 352x288, 320x240
	Bit Rate Control	CBR, VBR
	Video Compression	Main: H.265+/H.265/H.264+/H.264; Sub: H.265/H.264
	H.264 Type	Main Profile/High Profile
	H.264+	Main Stream Supported
	H.265 Type	Main Profile
	H.265+	Main Stream Supported
	Video Bit Rate	Main Stream: 256 Kbps to 4 Mbps; Sub-Stream: 64 Kbps to 512 Kbps
IMAGE	Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable, Rotation(90°/270°)
	Image Enhancement	BLC/3D DNR/HLC/SmartIR
	Wide Dynamic Range	WDR
	SNR	≥ 52 dB
	Image Parameters Switch	Yes
	Privacy Mask	Up to 4 Masks
	ROI	1 Region
	OSD Setting	Yes
AUDIO	Audio Communication	N/A
	Audio Input	Yes
	Audio Output	N/A
	Audio Compression	Yes
	Audio Sampling Rate	8KHz
	Environment Noise Filtering	Yes
	Audio Bit Rate	64 Kbps (G.711 alaw)
NETWORK	Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
	ONVIF	Yes
	API	ONVIF
	Simultaneous Live View	3 Main Streams & 3 Sub-Streams
	Client	VIGI App, VIGI Security Manager, VIGI NVR, Web
	Web Browser	Chrome® 57+, Firefox® 52+, Safari® 11+, Edge 91+
	Cloud	Yes
	Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
ALARM AND EVENT MANAGEMENT	Smart Event	Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering/Exiting Detection, Object Abandoned/Removal Detection
	Basic Event	Motion Detection, Camera Tampering Detection, Exception (Illegal Login)
	Alarm Linkage	White Light Flashing, Message Push
	Linkage Method	N/A
	Output Notification	Message Push
INTERFACES	Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port
	Alarm	N/A
	Reset Button	N/A
	Power	DC Power Port / PoE (802.3af/at, class 0)
	Button	-
	Video Output	-
	On-board Storage	N/A
	Built-in Microphone	Yes
	Built-in Speaker	N/A
	Audio	N/A
GENERAL	Operating Temperature	-30–60 °C
	Storage Temperature	-40–60 °C
	Operating Humidity	95% or Less (Non-Condensing)
	Storage Humidity	95% or Less (Non-Condensing)
	Dimensions (H x W x D)	123 × 123 × 83 mm
	Material	Plastic
	General Features	Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
	Net Weight	0.21 Kg
	Gross Weight	0.36 Kg
	Max. Power Consumption	12V DC: Max 4.2W; PoE: Class 0
	Power Supply	12V DC ± 5%, 5.5mm Coaxial; PoE 802.3af/at, class 0
	Protection	N/A
	Product Dimensions (L x W x H)	123 × 83 × 123 mm
	Certifications	CE/BSMI/VCCI/ONVIF
VIDEO/IMAGE	Video Compression	Main Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264
	Frame Rate & Resolutions	Main Stream: 1–30fps, 2304x1296, 2048x1280, 1920x1080, 1280x720; Sub-Stream: 1–30fps, 704x576, 640x480, 352x288, 320x240
	Max. Resolution	3MP (2304 × 1296)
	Video Streaming	Main Stream / Sub-Stream
	Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable, Rotation(90°/270°)
	Image Enhancement	BLC/3D DNR/HLC/SmartIR
	Video Bit Rate	64 Kbps to 4 Mbps
	Day/Night Switch	Day/Night/Auto/Schedule
SMART FEATURE-SET	Smart Event	Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering/Exiting Detection, Object Abandoned/Removal Detection
	Basic Event	Motion Detection, Camera Tampering Detection, Exception (Illegal Login)
	Linkage Method	Trigger Notification: ONVIF, HTTPS
	Region of Interest	1 Region
