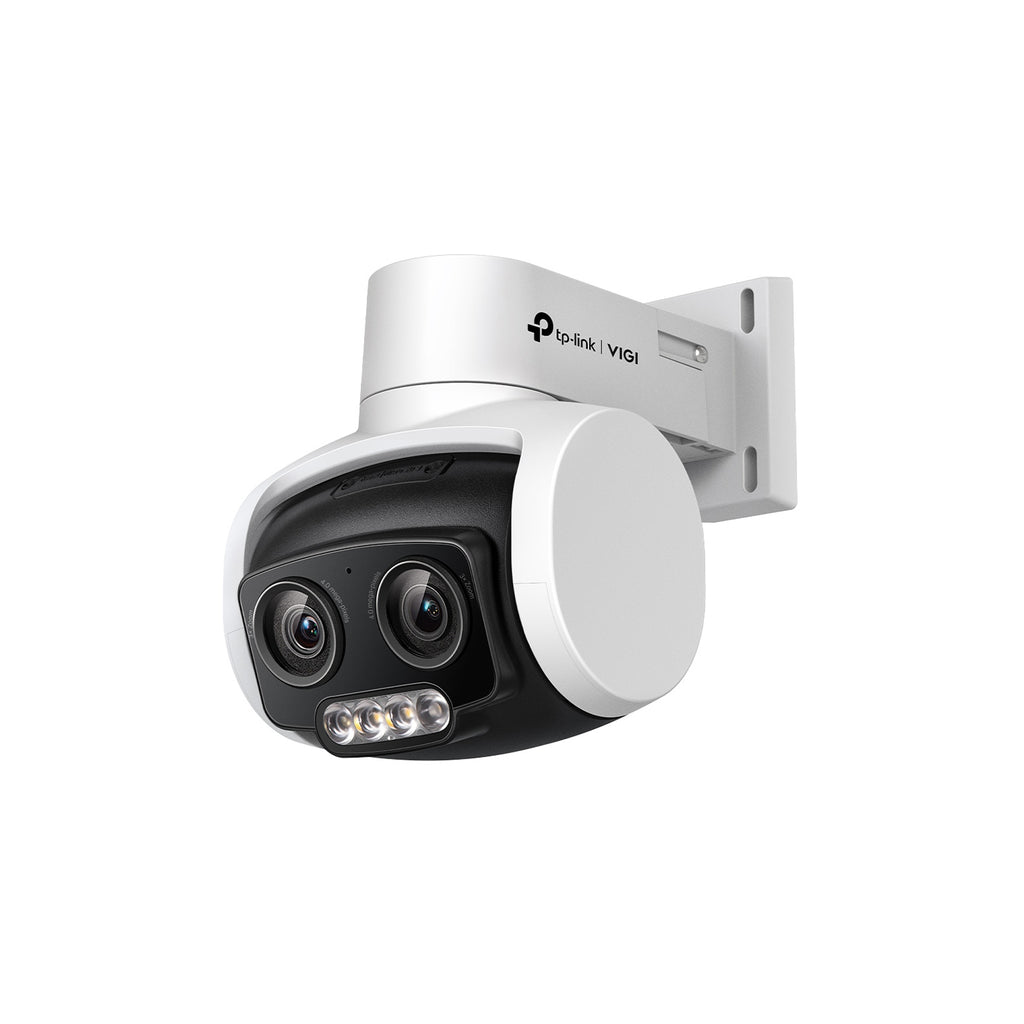

TP-Link VIGI C540V VIGI 4MP Outdoor Full-Color Dual-Lens Varifocal Pan Tilt Network Camera

₱6,490.00 PHP ₱7,789.00 PHP

1 left

About This Item

• 4MP Super-High Definition — 4MP resolution captures clear images with enough pixels to reveal finer details.

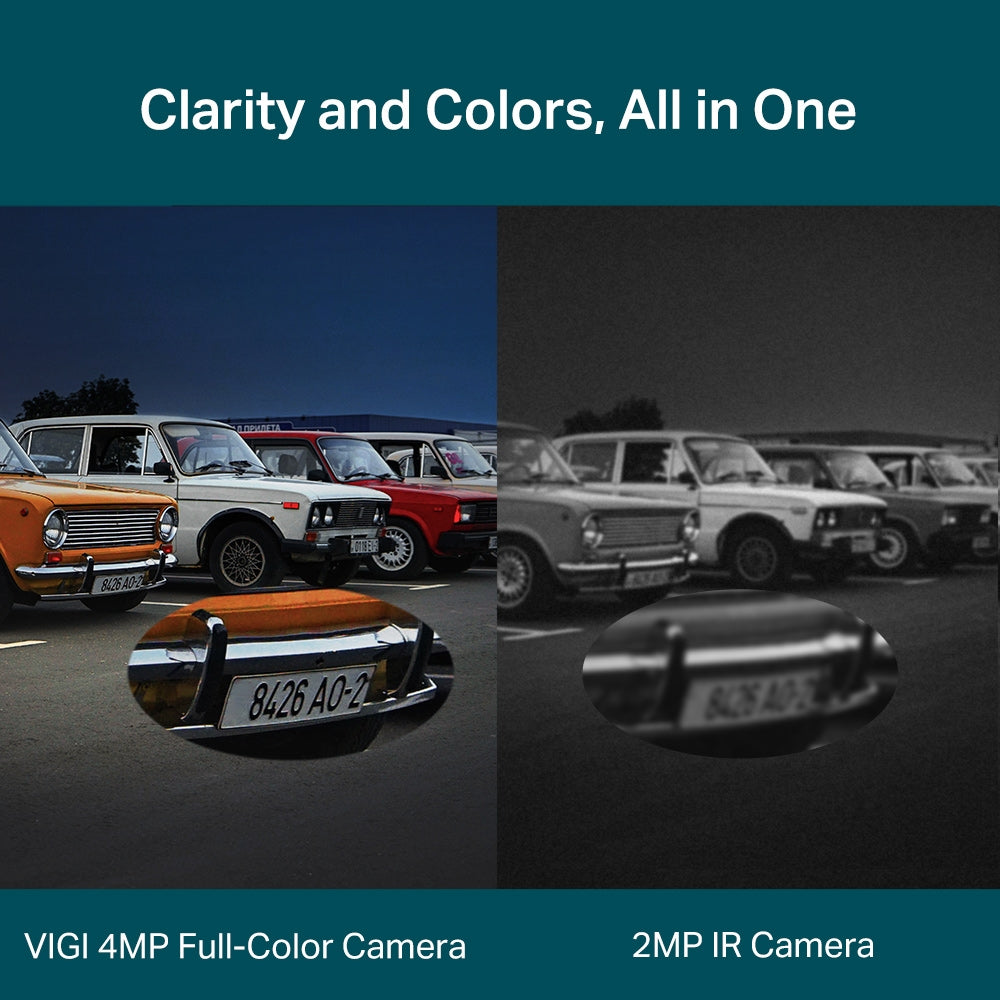

• 24h Full-Color — Records full-color footage day and night using a large-aperture lens, high-sensitivity sensor, and 4 supplemental lights.

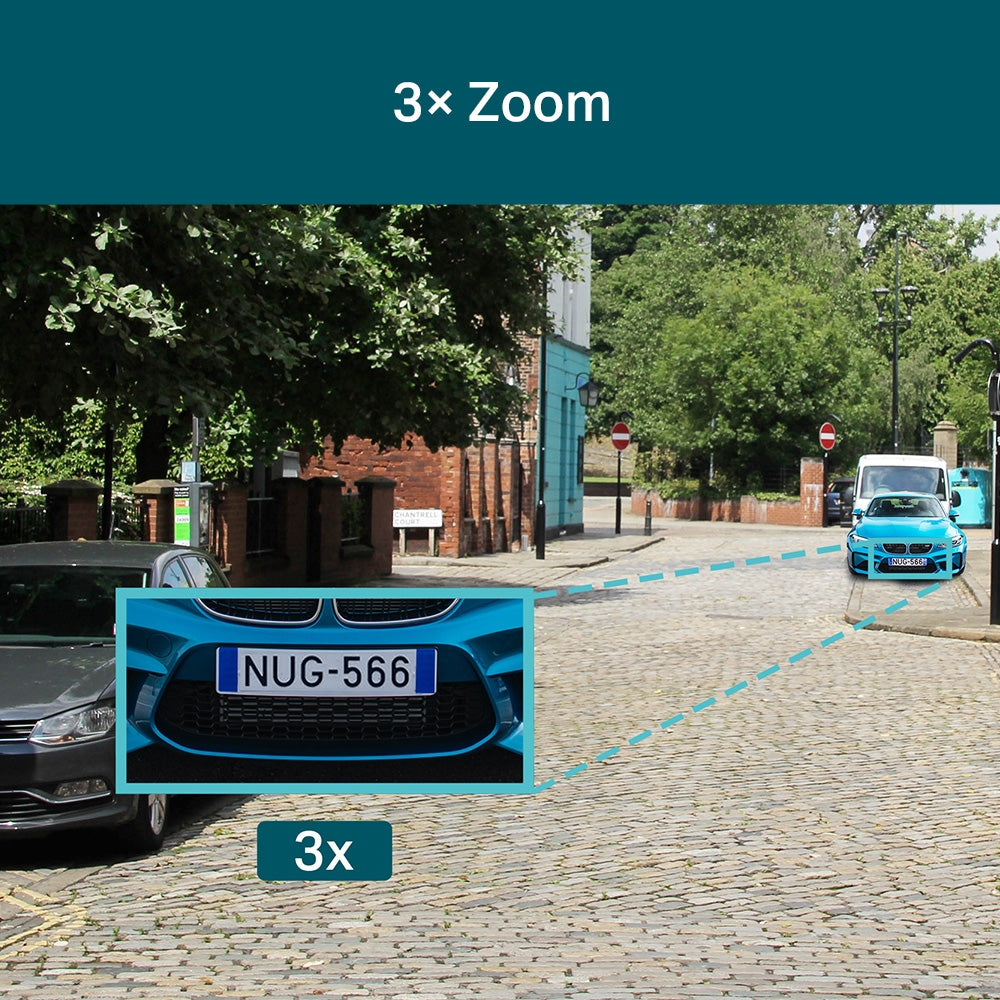

• 3× Zoom — Enables closer viewing of objects across wide or expansive areas.
• Instant Zoom — Provides smooth zooming without delays or image dragging.

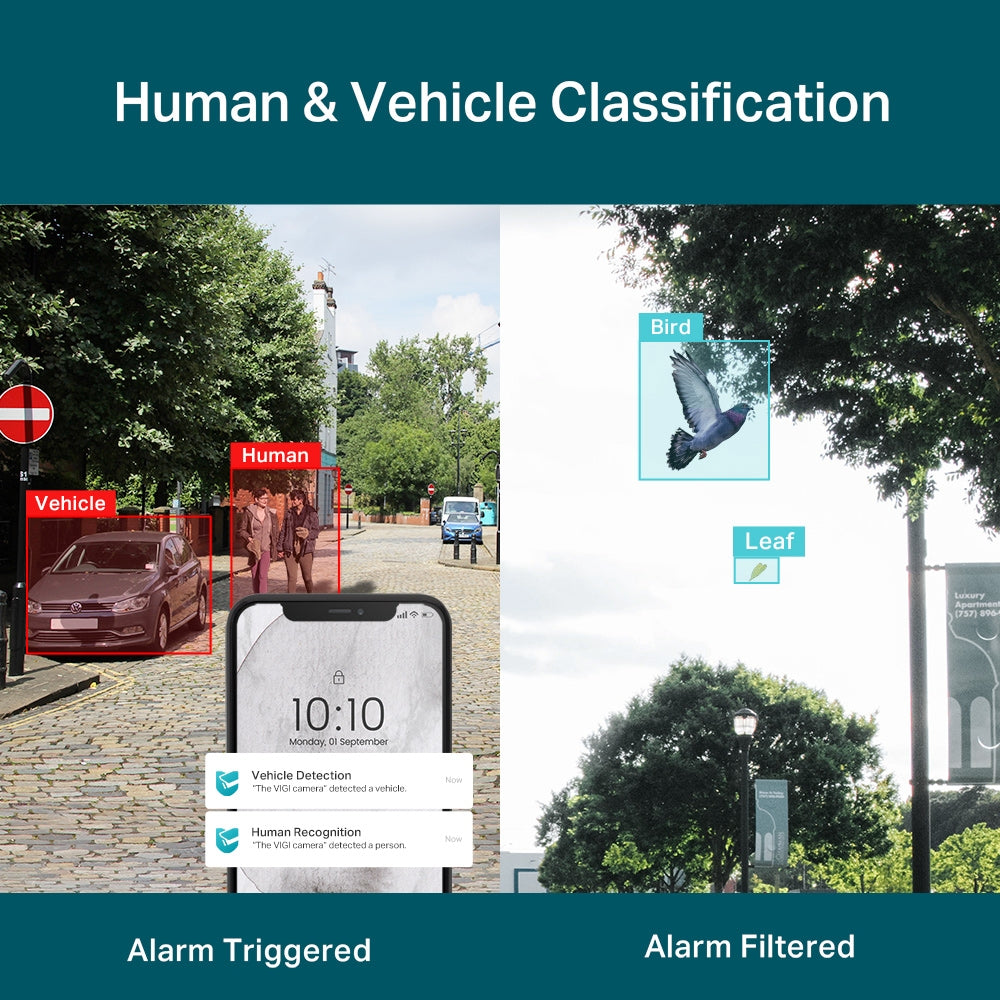

• Human & Vehicle Classification — Accurately distinguishes people and vehicles from other objects for more precise alerts.
• Smart Detection — Get notifications when someone crosses a boundary, enters a set area, blocks the camera, removes/abandons objects, or enters/exits a region.
• Powerful Pan Tilt — Custom patrol routes and auto tracking intelligently monitor important areas.
• Active Defense — Built-in sound and light alarms help deter potential intruders instantly.
• Two-Way Audio — Voice intercom allows real-time conversations while monitoring remotely.
• H.265+ Compression — Reduces video size without sacrificing quality, saving bandwidth and storage space.
• IP66 Waterproof — Durable design ensures stable and reliable outdoor performance.
• Flexible Management and Storage — Manage via Web UI, NVR UI, VIGI App, or VIGI Security Manager, with local storage support including an SD card slot up to 256GB.

Our goal is for every customer to be totally satisfied with their purchase. If this isn't the case, let us know and we'll do our best to work with you to make it right.

3-Year Warranty

We will work quickly to ship your order as soon as possible. Once your order has been shipped, you will receive an email with further information. Delivery times vary depending on your location.

Recommended Accessories

Section	Specification	Details
CAMERA	Image Sensor	1/3” Progressive Scan CMOS
	Shutter Speed	1/3 to 1/10000 s
	Slow Shutter	Yes
	Minimum Illumination	0.005 Lux; 0 Lux with IR/white light
	Day/Night Mechanism	IR Cut Filter
	Day/Night Switch	Unified/ Scheduled/ Auto
	Zoom	3x Mixed Zoom
LENS	Focal Length	4-12 mm (Mixed Zoom)
	Aperture	F1.6
	FOV	Diagonal FOV: 100°, Horizontal FOV: 84°, Vertical FOV: 46°
	Lens Mount	M12*P 0.5
	DORI Distance (4 mm)	Detect: 80 m (262 ft)
		Observe: 33 m (109 ft)
		Recognize: 16 m (52 ft)
		Identify: 8 m (26 ft)
	DORI Distance (8 mm)	Detect: 150 m (493 ft)
		Observe: 63 m (205 ft)
		Recognize: 30 m (98 ft)
		Identify: 15 m (49 ft)
PTZ	Pan/tilt Range	Pan: 0° to 332°, Tilt: 0° to 120°
	Pan Speed	Configurable from 8° to 44°/s; Preset Speed: 44°/s
	Tilt Speed	Configurable from 8° to 44°/s, Preset Speed 44°/s
	Manual Control Speed	Configurable from 8° to 35°/s
	Presets	300
	Patrol Scan	8 patrols, up to 8 presets for each patrol
	Power-off Memory	Yes; Auto restore to previous PTZ and lens status after power failure
	Park Action	Yes; Preset; Patrol Scan
	3D Positioning	Yes
	Angle Adjustment (Manual)	Pan: 0° to 332°, Tilt: 0° to 120°
ILLUMINATOR	IR LED	Quantity: 1
	IR Range	30m
	Wavelength	850nm
	White LED	Quantity: 3
	White LED Range	30m
	Illuminator Control	Auto/Scheduled/Always on/Always off
VIDEO	Max. Resolution	2560 X 1440
	Main Stream Frame Rate	50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
		60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
	Main Stream Resolution	2560x1440, 2304x1296, 2048x1280, 1920x1080,1280x720
	Sub-Stream Frame Rate	50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
		60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
	Sub-Stream Resolution	640x480, 352x288, 320x240
	Bit Rate Control	CBR, VBR
	Video Compression	Main Stream: H.265+/H.265/H.264+/H.264
		Sub-Stream: H.265/H.264
	H.264 Type	Main Profile/High Profile
	H.264+	Main Stream Supported
	H.265 Type	Main Profile
	H.265+	Main Stream Supported
	Video Bit Rate	Main Stream: 256 Kbps to 4 Mbps
		Sub-Stream: 64 Kbps to 512 Kbps
IMAGE	Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
	Image Enhancement	BLC/3D DNR/HLC/SmartIR
	Wide Dynamic Range	DWDR
	SNR	≥ 52 dB
	Image Parameters Switch	Yes
	Privacy Mask	Up to 4 Masks
	ROI	1 Region
	OSD Setting	Yes
AUDIO	Audio Communication	Two-Way Audio
	Audio Input	Yes
	Audio Output	Yes
	Audio Compression	Yes
	Audio Sampling Rate	8KHz
	Environment Noise Filtering	Yes
	Audio Bit Rate	64 Kbps(G.711 alaw)
NETWORK	Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
	ONVIF	Yes
	API	Open Network Video Interface (Profile S)
	Simultaneous Live View	3 Main Streams & 3 Sub-Streams
	Client	VIGI App, VIGI Security Manager, Web UI
	Web Browser	Google Chrome® 57 and above
		Firefox® 52 and above
		Safari® 11 and above
		Microsoft® Edge 91 and above
	Cloud	Yes
	Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
ALARM AND EVENT MANAGEMENT	Smart Event	Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
	Basic Event	Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
	Alarm Linkage	Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
	Linkage Method	N/A
	Output Notification	Message Push
INTERFACES	Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
	Alarm	N/A
	Reset Button	Yes
	Power	DC Power Port
	On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB
	Built-in Microphone	Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
	Built-in Speaker	Yes
GENERAL	Operating Temperature	-30–60 °C
	Storage Temperature	-40–60 °C
	Operating Humidity	95% or Less (Non-Condensing)
	Storage Humidity	95% or Less (Non-Condensing)
	Material	Plastic
	Net Weight	0.43 Kg
	Gross Weight	0.66 Kg
	Power Supply	12V DC ± 5%, Max. 14 W, 5.5mm Coaxial Power Plug
	PoE	802.3at, class 4, Max. 16 W
	Protection	IP66
	Product Dimensions (L x W x H)	107× 136× 139 mm
	Certifications	CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC
