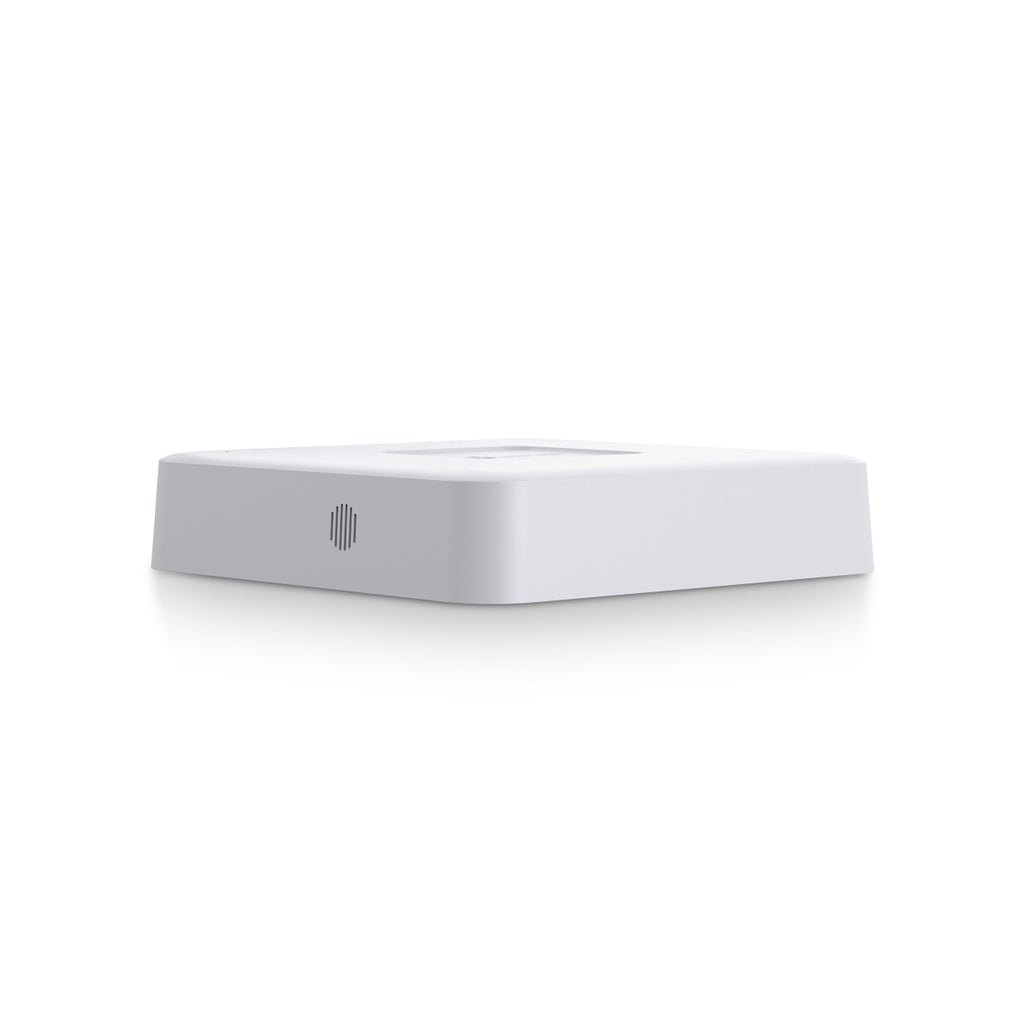

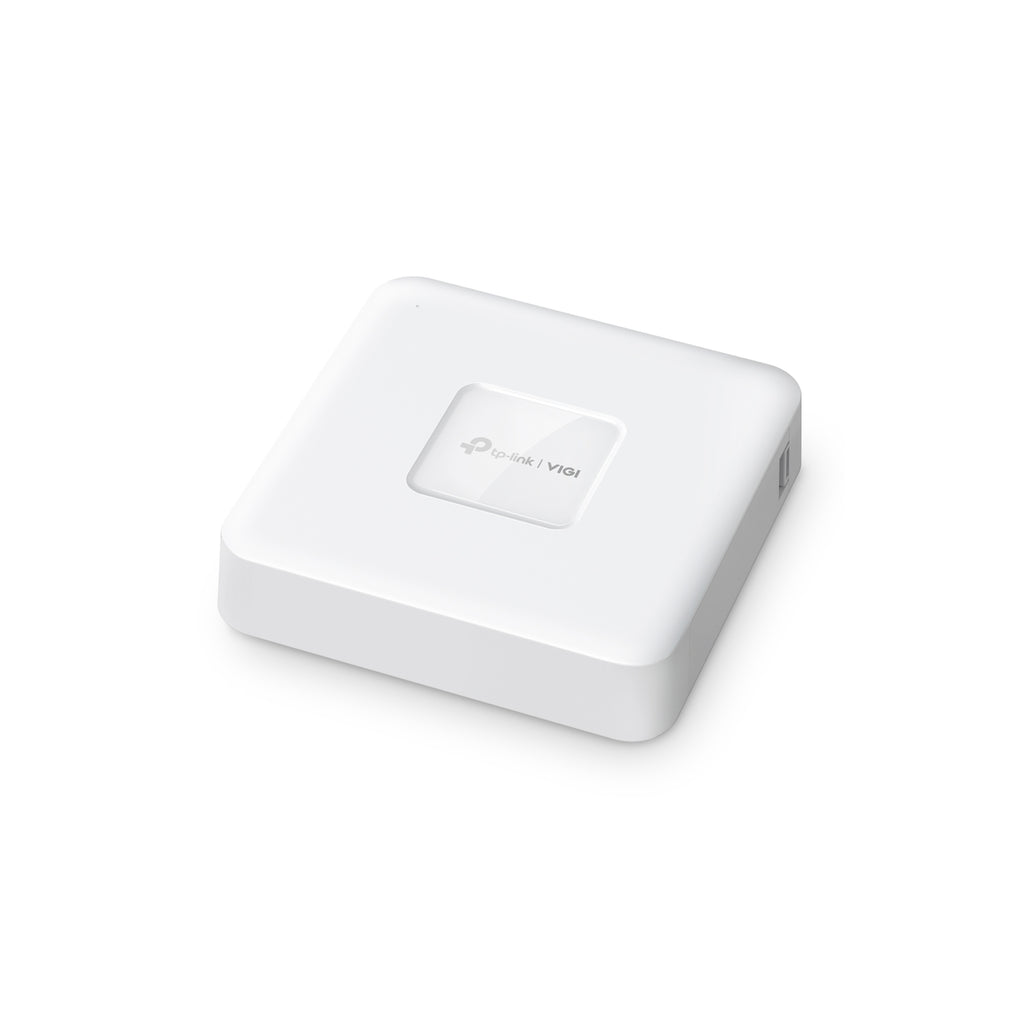

TP-Link VIGI NVR1104H-4P 4 Channel PoE+ Network Video Recorder

TP-Link VIGI NVR1104H-4P 4 Channel PoE+ Network Video Recorder

Sale price  ₱4,690.00 PHP Regular price  ₱5,629.00 PHP
Skip to product information
TP-Link VIGI NVR1104H-4P 4 Channel PoE+ Network Video Recorder

TP-Link VIGI NVR1104H-4P 4 Channel PoE+ Network Video Recorder

Sale price  ₱4,690.00 PHP Regular price  ₱5,629.00 PHP
1 left

About This Item

• 4K HDMI Video Output & 16MP Decoding Capacity: Sharp image definition up to 8MP and a 4-channel display ensures you capture every detail, from every angle‡.
• Simplified Deployment with PoE+: Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed.
• Simple HDD Installation†: Install and remove the HDD manually with easy side access.
• 4-Channel Simultaneous Playback△ : Replay the feed from up to 4 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
• H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
• ONVIF Ensures Compatibility*: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
• Plug & Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
• 24/7 Continuous Recording: Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access.
• Remote Monitoring: The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience.
• Built-In Speaker: Enjoy real-time audio output without needing peripherals for greater convenience.
• Flexible Installation: Choose the suitable installation method by simply mounting your NVR on the wall, or placing it on or under a desk.

Return policy

Our goal is for every customer to be totally satisfied with their purchase. If this isn't the case, let us know and we'll do our best to work with you to make it right.

Warranty

3-Year Warranty

Shipping

We will work quickly to ship your order as soon as possible. Once your order has been shipped, you will receive an email with further information. Delivery times vary depending on your location.

Recommended Accessories

Category Specification
NETWORK
Protocol TCP/IP, DHCP, DNS, NTP, UPnP
Incoming Bandwidth 80 Mbps
Outgoing Bandwidth 60 Mbps

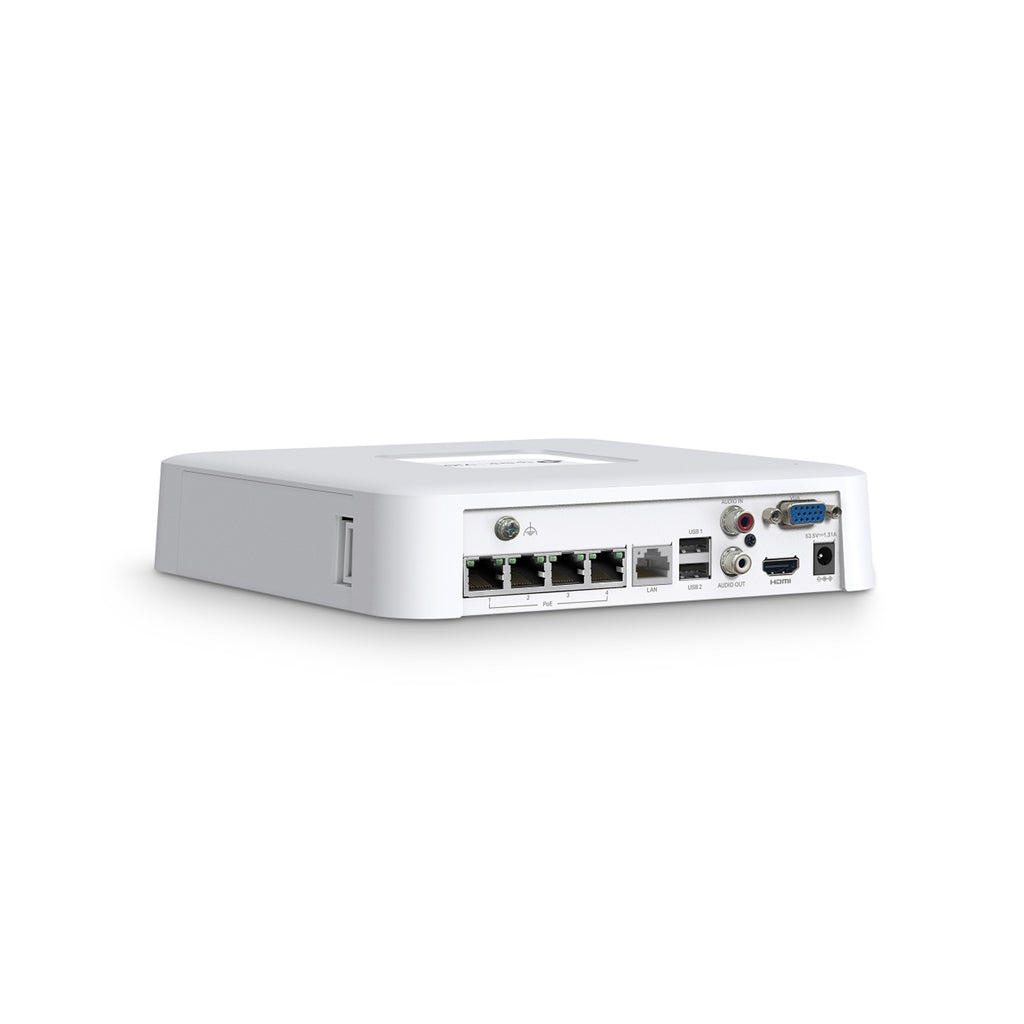

INTERFACES
Network Interface 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
USB Interface 2 × USB 2.0
GENERAL
Operating Temperature -10–55 °C
Dimensions (W × D × H) 200.3 × 200.3 × 43 mm
PoE Standard: 802.3af/at; Ports: 1–4; PoE Budget: 53 W
External Power Supply 53.5V DC / 1.31 A
Power Consumption 4.82 W (without disk)
VIDEO / IMAGE
Video Input 4-Channel IP Video Input, up to 8 MP Resolution
Recording Resolution 8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
HDMI Output Resolution 1 Channel, Resolution: 3840×2160/30Hz, 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1024×768/60Hz, 1280×720/60Hz
VGA Output Resolution 1 Channel, Resolution: 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1024×768/60Hz, 1280×720/60Hz
DECODING
Decoding Format H.265+ / H.265 / H.264+ / H.264
Live View / Playback Resolution 8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Synchronous Playback 4-Channel
Capability 2-ch @ 8 MP, 4-ch @ 4 MP
HARD DISK
SATA 1 SATA Interface
Capacity Up to 10 TB
  • VIGI Network Video Recorder
  • Power Adapter
  • HDD Screws
  • Mouse
  • Quick Installation Guide
