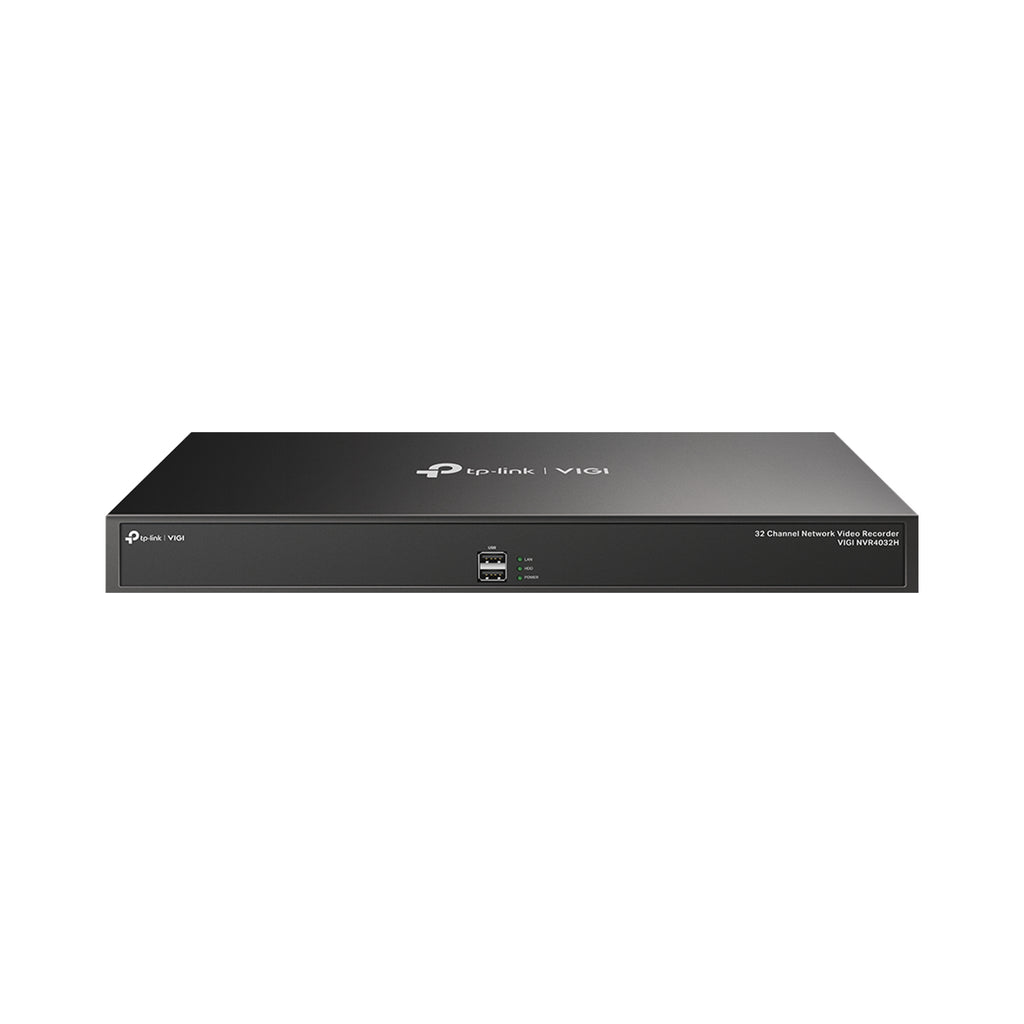

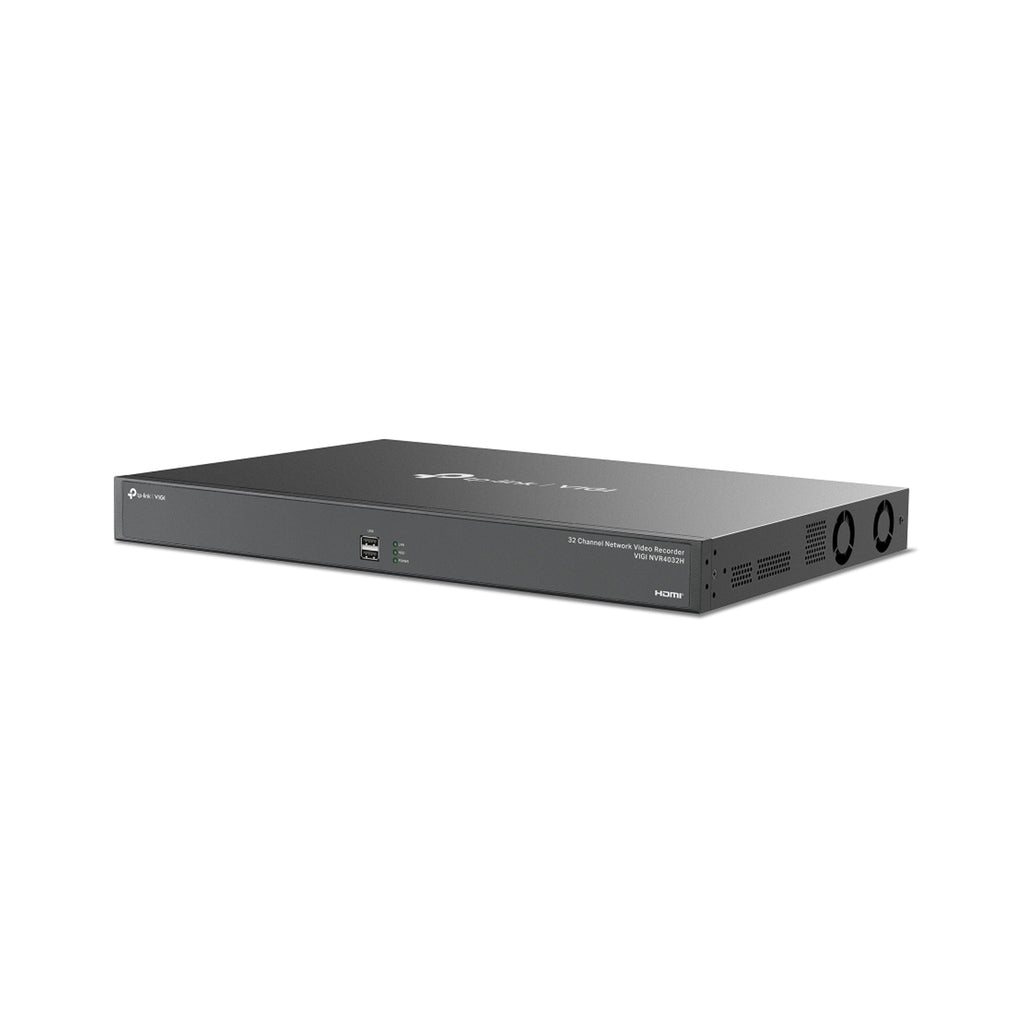

TP-Link VIGI NVR4032H 32 Channel Network Video Recorder

Name: TP-Link VIGI NVR4032H 32 Channel Network Video Recorder
Brand: TP-Link
SKU: VIGI NVR4032H
Price: 15990.00 PHP
Availability: InStock

₱15,990.00 PHP ₱19,189.00 PHP

1 left

About This Item

• Face Recognition: Enhances access management and maximizes security.
• Smart Search by Motion and Object: Quickly find target footage for improved playback efficiency.
• H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
• 320 Mbps Incoming and Outgoing Bandwidth: Ensures your NVR manages more cameras with high resolutions.
• Mass Storage: Supports 4× SATA, up to 10 TB each
• 16-ch@2MP/ 8-ch@4MP Decoding Capacity†: Allows you to enjoy more channels, live view, and playback at the same time.
• 1 HDMI and 1 VGA Interface: Supports independent video output.
• 16-Channel Simultaneous Playback: Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
• Plug & Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
• Remote Monitoring: The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience.
• Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.
• ONVIF Ensures Compatibility: Easily adds IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.

Our goal is for every customer to be totally satisfied with their purchase. If this isn't the case, let us know and we'll do our best to work with you to make it right.

3-Year Warranty

We will work quickly to ship your order as soon as possible. Once your order has been shipped, you will receive an email with further information. Delivery times vary depending on your location.

Recommended Accessories

Category	Specification
VIDEO AND AUDIO
IP Video Input	32-Channel
Incoming Bandwidth	320 Mbps
Outgoing Bandwidth	320 Mbps
HDMI Output Resolution	1 Channel, Resolution: 3840×2160/30Hz, 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
VGA Output Resolution	1 Channel, Resolution: 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
Video Output Mode	HDMI/VGA Independent Output
Multi-View Display	1 / 4 / 6 / 8 / 9 / 16 / 25 / 32 / 36
DECODING
Audio Compression	G.711A / G.711U / G.726
Decoding Format	H.265+ / H.265 / H.264+ / H.264
Video Compression	H.265+ / H.265 / H.264+ / H.264
Record Resolution	8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Live View / Playback Resolution	8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Synchronous Playback	16-Channel
Capability	16-ch @ 1080p (30 fps), 8-ch @ 4MP (30 fps), 4-ch @ 8MP (30 fps)
RECORD MANAGEMENT
Record Mode	Manual Recording, Scheduling Recording, Motion Detection Recording
Playback Mode	Instant Playback, Regular Playback, Tag Playback, Event Playback
Backup Mode	Regular Backup, Video Clip Backup
Playback Function	Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off
NETWORK
Protocol	UPnP (Plug and Play), NTP (Network Timing)
Mobile Phone Access	Android, iOS
Incoming Bandwidth	320 Mbps
Outgoing Bandwidth	320 Mbps
Web Browser	Chrome (57+), Firefox (52+), Edge (91+)
Interoperability	ONVIF, CGI

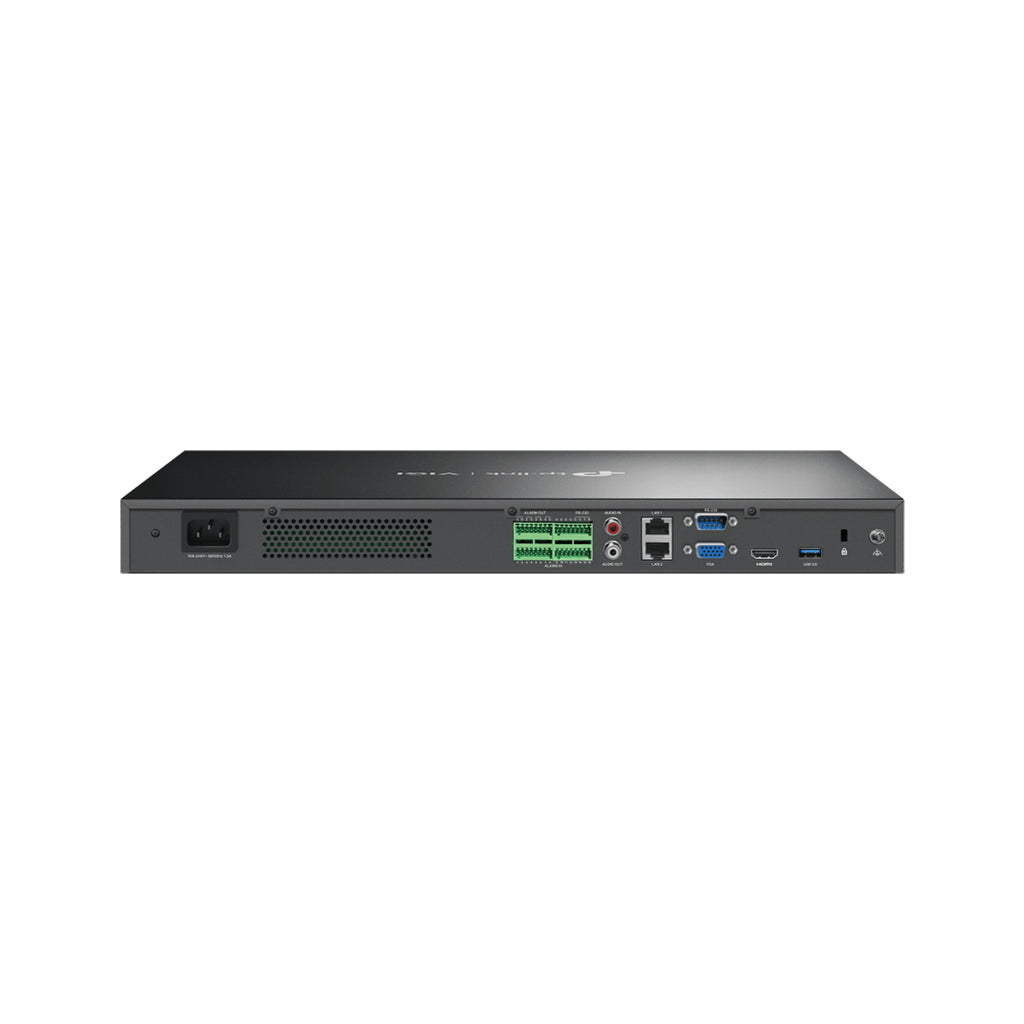

EXTERNAL INTERFACE
Network Interface	2 × RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interfaces
USB Interface	USB Interface
Audio Interface	1 Audio In; 1 Audio Out
Alarm In/Out	16 / 4
Serial Interface	1 × RS232
Power	1 × AC Jack
Reset Button	1
Speaker	N/A
eSATA	N/A
HDMI	1
VGA	1
HARD DISK
SATA	4 SATA Interfaces
Capacity	Up to 10 TB for Each HDD
ALARM
General Alarm	Motion Detection, Video Tampering, Intrusion Detection, Line-Crossing Detection
Anomaly Alarm	Video Loss, Offline & IP Conflict, Disk Exception, Login Exception, Fan Exception
Alarm Linkage	Recording, White Light Alarm, Buzzer, Log, Audible Alarm
NETWORK MANAGEMENT
Network Protocols	UPnP (Plug and Play), NTP (Network Timing)
Interoperability	ONVIF, CGI
Mobile Phone Access	Android, iOS
Browser	Chrome (57+), Firefox (52+), Edge (91+)
GENERAL
Storage Temperature	-40–70 °C
Storage Humidity	10%–90% RH Non-Condensing
Package Contents	VIGI Network Video Recorder, Mouse, Installation Guide, Power Cord, HDD Power/Data Cables, Terminal Blocks, Mounting Brackets, Screws, Rubber Feet
Working Temperature	-10–55 °C
Working Humidity	10%–90% RH Non-Condensing
Dimensions (W × D × H)	440 × 330 × 44 mm
External Power Supply	100–240 VAC, 50–60 Hz, 1.5 A
Net Weight	4.0 Kg
Gross Weight	5.2 Kg
Power Consumption	5 W (Without Disk), 48 W (With Disk)
Certifications	CE, EAC, UKCA, RCM, Triman, RoHS, VCCI, FCC, IC, HDMI
VIDEO / IMAGE
IP Video Input	32-Channel
Multi-View Display	1 / 4 / 6 / 8 / 9 / 16 / 25 / 32 / 36
Video Output Mode	HDMI/VGA Independent Output
Recording Resolution	8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
HDMI Output Resolution	1 Channel, Resolution: 3840×2160/30Hz, 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
VGA Output Resolution	1 Channel, Resolution: 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
